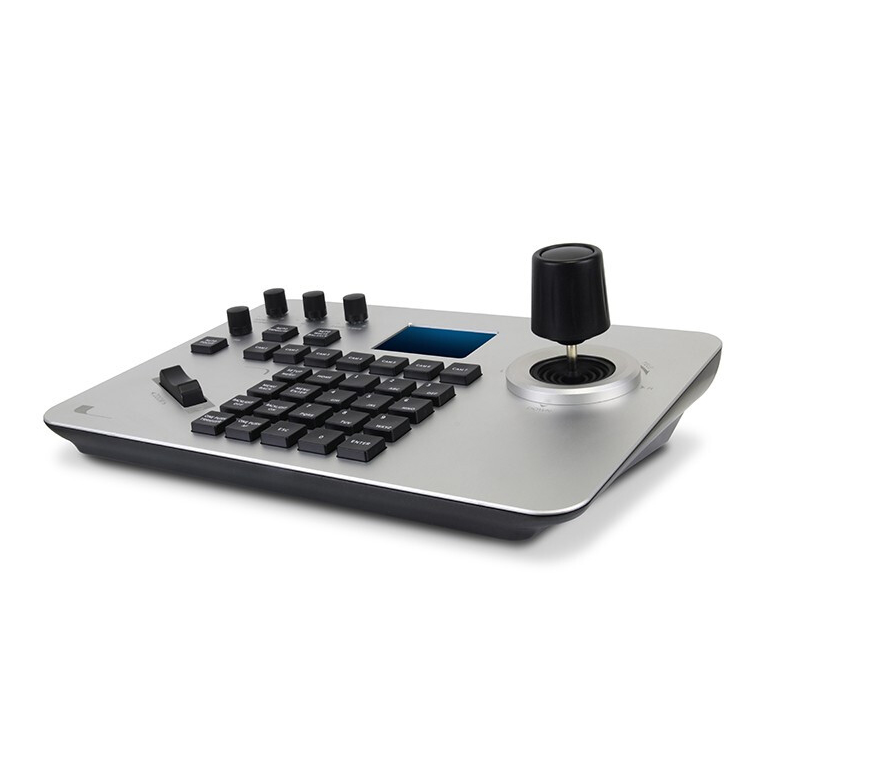

IP PTZ Camera Joystick Keyboard Controller RJ45
Key Features
1. Supporting ONVIF, RTSP, RTMP, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.

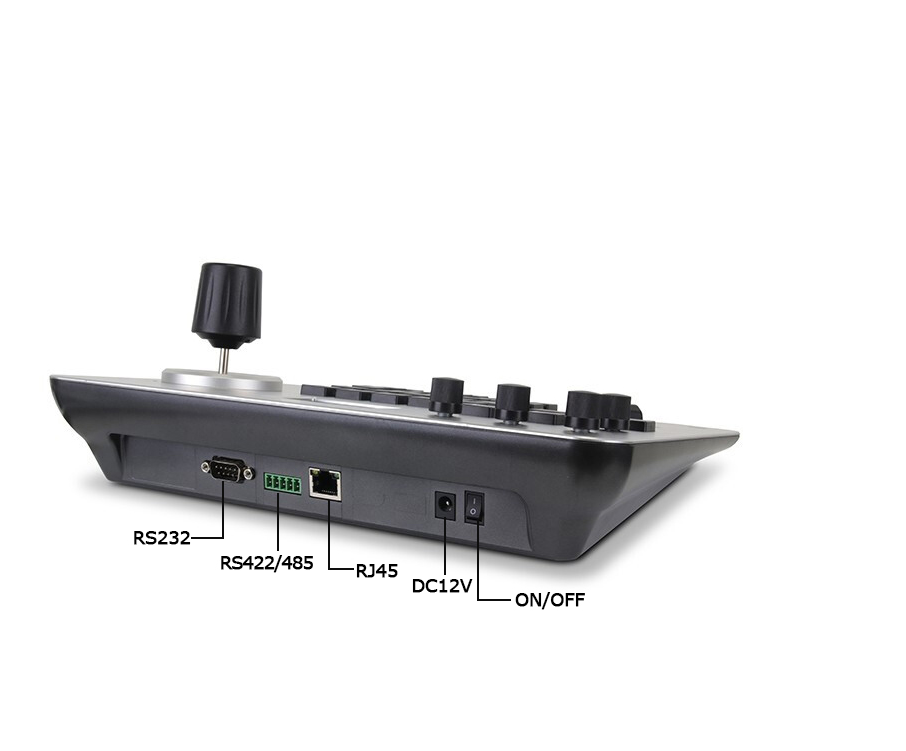

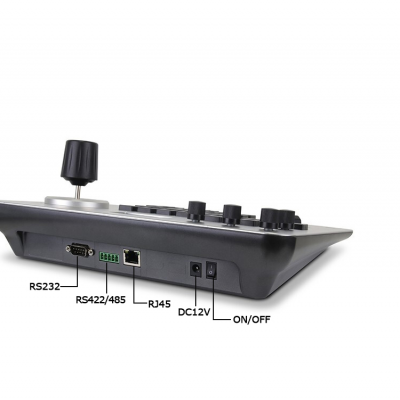

2. RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras.
3. Unique control code learning function allows customers to modify the control code instructions
4. Any device on the RS485 bus can be individually configured with different protocols and baud rates.
5. All camera parameters can be set through the button operation.
6. Metal shell, silicone key design.
7. LCD display, keypad sound prompt, real-time display decoder and matrix working status.
8. 4D joystick allows variable speed control to cameras
9. Maximum communication distance: 1200M (0.5MM Twisted-Pair Cable)
Unique control code learning function allows customers to modify control code commands by themselves;
Any device on the RS485 bus can individually set different protocols and baud rates;

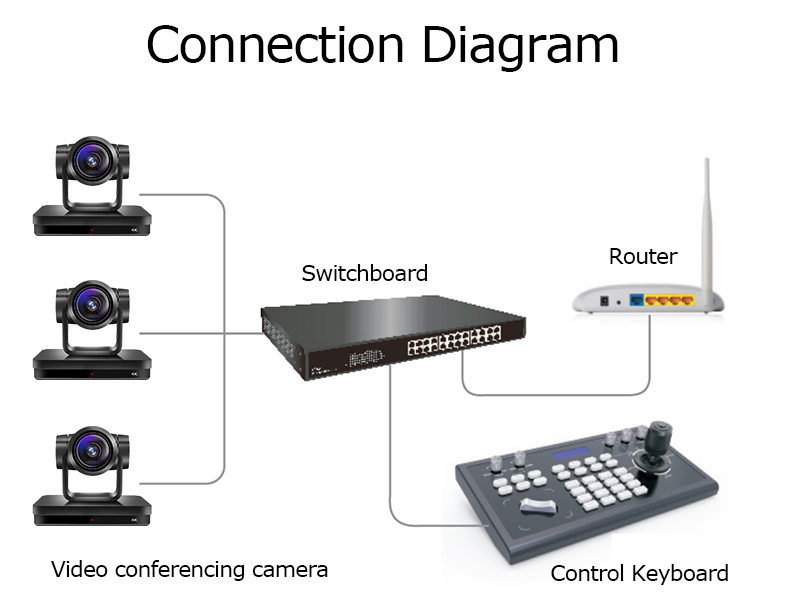

RS485 control bus, can control up to 255 front-end addresses, and up to 128 devices in parallel at the same time;
All input and output interfaces adopt lightning protection design, with strong anti-interference ability, and the standard
transmission distance is 1200 meters;
Up to 15 keyboards can be connected to the cascade port;
Special standard SONY VISCA protocol 9600bps, 19200bps;
Keyboard operation password lock function;
7pcs of conference machines with cascade control function.
Specification
Monitor control: 1-99
Camera control: 1-1024
Joystick: three-dimensional (left/right, up/down, zoom)
Connection: 7 sets of D70 cascade control function
Lens function: Aperture: On/Off Focus: Near/Far Zoom: Wide/Telephoto
Camera peripherals: Defrost: on/off, wiper: on/off, auxiliary switch 1: on/off, auxiliary switch
PTZ control: up/down left/right, scan limit setting, automatic scan, pattern scan, automatic cruise
Preset point control: save/adjust preset position, preset position parameter setting, guard
Alarm operation: arm/disarm position, status query display, alarm record
DVR control: Control number: 99 sets; Control protocol: can be written according to customer requirements
Control protocol: SONY VISCA
Communication interface: Type: RS-422 and RS-485 rate 9600bps, 19200bps
Environmental conditions: Temperature: -10℃ to +50℃,
Humidity: ≤90% (no condensation)
Power source: DC12V
Work rate: 5W
size: 380mm (W) x 48mm (H) x 60mm (D)
Pack size: 43x10x15cm
weight: 2kg

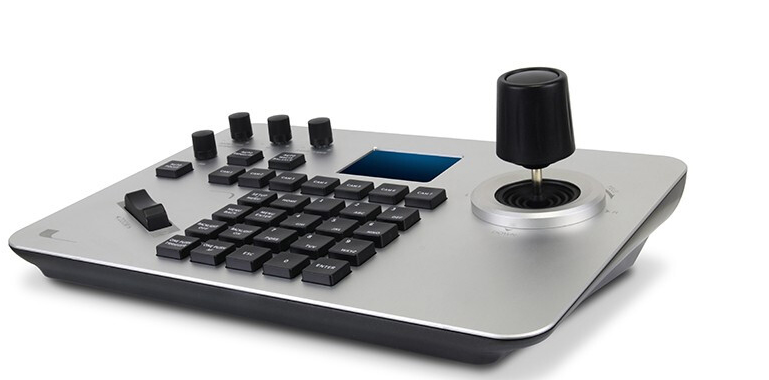

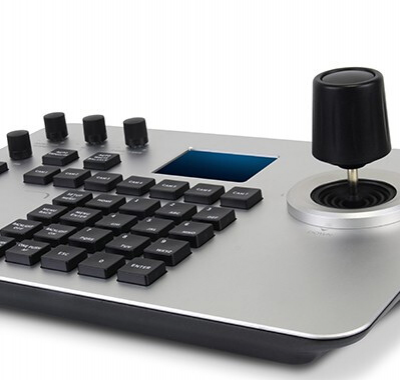

Detailed Features of IP 4D Joystick Controller

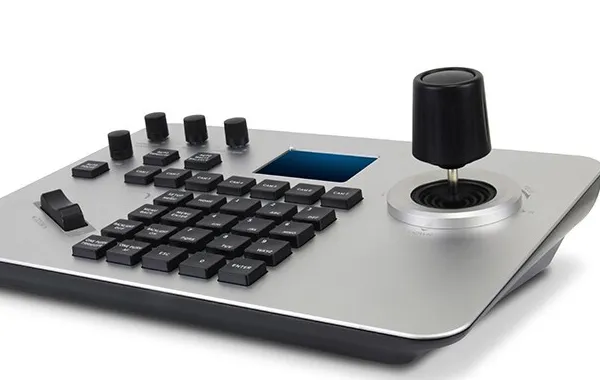

Aluminum alloy shell, six-dimensional combination rocker, LCD blue
liquid crystal display, 28 buttons, two-color button backlight.
For monitoring system control, it can operate and control the monitoring terminal equipment of cameras, hard disk video recorders
(DVR), and personal computers.
Controllable equipment:
High-speed ball: PELCO (Pelco), Panasonic (Panasonic), AD (Tyco), Samsung (Samsung), VISCA (Sony)
Hard disk video recorders: Hikvision, Dahua, Dali, Hanbang
Personal computer control terminal: USB2.0 (with this keyboard drive)
Joystick: six-axis, lens control function on the handle, jog shuttle frame release function, cursor movement function
Press the key: 28 keys, rubber + micro-motion keys, 1 million times life
Display: LCD screen, 20X2 English characters, blue backlight
Simple operation method:
Clear the display to 0: press and hold the "0" key for 2 seconds
Switch camera: digital + CAM
Switch DVR: digital + DVR
Switch from DVR to CAM: CAM or "digital + CAM"
Switch from CAM to DVR: DVR or "digital + DVR"
Call preset position: number + PRESET
Quickly call preset positions: Turn the shuttle on the combined control lever to call the preset positions 1-9
Set preset position: number + SET
Delete preset position: number + DEL
Call a tour: TOUR or "number + TOUR"
Invoke a scan: SCAN or "digital + SCAN"
Running pattern learning: number + RUN
Storage pattern learning: number + SAVE
Stop pattern learning: number + PAUSE
Auxiliary equipment on: digital + ON
Auxiliary equipment off: digital + OFF
Open the camera menu: MENU→8888
