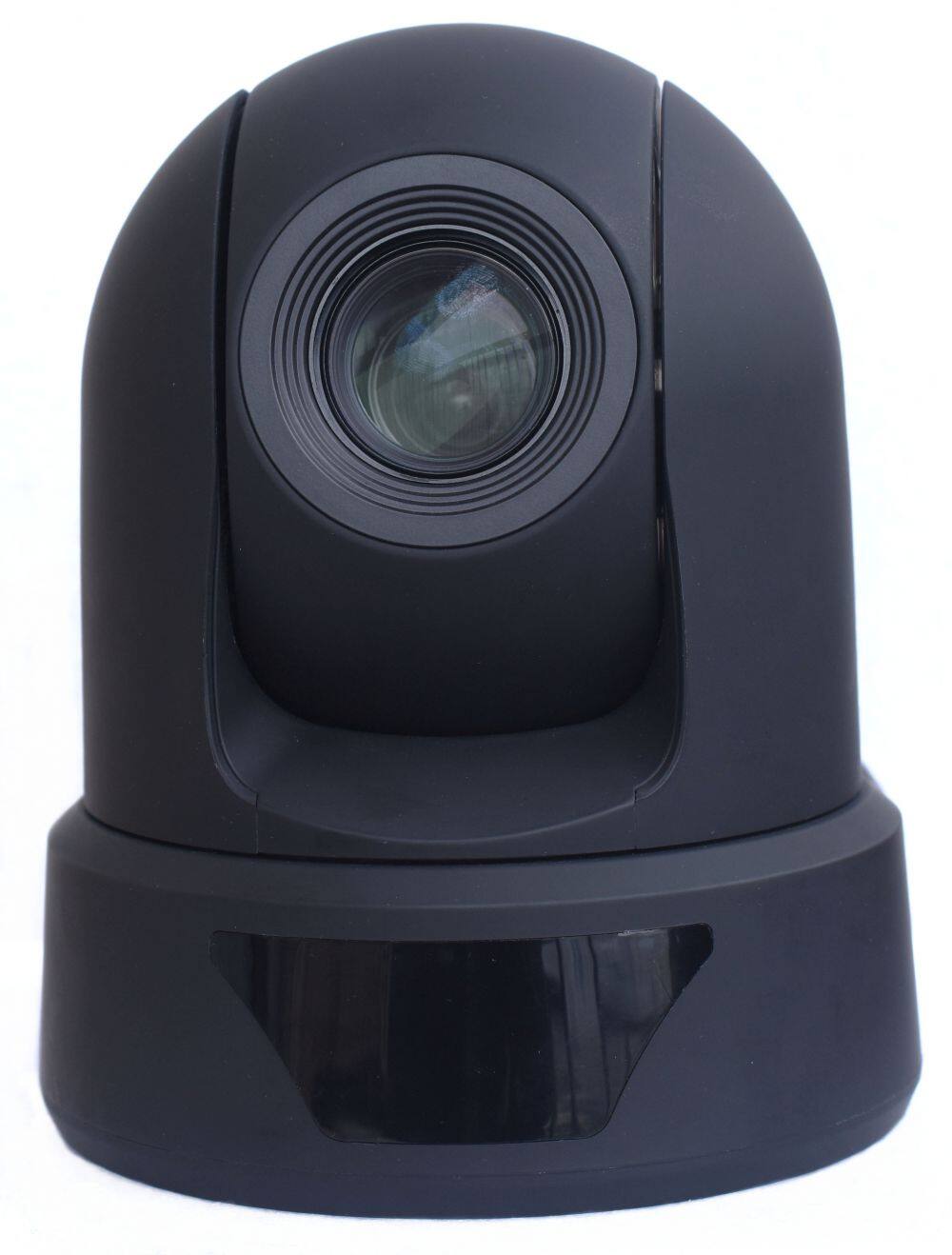

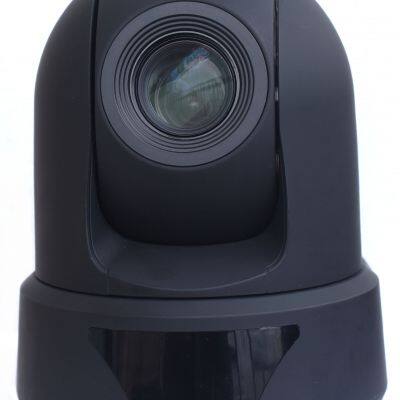

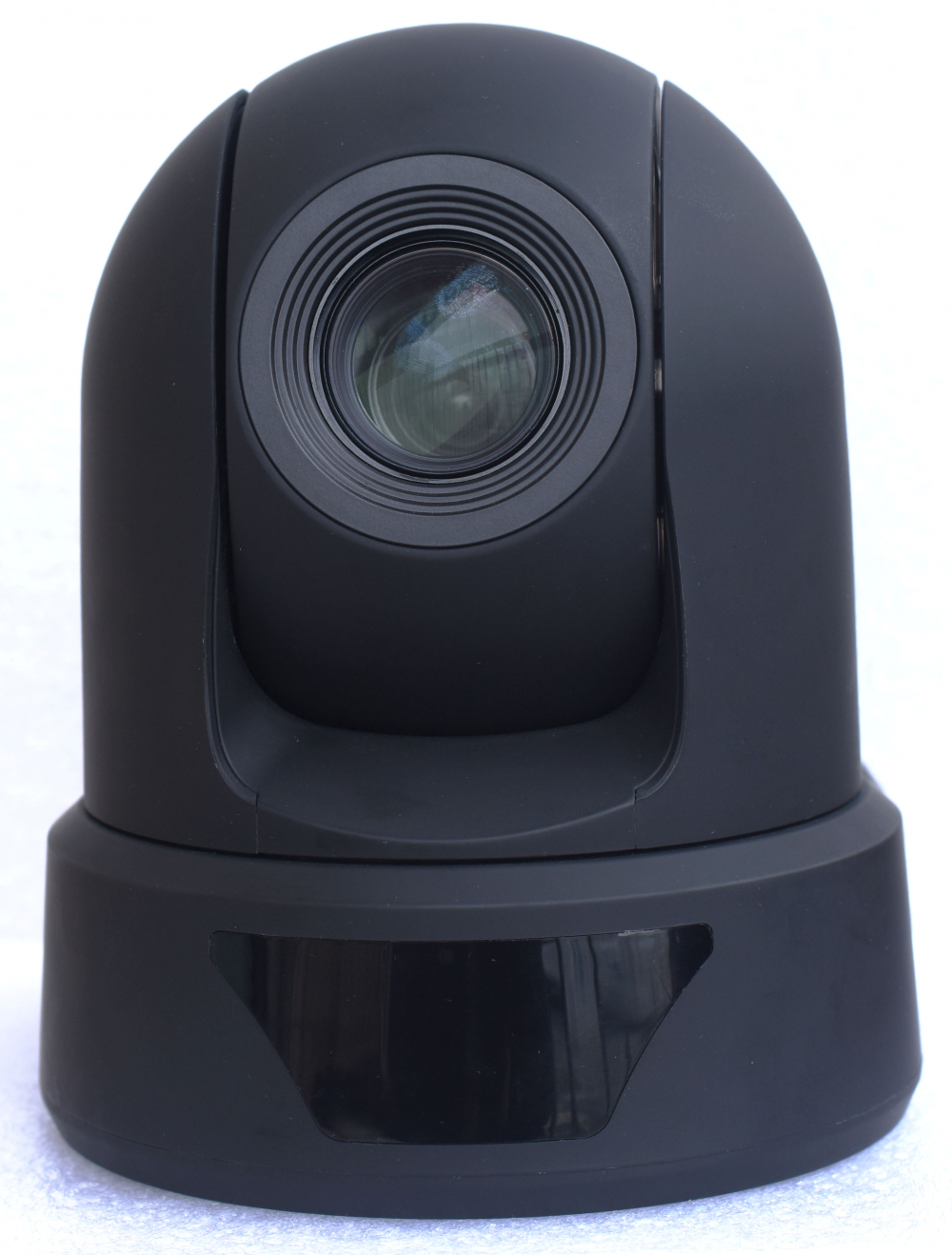

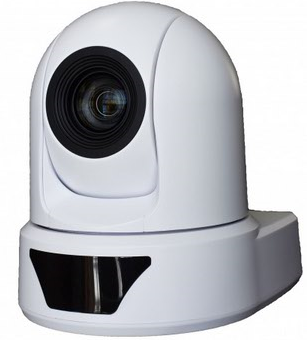

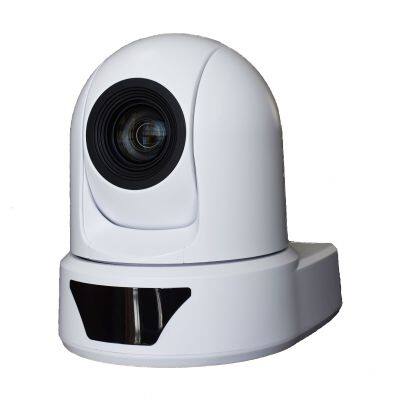

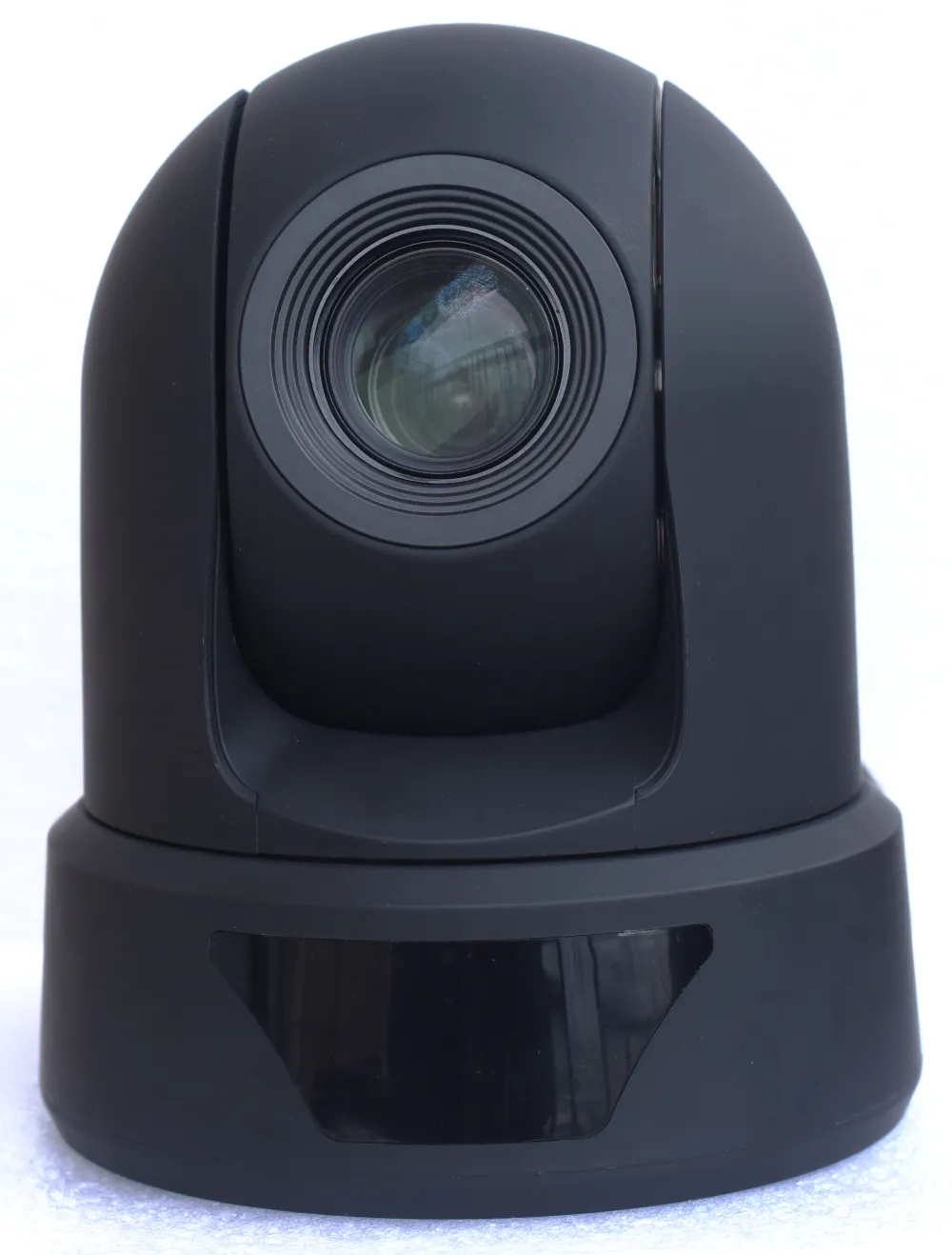

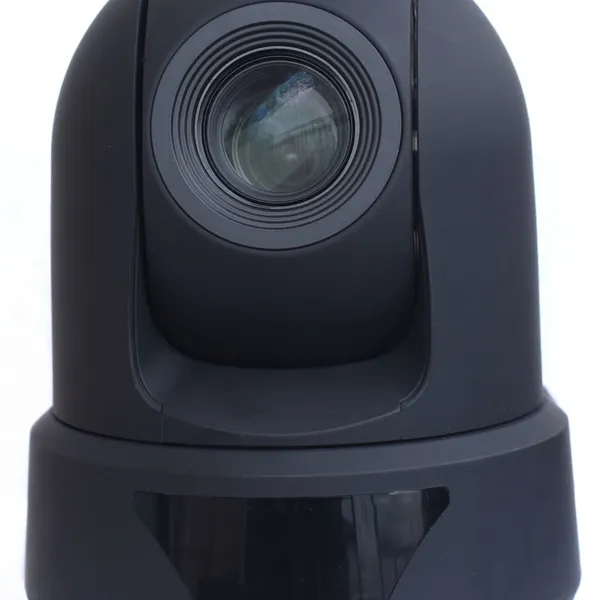

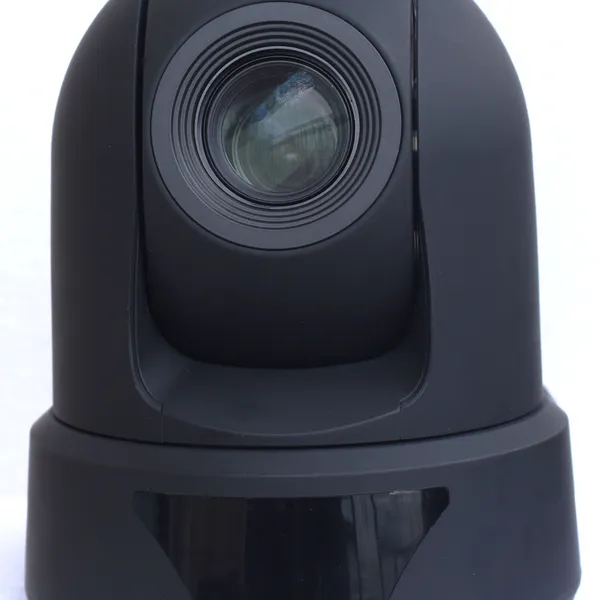

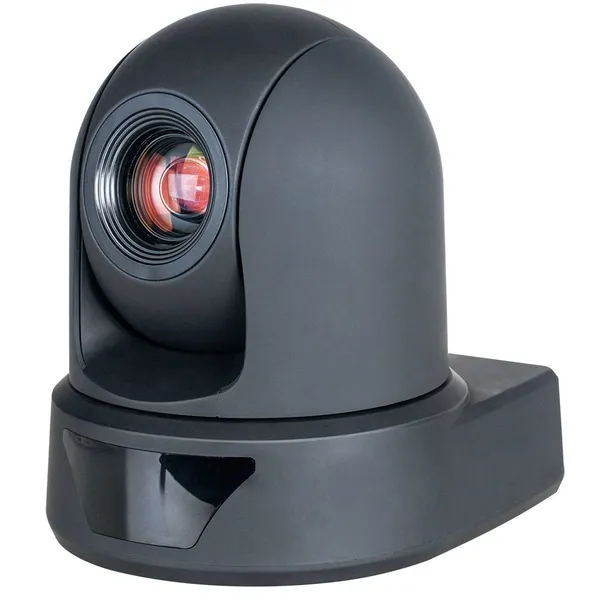

FV2 Series 1080P 30Fps 60Fps USB2.0 USB3.0 HDMI SDI 3X 12X 20X 30X PTZ Conference Video Camera
FV220SH6
20X, 3G HD-SDI, HDMI; 60Fps
Specifications
Model |
FV220SH6 |
|
Main Specifications |
20X, 3G HD-SDI, HDMI; 60Fps |
|
Camera, lens | ||
Image sensor |
1/2.8inch High Quality HD CMOS Sensor |
|
Effective Pixels |
16:9 2.1 Mega effective pixels |
|
Video Format |
1080P60/50/30/25, 1080I/60/50,720P60/50 |
|
Lens zoom |
20x optical zoom, 12x digiting zoom, f＝4.7 - 94mm |
|
Angle of View |
2.9° (narrow angle) -- 55.4°(wide angle) |
|
Minimum illumination |
0.1Lux |
|
White Balance |
Auto/Indoor/Outdoor/Manual |
|
Focus |
Auto/Manual |
|
Aperture |
Auto |
|
Shutter |
Auto |
|
SNR(Signal to Noise Ratio) |
>52dB |
|
Input/Output interface | ||
HD video interface |
HDMI, HD-SDI (3G) |
|
Standard definition video interface |
RCA interface |
|
Control signal interface |
8 cords mini DIN(RS232) 2 pin 3.81 seat(RS485) |
|
Control signal format |
Start Bit:1 bit, Data Bits: 8 bits,Stop bit:1 bit, Baud Rate: 9600/4800/2400bps |
|
Power Port |
HEC3800 Power Socket |
|
General Specifications | ||
Mechanical Capacity |
Pan/Horizontal rotation: ±170 degree; Tilt rotation:-30 degree - +210 degree |
|
|
Horizontal control speed: 1-100°/ sec; Tilt control speed: 1-60°/ sec | ||
|
Preset speed: horizontal:100°/ sec, Tilt:60°/ sec | ||
Preset position accuracy: 0.1 degree | ||
Preset Positions Number: 255 presets | ||
Head control mode |
servo motor control |
|
Color |
Black |
|
Power Adapter |
AC110V- AC220V - DC12V/2A |
|
Input Voltage |
DC12V (DC11.5-DC12.5V) |
|
Power Consumption |
15W ( max. ) |
|
Storage Temperature |
-10℃ to +60℃ |
|
Working Temperature |
0℃ to +45℃ |
|
Size (LxWxH) |
155mm X 176mm X190mm |
|
Weight (net weight) |
2.5KG (1.3KG) |
|
Working Environment |
Indoor |
|
