Hotrain FK01 Visca Pelco-p LCD Display 3D Joystick PTZ Conference Video Camera Keyboard Controller/ Control Keyboard

Hotrain FK01 Visca Pelco-p LCD Display 3D Joystick PTZ Conference Video Camera Keyboard Controller/ Control Keyboard

This keyboard controller can be used for controlling PTZ cameras, supporting VISCA, PELCO protocol, and RS485, RS422, RS232.

Features:

Set and call 1 to 46 preset positions of video conference cameras;

Joystick: 3D (Control: UP, Down, Left, Right, Zoom);

Good Communication Compatibility,

Built-in many kinds of protocols: Pelco-P, Pelco-D, VISCA, SONIC1, SONIC2, B01, SSUNG, PIH717, HIK, KRE301, RULE, SAE, PTC250 DAHUA, KALATE;

The address code of Sony video conferencing camera can be set independently

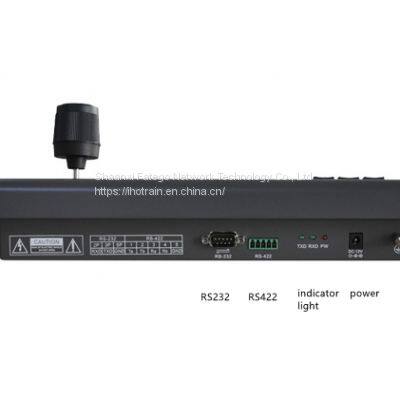

Various communication modes, RS485, RS422, RS232, 10M network (optional), USB(optional);

Online upgrade program;

Compile the upgrade procedure according to the protocol and instruction provided by the customer;

Unique control code learning function, customers can modify the control code instruction themselves.

RS485 Control Bus

Can control 255 front-end device addresses at most, 128 devices are in parallel simultaneously.

Can control 7 pieces of series-wound Sony conference video cameras.

Maximum sub-control keyboards: 16;

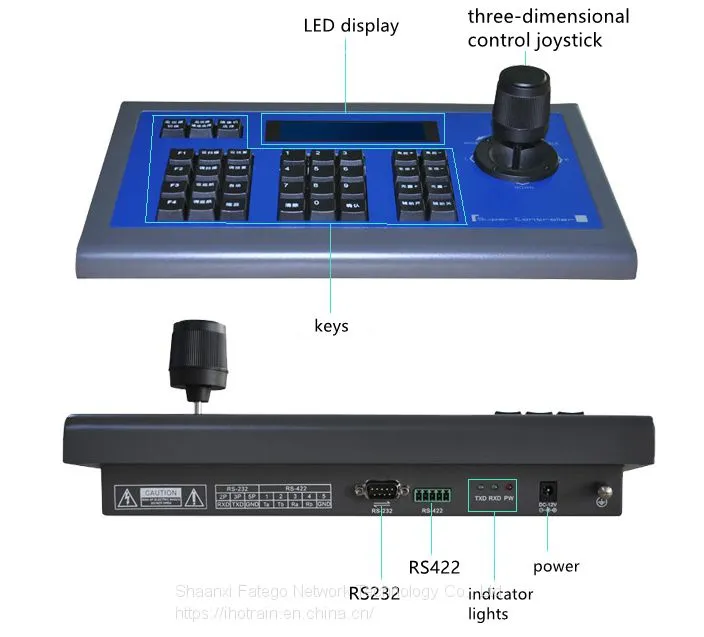

LCD display;

For all the interfaces, there is lightning-proof design, strong anti-interference, standard transmission distance up to 1200 meters

All parameters can be set by keys.

Specifications:

Accessories:

Keyboard Controller -1 pc

Power Adaptor - 1 pc;

Control cable - 1 pc;

User Manual - 1pc;
