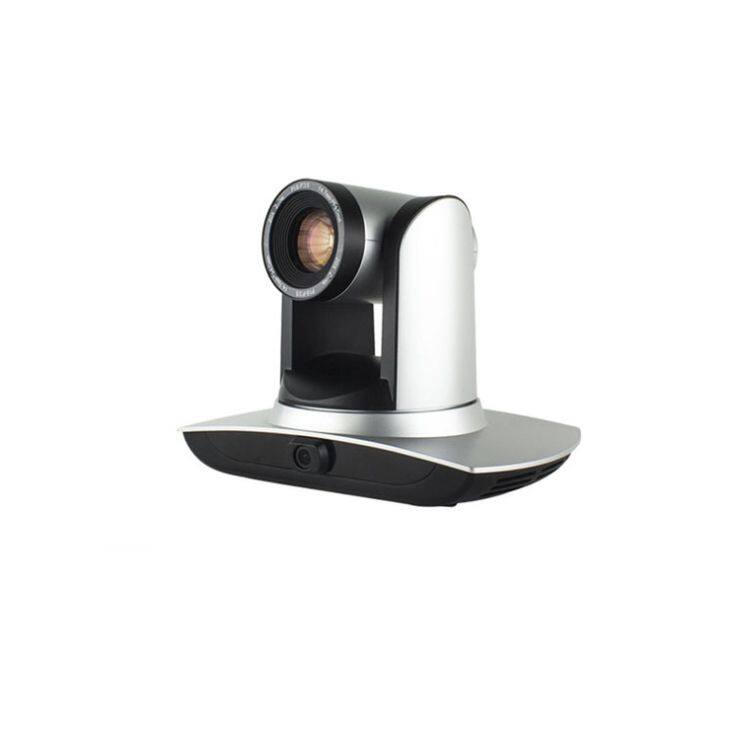

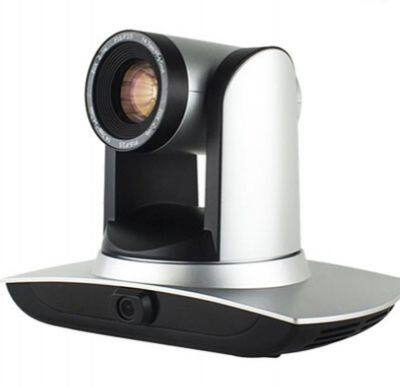

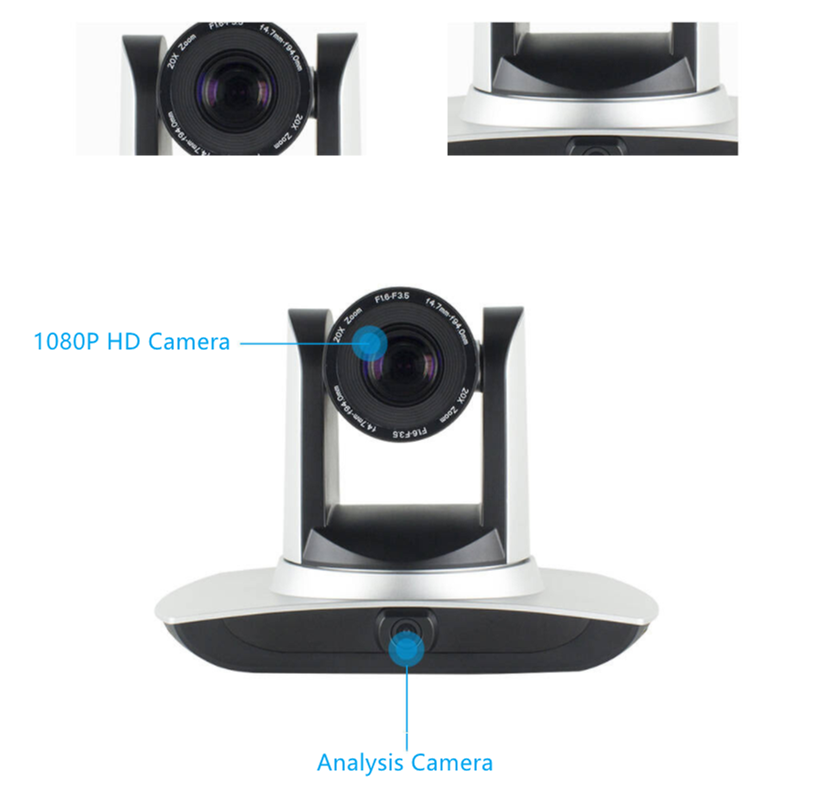

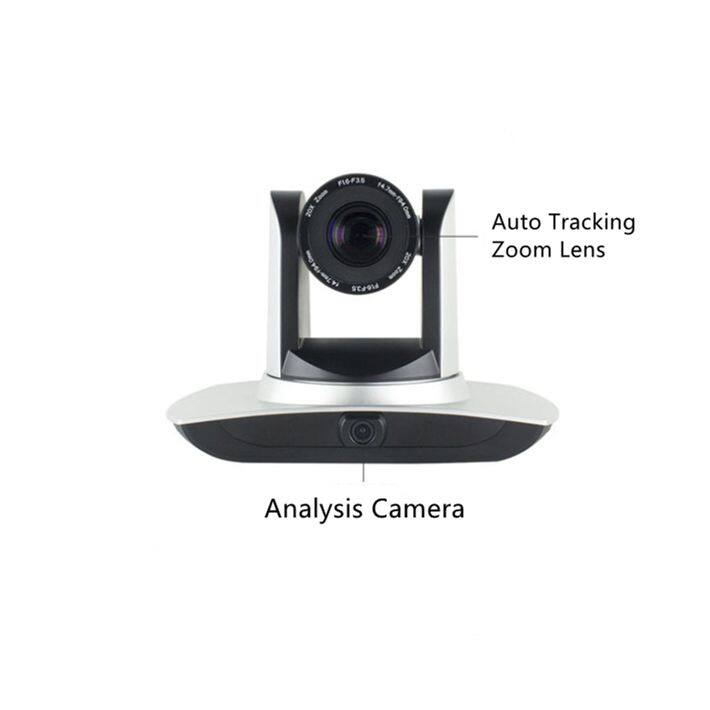

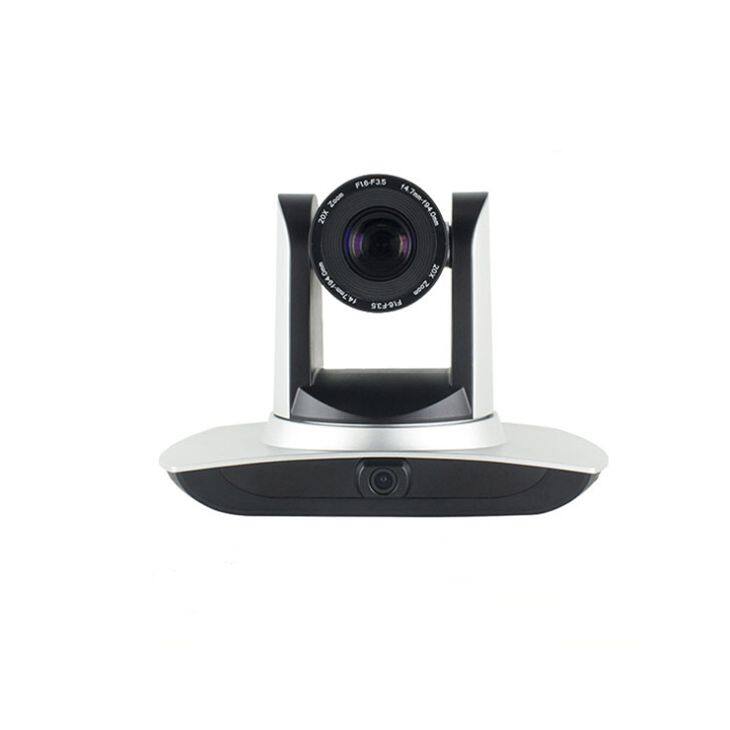

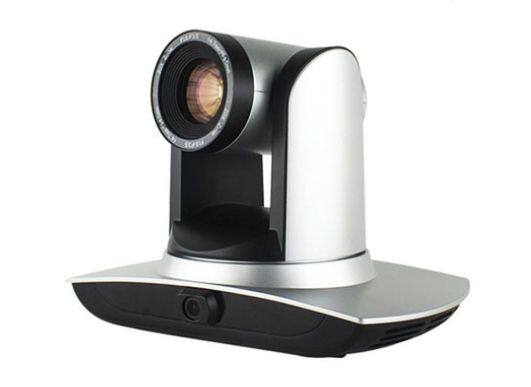

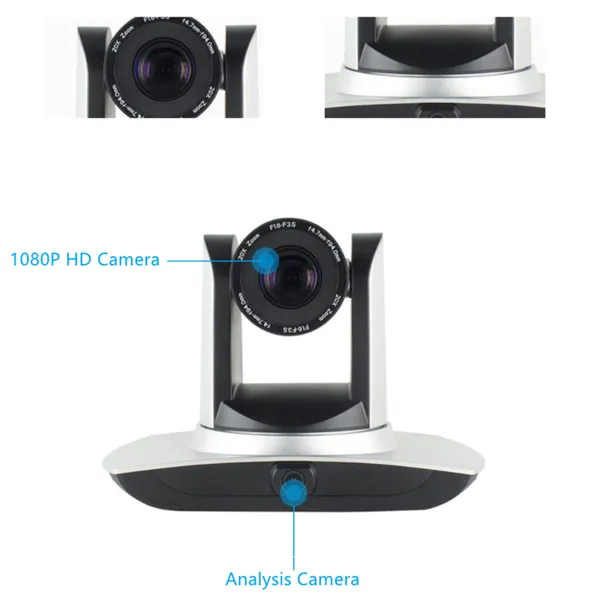

DC1 Dual Camera 20X SDI Auto Image Tracking PTZ Conference Camera

Effective pixel

2.07 Mega Pixel, 16:9

Video signal

HDMI / SDI / HD baset   interface video format
  1080P60/50/30/25/59.94/29.97；1080I60/50/59.94

Lens

F = 5.5 - 110mm 20x optical   zoom

Angle of View

3.3 ° (narrow angle) - 57.   4° (wide angle)

The aperture coefficient

F1.6 – F3.5

Minimum illumination

0.5 Lux (f1.8, AGC on)

Digital noise reduction

2D & 3D digital noise   reduction

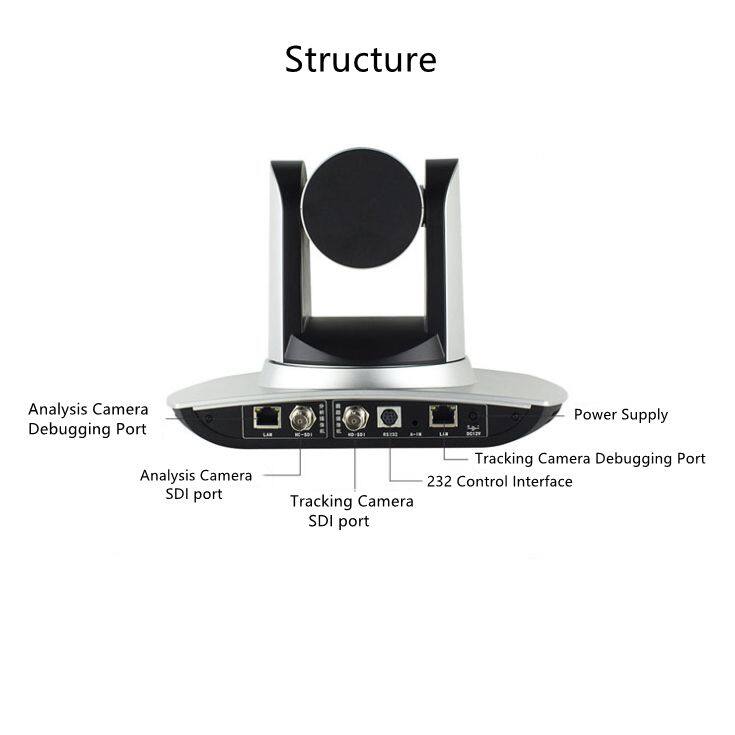

Video output interface

SDI+DVI+USB

Image stream

double stream output

Video compression format

H.265, H.264

Audio compression format

AAC, MP3, G.711a

Network interface

100m network port

(10 / 100 base-tx)

5G wifi (optional)

Network protocols

RTSP, RTMP, ONVIF, GB /   t28181

Support remote upgrade,

remote restart and remote   reset

RS232 and RS485 interface

Control protocol:

 Visca / PELCO-D / Pelco-p;

Baud rate:

115200 / 9600 / 4800 / 2400

Power interface

hec3800 power socket (DC12V)

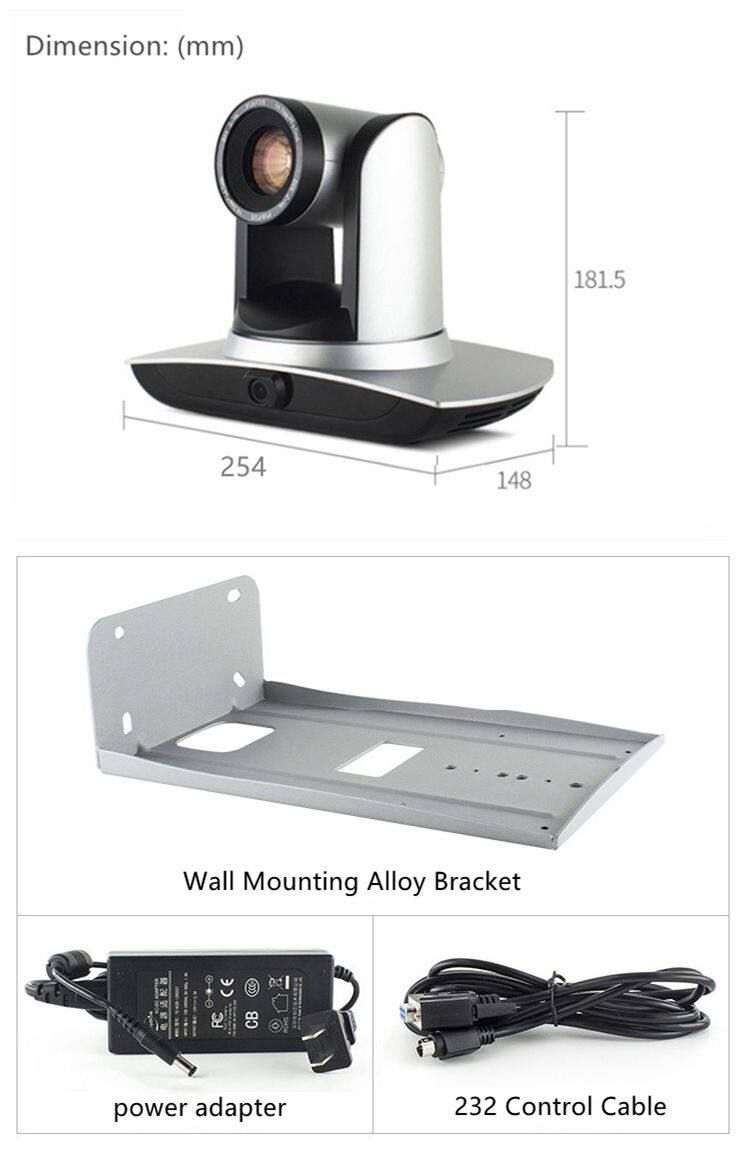

Power adapter

input AC110v-ac220v, output   DC12V / 1.5A

Input voltage

DC12V ± 10%

Power consumption

12W (maximum)

Horizontal rotation

- 170 degrees to + 170   degrees

Pitch rotation

- 30 degrees to + 90 degrees

The horizontal control speed

0.1 - 60 ° / s

Pitch control speed

  0.1 - 30 ° / S
