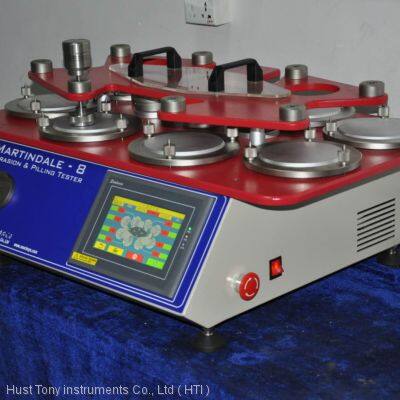

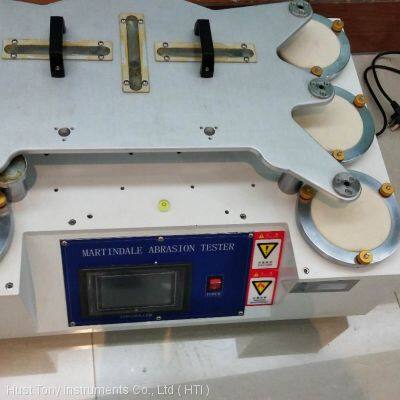

Martindale Abrasion & Pilling Tester -- Testing Heads: 4 / 6 / 8
Martindale Abrasion & Pilling Tester. To determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abrasives at low pressures and in continuously changing directions. The amount of abrasion or pilling is compared against standard parameters.
Comply with Standards:
EN ISO 12945-2,ISO 12947-1/2/3/4,ISO 20344,ASTM D4966,ASTM D4970,BS EN 388,BS EN 530,BS 3424,BS 5690,JIS L1096,DIN 53863,DIN 53865,SATRA TM31,IS 12673,IWSTM 112,IWSTM 196,IWTO 40-88,SFS 4328,NEXT 16,GMW 15651,ISO 5470-2,M&S 17,M&S 19,M&S 19C,NEXT 18,NEXT 18a,NEXT 18b,
Features:
1. The unique design of our Martindale abrasion tester allows removal of individual sample holders for examination without lifting the top motion plate.
2. It provides individual counters and parking function, interval time settable and a large touch-screen display. Standard sample holders and 9 and 12kpa Weights are included.
3. The Martindale abrasion tester is available with 4, 6, 8 or 9 test positions.
Specifications:
| Testing Heads: | 4/6/8 |
| Accumulate count: | 1~99999 times |
| Relative velocity: | 50 r / min |
|
Pressurized material weight wear resistance test: |
Clamps component 200 ± 1g(1.96N) |
| Cloth sample hammer 395 ± 2g | |
| Furniture decorations specimen hammer 594 ± 2g | |
| Pilling test: | Gripper assembly 155 ± 1g, heavy punch 260 ± 1g |
| Effective diameter of abrading table: | φ121mm |
| Effective friction diameter: | A) Wear resistance test: φ28.8mm |
| B).Pilling performance test: φ 90 mm | |
| Display : | LED Display |
| Dimensions (L * W* H): | 880*600*420mm |
| Power supply: | AC380V,180W |
| Accessories: | ballot sheet 1pcs, bowl shape specimen kit 1pcs,O-rings( 4,6,8), Abrasion weights kit(4,6,8), Pilling weights kit(4,6,8), power line 1pcs |
|
Optional purchase consumables:
|
wool fabric, felt, sponge, EMPA, scale, SM50 scales |
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
