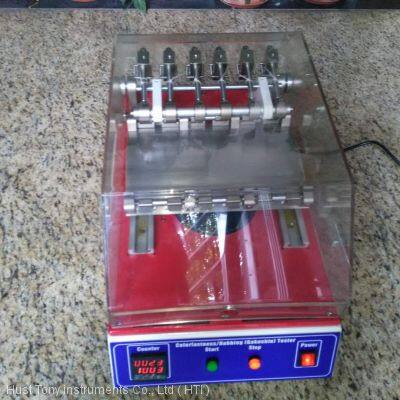

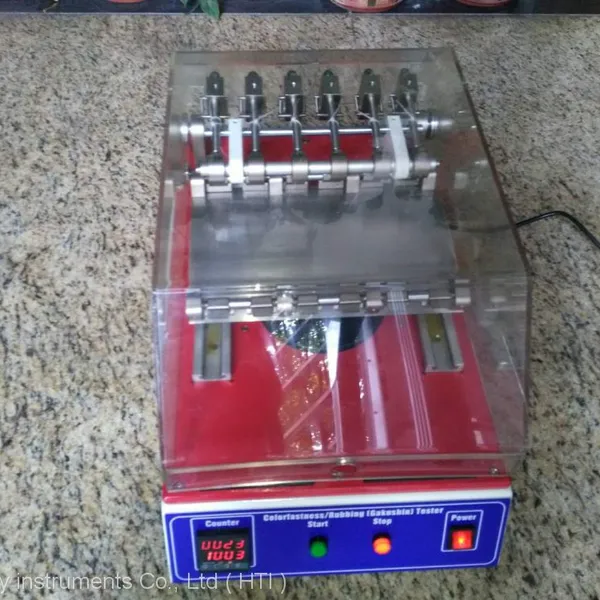

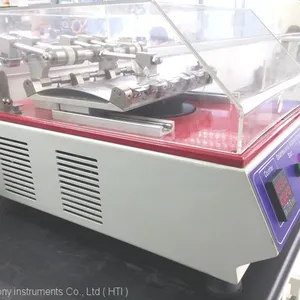

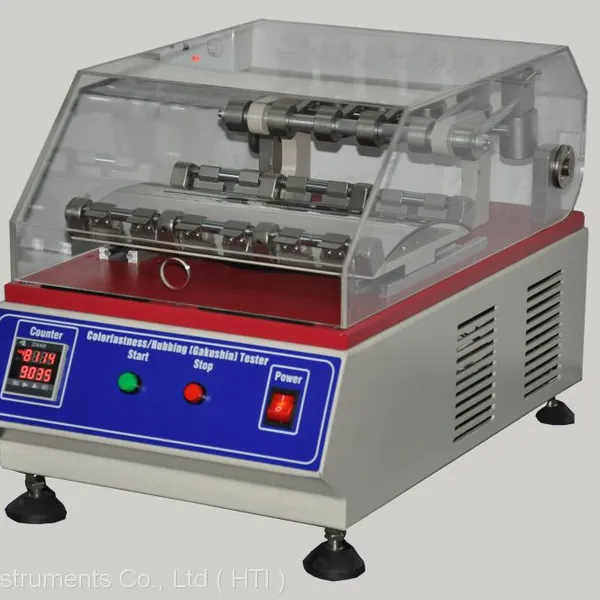

This JIS Colorfastness/Rubbing Tester machine is based on the friction test machine type II in the prescribed form of Japanese Industrial Standard JIS L0849, primarily used in dyeing color fastness to rubbing test.
JIS Colorfastness/Rubbing Tester Specifications:
Test station: 6
Test stroke: 120mm
Test Speed: 30±2r/min
Rubbing head pressure: 2N (200g)
Extra weight:300g
Rubbing locus distance : 100±1mm
Rubbing surface:R200 Curved Surface
Rubbing head: R45mm surface,approx 20mmX20mm contact area of 100mm2
The distance from the fixed axis center to rubbing finger center:110mm
Cotton cloth size:60mmx60mm
Counting display:LED display,0~99999
Power: 1∮ AC 220V 3A, 200W
Dimensions:330×550×350mm(L×W×H)
Weight: 45kg
Accessories: weights 6pcs, power line 1pcs
Standards: JIS L 0849 II, 0801,0823,,1006,1084,K6328,98136,JIS P-8136
Optional purchase consumables: SDC Cotton Lawn Rubbing Fabric, Grey Scales
1﹑purpose:
This machine is based on the friction test machine II in the prescribed form of Japanese Industrial Standard JIS L0849, primarily used in dyeing color fastness to rubbing test.
2﹑Principle:
Use the friction test machine according to prescribed methods, make the sample and tested cotton lawn rubbing fabric to rub each other. Compare the stained cotton fabric and the grey scales of staining degree to judge the color fastness.
3﹑Standard:
This machine meets standards: JIS L 0849 II
