HTC-007-C Rotawash Color Fastness Machine/ Launder-Ometer -- 8(AATCC)+8(ISO)
This rotawash color fastness test machine is used for conducting wash fastness testing, dyeing, dry cleaning, colorfastness to fulling, detergency and other tests at temperatures up to 95 celsius degree and suitable for all kinds of color textile.

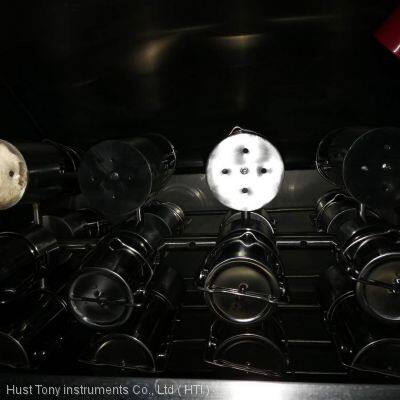

Put the tested specimen, steel ball and detergent together into the test cup. Scroll through the spindle to make friction between the sample and steel ball. After specified time, take out the specimen and dry, compare to the standard color assessment card. According to the sample's color change to evaluate the color fastness.

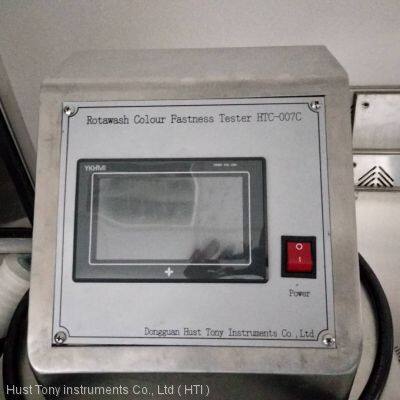

Controls: PLC control and Touch screen display of temperature, time,rate of increase of temperature, water level androtations of containers.
Interface: Touch screen with built-in programs for common standards such as ISO, AATCC and GB. Provision of developing and saving newer standards
Features:
1. Stainless steel body;
2. High-precision temperature controller, accurate temperature control cabinets;
3. High-precision timer to set the time accurately stops;
4. Control interface is friendly, easy to operate;

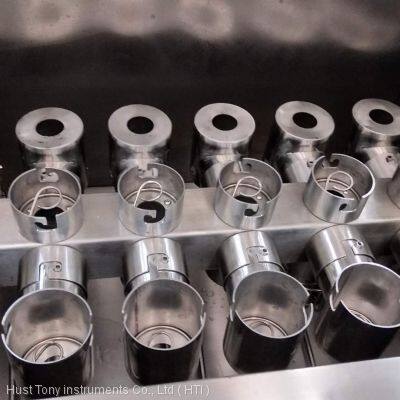

5. Equipped with two steel cup sizes, quantity can be configured according to customer needs.
Specifications:
| Rev | 40±2/rpm(Contant speed) |
| Large steel cup capacity | 1200ml*8nos |
| Small steel cup capacity | 550ml*8nos |
| Steel balls | 6mm*500nos |
| Dimension | 1120×600×1130mm(LXWXH) |
| Weight | 120KG |
| Power | 380V 10A |
Standards: M&S C4, C4A, 5, 37, C49, P3B ,ISO 105 C06 ,IWST7, 115,177,193,199,240,241 ,AATCC 2,3,28,61,62,86,132, BS 1006,JIS L0884,GB/T3921,GB/T5711
Standard accessories:
1200ml Washing tank 8pcs(AATCC)
500+50ml Washing tank 8pcs(ISO)
Dia.6mm stainless ball 500 pcs
Washpot(pack of 20)
Consumables need to purchase: Grey Scales,Standard detergent, Standard Soap powder, Standard fiber cloth.
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
