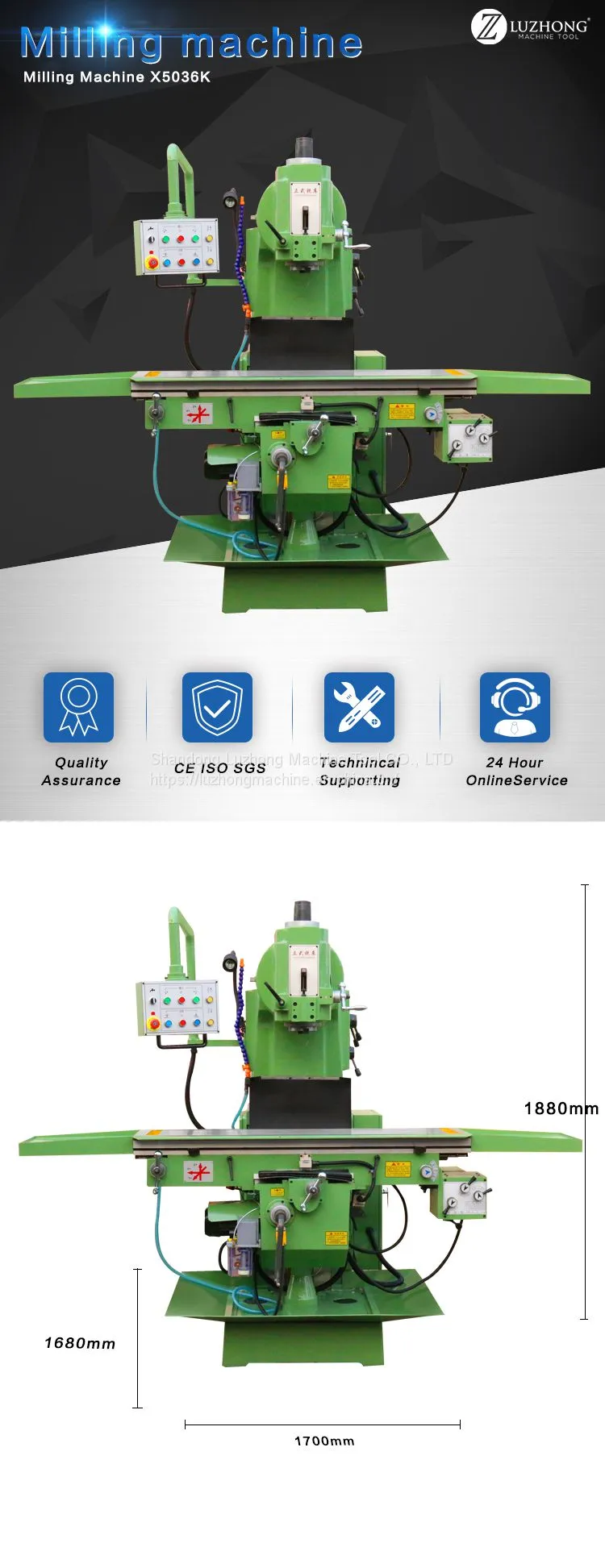

X5036 Hobby Conventional Vertical Milling Machine for sale
Product Description
The main performance characteristics：
1. The use of the moment type of rail steel is good, strong stability
2. High frequency quenching of working table and guide surface
3. Working table Y, X are both gear drive automatic feed, Z for electric lift
4. X5036B - type slider (1200mm) to make the work of the working table longer, better stability
5. B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work table 1300mm
Product Parameters
Specifications |
Units |
X5032 |
X5032B |
X5032BH |
Table size |
mm |
1325×320 |
1600x320 |
1600x320 |
Table load |
kg |
500 |
500 |
500 |
T slot(number-width-pitch) |
mm |
3-18-70 |
3-18-70 |
3-18-70 |
Table travel |
mm |
700/680 255/240 370/350 |
900/880 255/240 370/350 |
900/880 255/240 460/440 |
Range of table feed |
mm/min |
XY:23.5-1180 Z:8-394 |
XY:23.5-1180 Z:8-394 |
XY:23.5-1180 Z:8-394 |
Rapid speed of table |
mm/min |
XY:2300 Z:770 |
XY:2300 Z:770 |
XY:2300 Z:770 |
Spindle taper |
ISO50 7:24 |
ISO50 7:24 |
ISO50 7:24 |
|
Spindle speed range |
rpm |
30-1500 (18 steps) |
30-1500 (18 steps) |
30-1500 (18 steps) |
Swivel angle of vertical milling head |
° |
±45 |
±45 |
±45 |
Distance between spindle nose and table surface |
mm |
45-415 |
45-415 |
45-490 |
Spindle motor power |
kw |
7.5 |
7.5 |
7.5 |
Feed motor power |
kw |
1.5 |
1.5 |
1.5 |
Weight |
kg |
2900/3200 |
3000/3300 |
3100/3400 |
Overall dimension |
mm |
2300×1770×2000 |
2600×1770×2000 |
2600×1770×2200 |

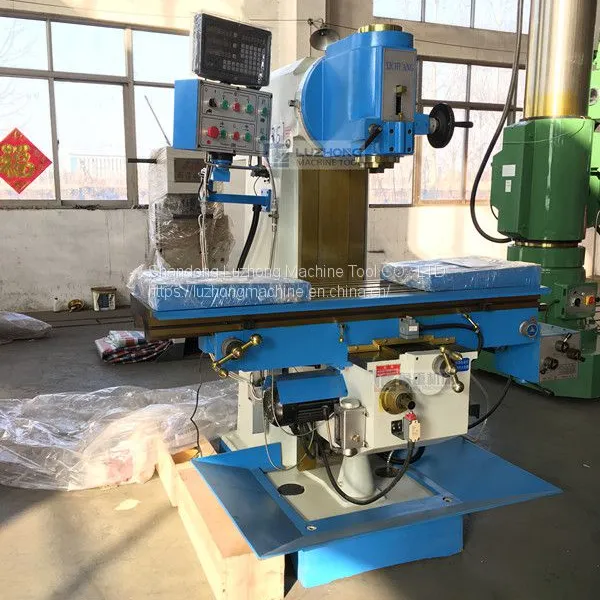

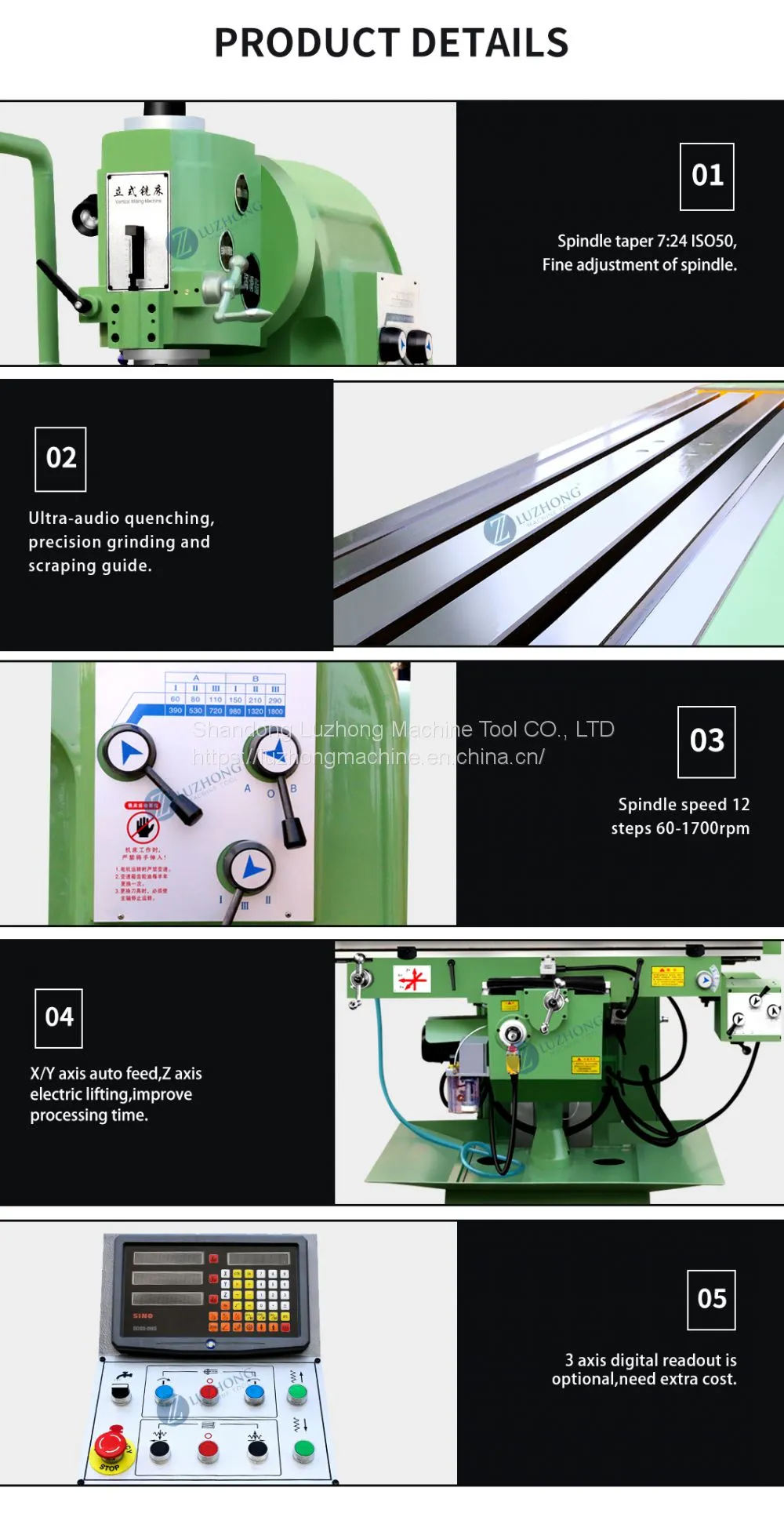

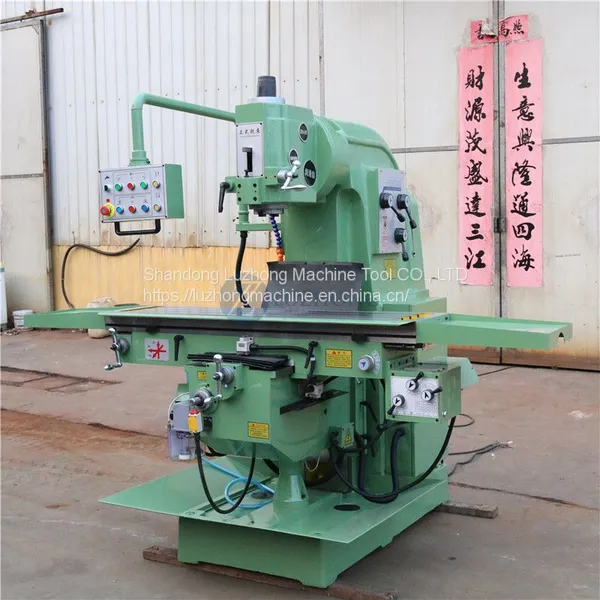

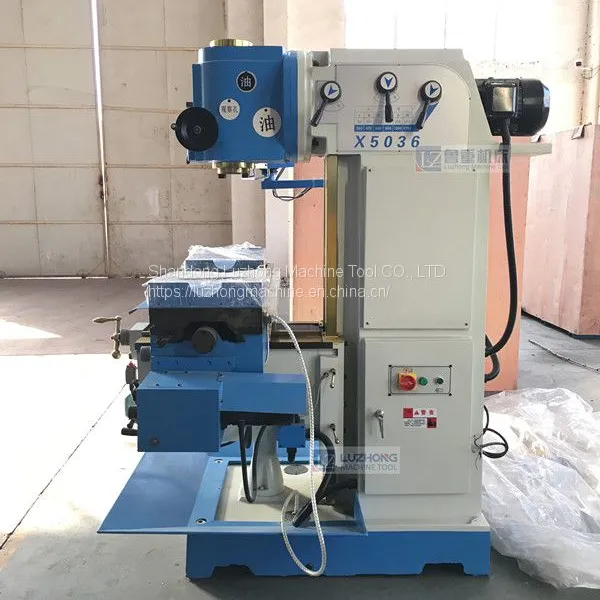

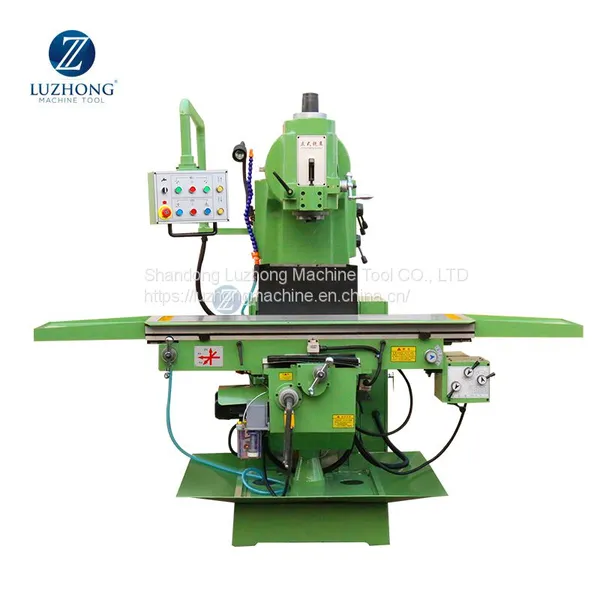

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
