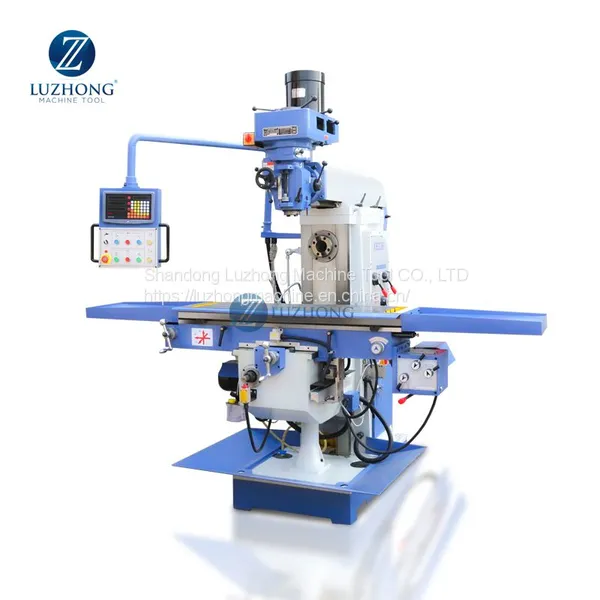

X6336 Chinese Universal Milling Machine for Sale
Product Description
Product Parameters
Specifications | Units | X6325 | X6330 |
Table size | mm | 1270x254 | 1370x305 |
Table travel | mm | 780/400/400 | 810/ 400 /400 |
T slot(number-width-pitch) | mm | 3-16-50 | 3-16-65 |
Spindle taper | R8 | (V)R8/ISO40 | |
Spindle speed range | rpm | standard:16 steps 50HZ:65-4500 60HZ:80-5440 | (V) 50HZ:65-4500 60HZ:80-5440 ‘16 steps (H) 45-1350,12 steps |
Optional:variable 65-4000 | Optional:variable 65-4000 | ||
Spindle travel | mm | 127 | 127 |
Spindle feed range | mm | 0.04,0.08,0.15 (3 steps) | 0.04,0.08,0.15 (3 steps) |
Distance between spindle nose and table surface | mm | 90-510 | 90-510 |
Distance between spindle axis and table surface | mm | - | 120-520 |
Main motor power | kw | 2.2 | 2.2(V)3(H) |
Head rotation (left - right ) | ° | ±90° | ±90° |
Head rotation (front - rear) | ° | ±45° | ±45° |
Weight | kg | 1400 | 1850 |

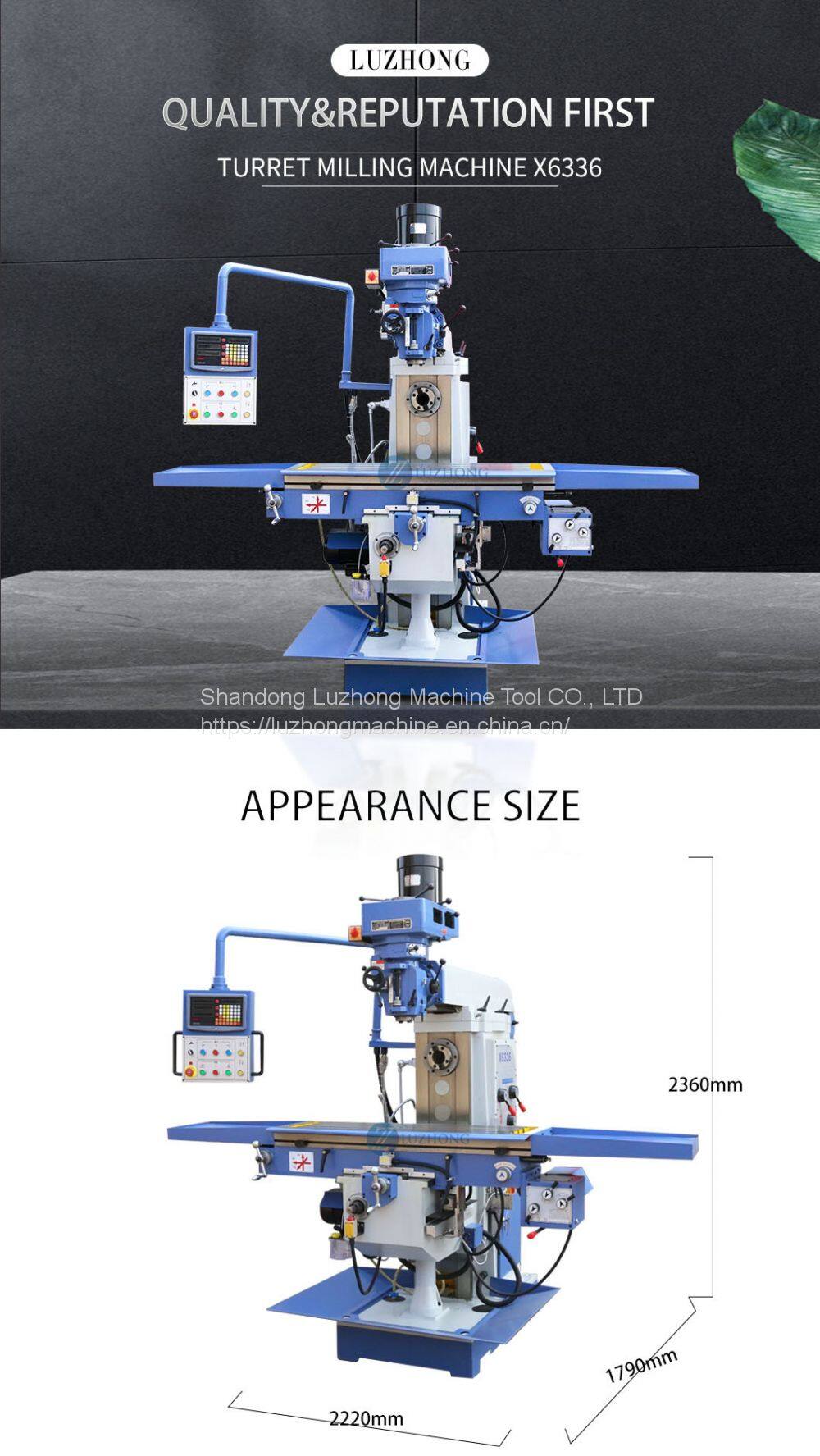

Overall dimension | mm | 1550x1650x2250 | 1550x1650x2250 |

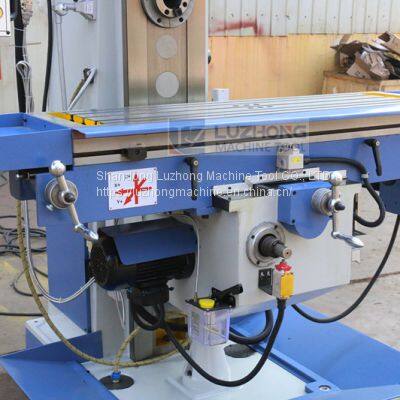

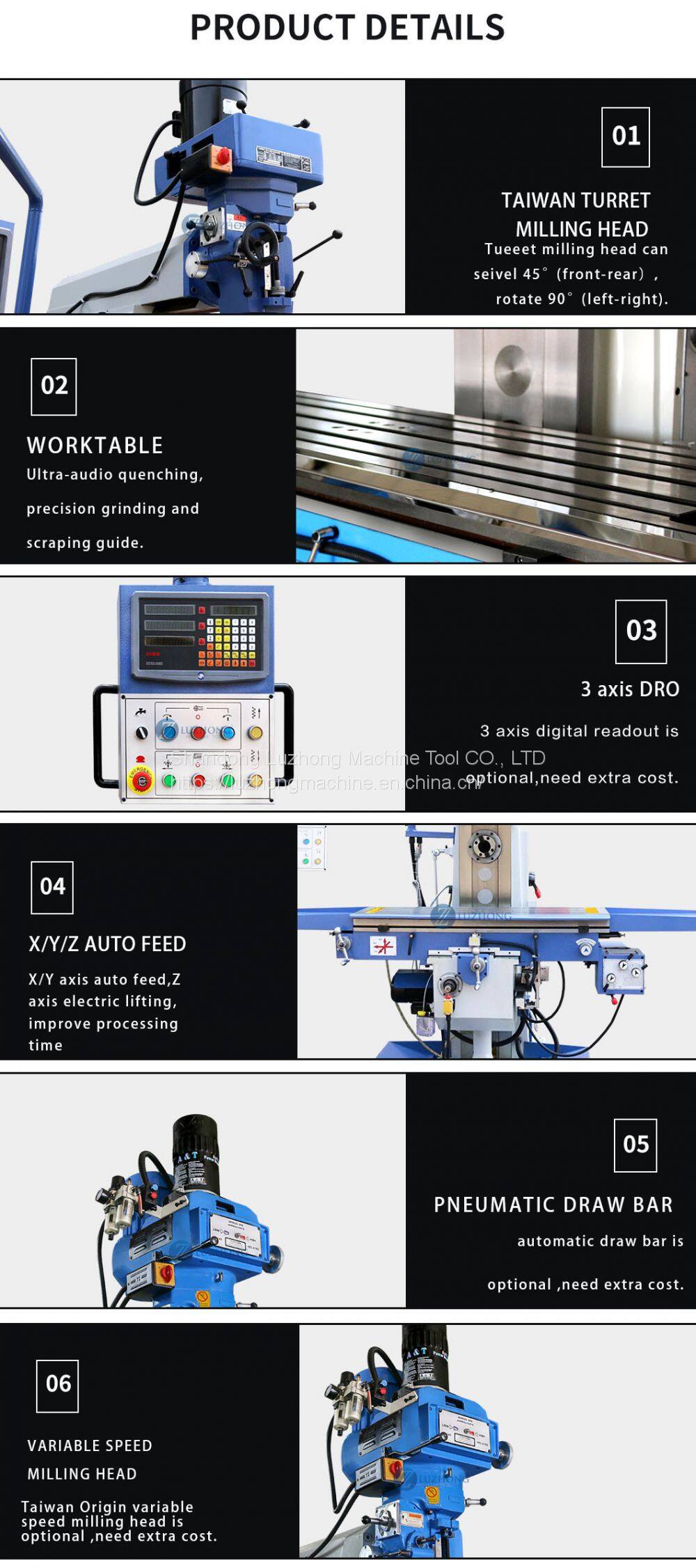

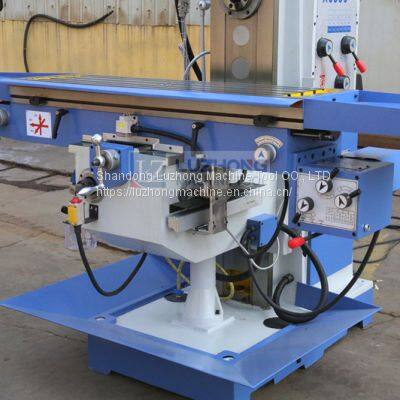

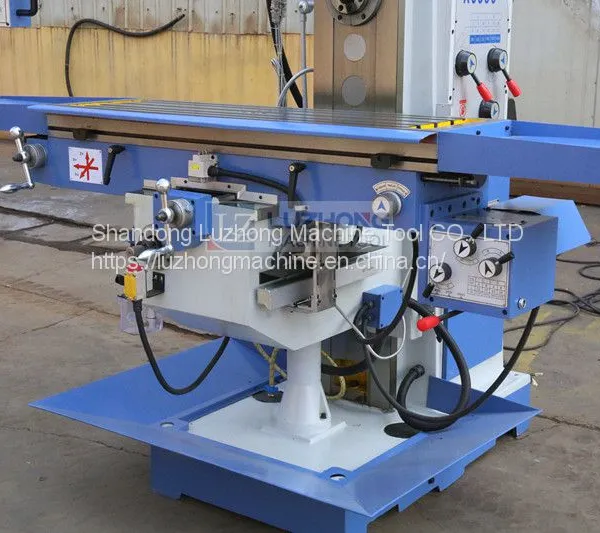

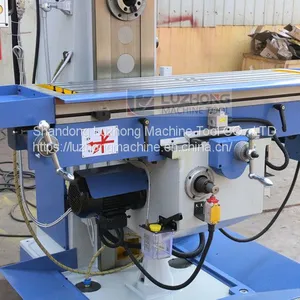

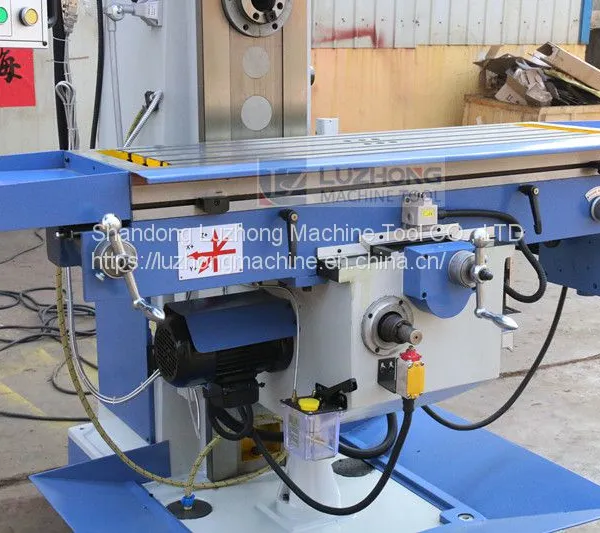

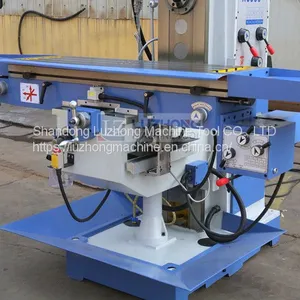

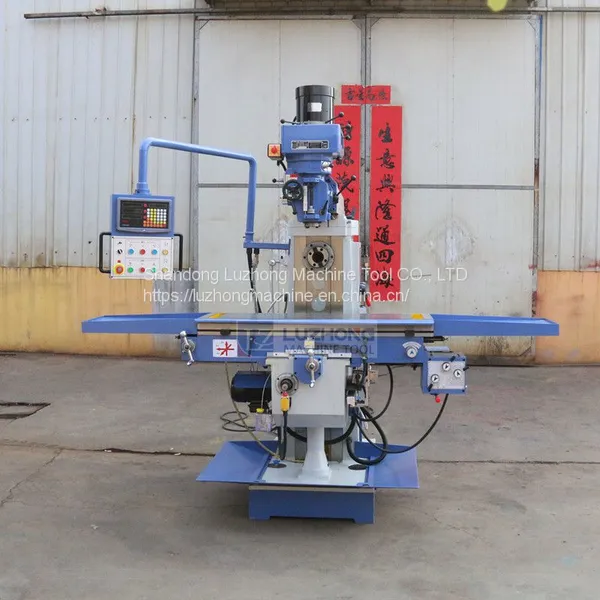

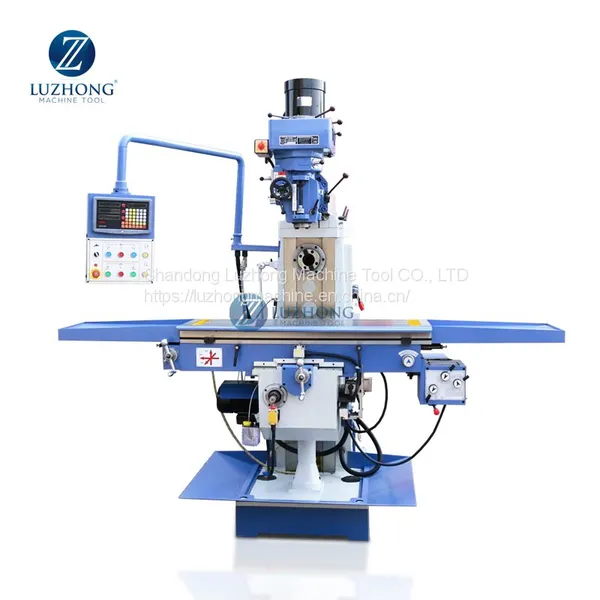

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
