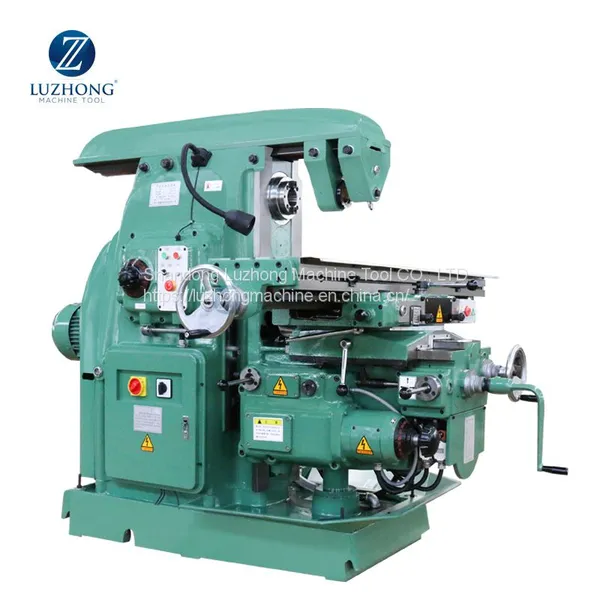

X6132 Universal Knee Type Milling Machine Horizontal Milling Machine
Product Description
The main performance characteristics：
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
Application：
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product Parameters
Specifications |
Units |
X6132 |
Table size |
mm |
1325x320 |
Table load |
kg |
500 |
T slot(number-width-pitch) |
mm |
3-18-70 |
Table travel |
mm |
700/680 255/240 320/300 |
Range of table feed |
mm /min |
XY:23.5-1180 Z:8-394 |
Rapid speed of table |
mm /min |
XY:2300 Z:770 |
Spindle taper |
ISO50 7:24 |
|
Spindle speed range |
rpm |
30-1500 (18 steps) |
Swivel angle of table |
° |
±45 |
Distance between spindle axis and table surface |
mm |
30-350 |
Spindle motor power |
kw |
7.5 |
Feed motor power |
kw |
1.5 |
Weight |
kg |
2700/3000 |

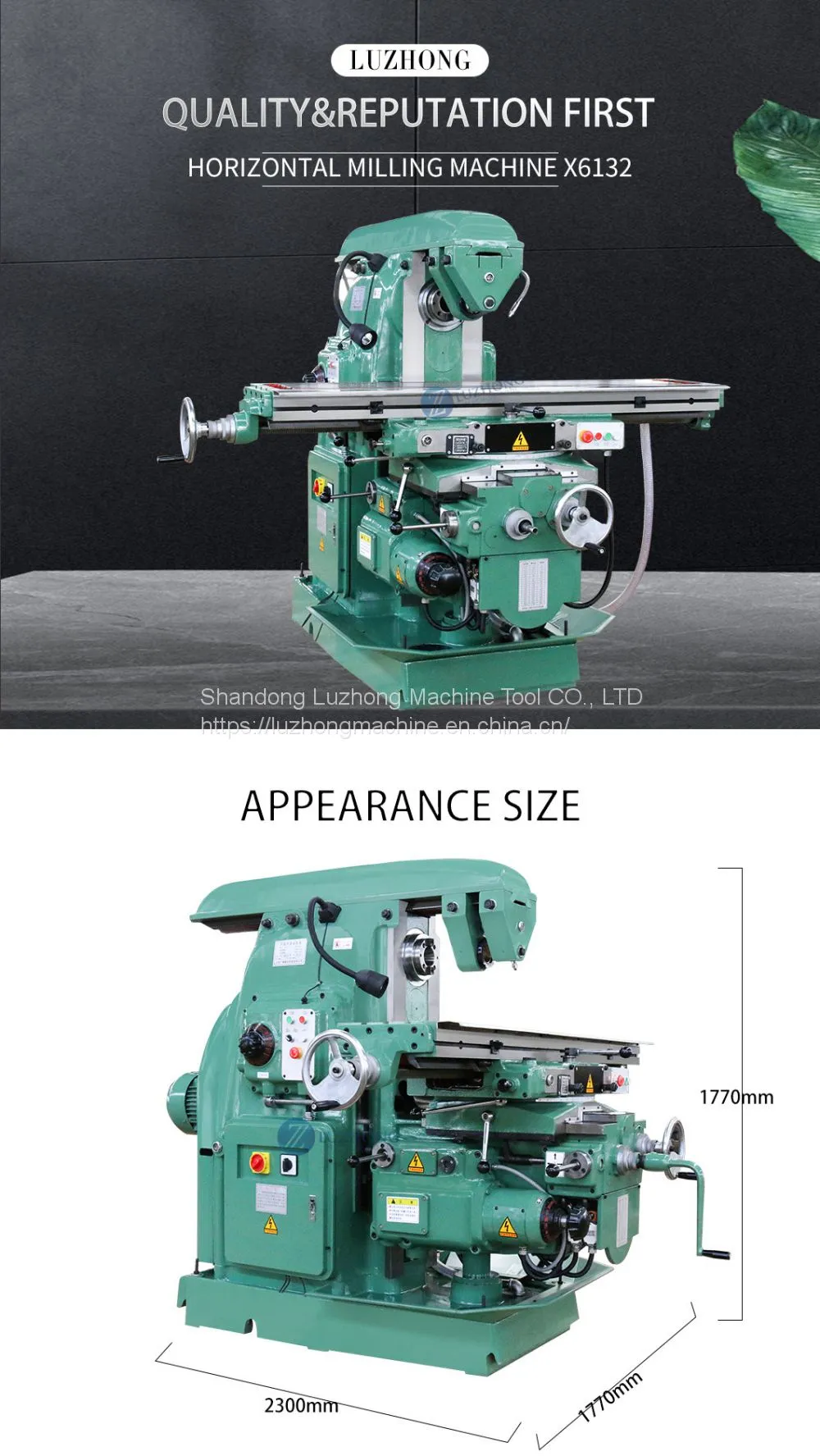

Overall dimension |
mm |
2300×1770×1700 |

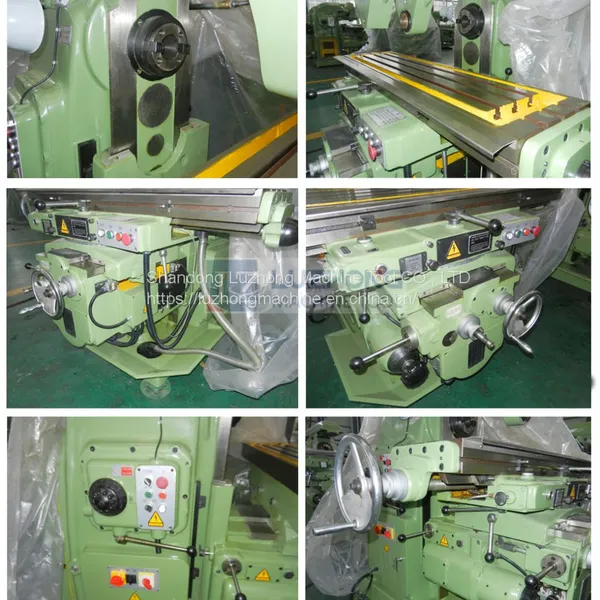

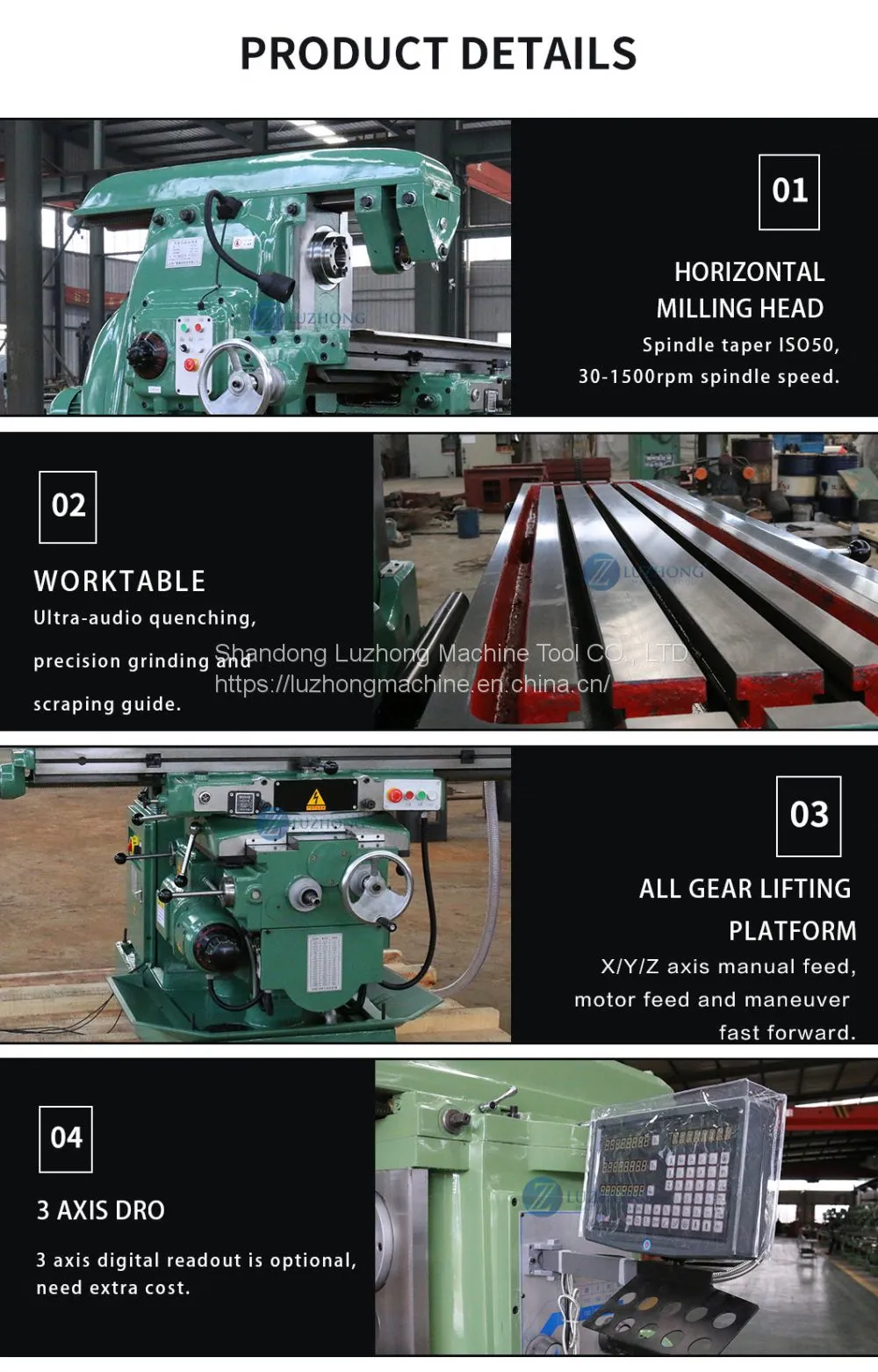

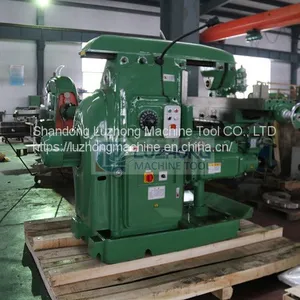

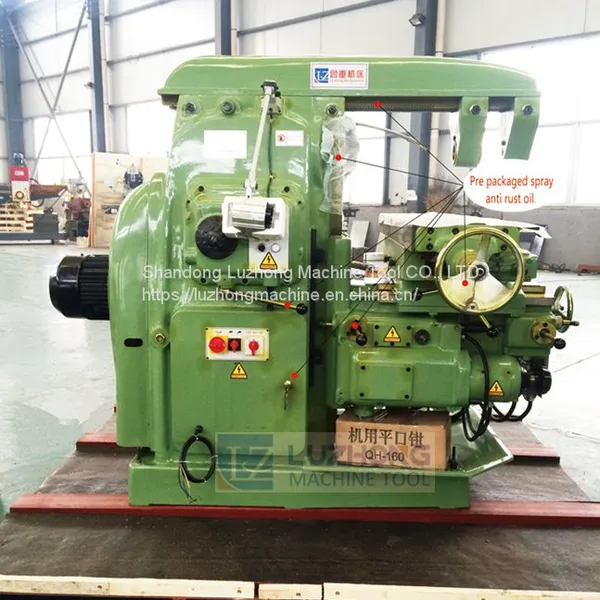

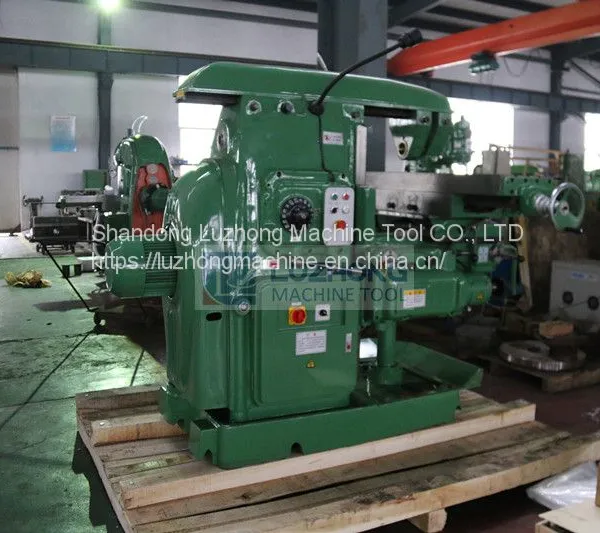

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
