Help CenterECE R118 Automatic Multi-Purpose Vertical Flammability Tester With Touch Screen Control
Related Products
-
UL 94 Vertical Horizontal Flammability Tester Plastics Flame Chamber HTB-066NegotiableMOQ: 1 Piece -
ISO 15025 Standard Protective Clothing Flame Spread Tester Flammability Test InstrumentsNegotiableMOQ: 1 Piece
-
Vertical Flammability Chamber CATB 117 CFR1615 CFR1616 ASTM6413NegotiableMOQ: 1 Piece
-
EN71 ASTM E162 Surface Flammability TestNegotiableMOQ: 1 Piece
-
45 Degree Automatic Flammability Tester Fabric Burning Test Meet ASTMD1230NegotiableMOQ: 1 Piece
Standards:ECE R118 Annex 8, BS EN ISO 6940,EN ISO 6941, ISO 10047,GB/T 5456,

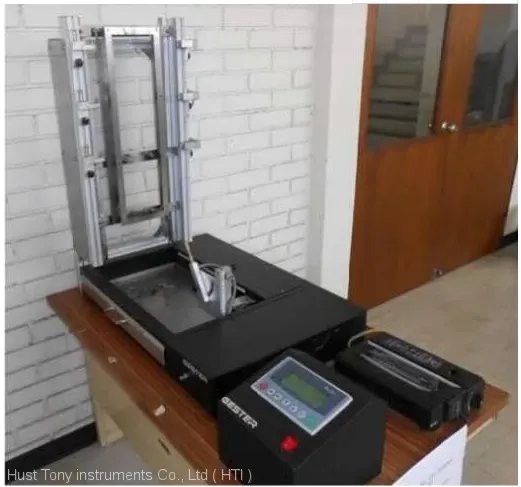

HTB-003 Vertical Flammability Tester (Touch screen control)
Description:

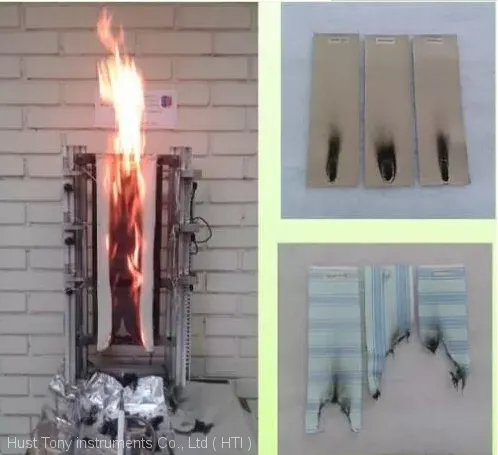

1 Purpose: Test to determine the vertical burning rate of materials for all kinds of textile fabrics.
This textile flammability tester is used to test the flame spread performance of single-or multi-component (coating, quilted, multi-layered, laminated products and similar combinations) including clothing, curtains, draperies and large tent awning and door cover textile at vertical condition.
This textile flammability tester is used for the measurement of flame spread times of vertically oriented textile fabrics and industrial products in the form of single or multi-component fabrics (coated, quilted,multilayered, sandwich combinations, and similar combinations) when subjected to a small, defined flame.
Accessories: sample holders, Flame gauge 40mm 1pcs, 25mm 1pcs (ISO 6940,6941), Burner position pointer 2pcs (ISO 6940,6941), clamps 2 set, weights 8 pcs, Micro gas tank control device, Micro gas cylinders, power line 1pcs;
Features:
1. Bunsen burner postion controlled by hand,auto-timing and postioning,easy operation,
2. Equipped with hypersensitivity warning device for gas leakage,automatic alarm for gas leakage,
3. Horizontal and vertical two bunsen burners fixed,
4. It needs fume hood or special exhaust system for the burnt gas,
5. Two sets of specimen holders for horizontal and vertical burning.
6. Change-over switch for horizontal and vertical flammablity testing, easy operation.
Technical parameters:
| Item | Specification |
| Ignition time set range | 0~99.9s |
| Burning time range | 0~99.9s |
| Burner angle | Flame position,angel to horizontal line:0°/30°/90° adjustable |
| Test flame height | 25mm/40mm |
| Marker thread location | adjustable |
| Burning Gas | butane |
| Size(WxDxH) | 80x55x86cm |
| Weight(approx) | ≈40Kg |
| Power | 1∮ AC 220V 50Hz |
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
