Durability And Stability Furniture Testing Equipment / Chair Testing Machine
- 100 Piece / Pieces per Month
- SHENZHEN
- T/T L/C PayPal
- 15 days
Product Details
Brand Name: | HTI / TONY | Place of Origin: | China | Model Number: | TNJ-002B |
Power: | Electronic | Usage: | Strength Testing Machine |
Product Description

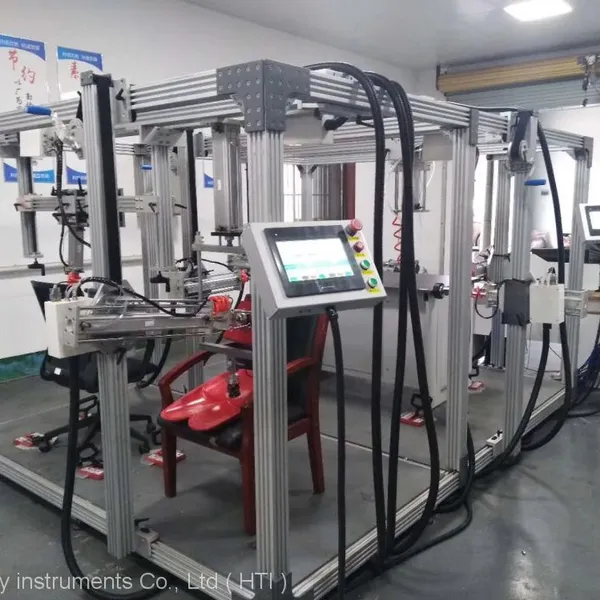

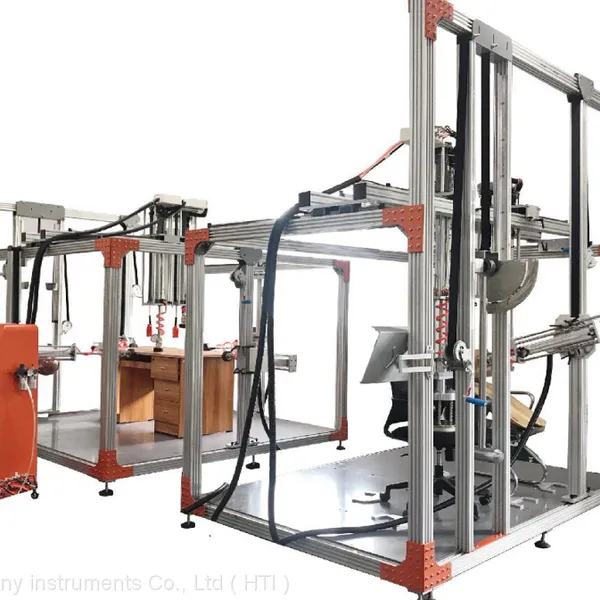

TNJ-002B General Purpose Tester for tables and chairs--A Combined Test Rig for Furniture
Detailed Product Description
Purpose: | Chair Testing Machine | Purpose: | Durability Test,static Test, Impact Test Vertical Test |
---|---|---|---|
High Light: | furniture testing equipment, temperature humidity test chamber |
TNJ-002B General Purpose Tester for tables and chairs is used to test the strength and durability of each part of furniture through each part of furniture is under one-off or repetitive load in the normal use or wrong use condition.It is used for testing the mechanical performance of all kinds of tables and chairs.
This test rig can be used for doing the horizontal/vertical static loading test and also can do horizontal /vertical durability test.
The tester adopts the structure of frame to design.The frame is made of high quality industrial aluminum, beautiful and generous.The adjustable part of the frame adopts pulley structure to design in order to adjust the loading position to adapt to different specifications of sample.The position handle is convenient to locate so that the tester can improve the efficiency of work.
The fixed block at the bottom can be adjusted freely different position to adapt to different specifications of sample.
TNJ-002B General Purpose Tester for tables and chairs adopts PLC controller to control the motion of the tester.It is simple to operate. Force value can be adjusted through the pressure changes in the precision pressure regulating valve.With high precision power sensor, it can induct the force value immediately.
Every load group can be adjusted to control by itself. Load force value is stable and reliable.The loading pad is dismountable so that it is convenient to change different pads to meet different test requirement.
Technical parameters:
Specification of frame:3m x 3 mx2.3m,(L×W×H), it is made of 80x80mm aluminum
Loading cylinders: Five horizontal and Five Vertical, diameter:50mm,route:300mm,
Loading force value(Max) on the theory: 1500Nþ Force value induction:high-precision power sensor Max Capacity:3KNþ (3000N)
Control way: PLC control
Air source: Air supply input is 0.4Mpa-0.8Mpa. (6kgf/cm^2 or above, supplied by customer themselves)
Applied standards: BS EN12521; BS EN 1730: 2012; BS EN1728:2012
This unit is a combined test rig designed and manufactured according to below test items:
Test items for tables:
BS EN12521 Furniture-Strength,durability and safety-Requirements for domestic tables-6. Stability,strength and durability test
BS EN 1730: 2012 Domestic Furniture - Tables Test Methods for Determination of Strength, Durability and Stability
6.2 | Horizontal Static Load Test | Quality Acceptance |
6.3 | Vertical Static Load | Need eye inspect and manual record if failed |
- 6.3.1 | Vertical Static Load on Main Surface | Need eye inspect and manual record if failed |
- 6.3.2 | Additional Vertical Load Where Main Surface has a length > 1600mm | Need eye inspect and manual record if failed |
6.4 | Horizontal Durability and Stiffness Test | Need eye inspect and manual record if failed |
- 6.4.2 | Horizontal Durability Test | Need eye inspect and manual record if failed |
6.5 | Vertical Durability Test | Need eye inspect and manual record if failed |
6.6 | Vertical Impact Test--vertical impactor (5.1) | Need eye inspect and manual record if failed |
- 6.6.3 | Vertical Impact Test for All other Table Tops | Need eye inspect and manual record if failed |
7 | Stability | Need eye inspect and manual record if failed |
7.1 | General | Need eye inspect and manual record if failed |
7.2 | Stability Under Vertical Load | Need eye inspect and manual record if failed |
- 7.2.2 | Tests for Tables that are or can be set to a height ≦ 950mm | Need eye inspect and manual record if failed |
- 7.2.3 | Tests for Tables that are or can be set to a height ﹥950mm | Need eye inspect and manual record if failed |
Standard :
EN1728:2012 6.17 | Combined seat and back durability test | Has test report for force,time,cycles |
-EN1728:2012 6.20 | Arm rest durability test | Has test report for force,time,cycles |
EN1728:2012 6.21 | Foot rest durability test | Has test report for force,time,cycles |
