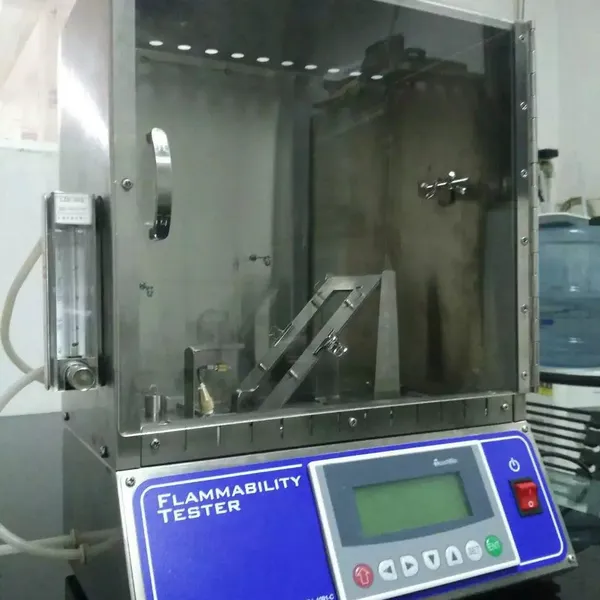

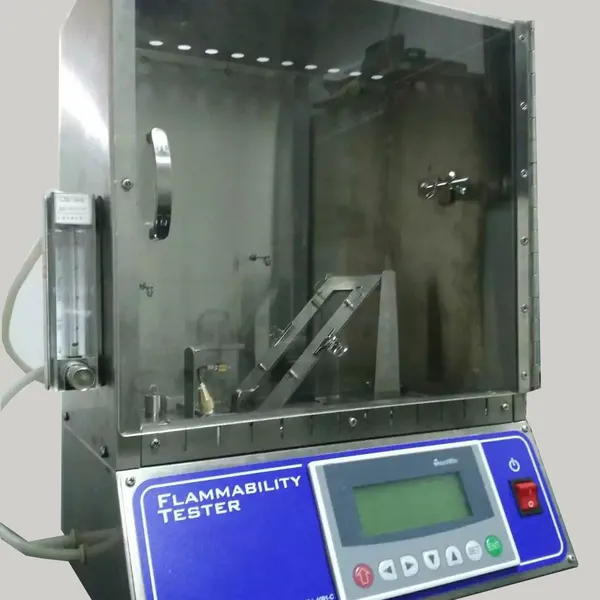

45 Degree Automatic Flammability Tester Fabric Burning Test Meet ASTMD1230
- 100 Piece / Pieces per Month
- SHENZHEN
- T/T L/C PayPal Other
- 15 days
- Sand Water Filter/Water treatment plants
- Automatic Doypack Seal Machine (insert and sealing machine)
- IPX3/IPX4 Hand-held Water Spray Nozzle Test Device IEC 60529
- IPX5,IPX6 Jet Nozzle of IEC 60529, Brass material
- Adjustable and multifunctional Spring Impact Hammer IK01-IK07 Level Tester
- Test probe 43 IEC 61032-Probe 43-Figure 17 Jusdtest
Product Details
Brand Name: | HTI / TONY | Place of Origin: | China | Model Number: | TW-227 |
Product Description
flammability testing equipment , laboratory testing machines , flammability test
45 Degree Flammability Tester , is to determine the fabric flammability (fabric burning test) under controlled conditions, complies with standards like ASTM D1230 / FTMS 191-5908 /CRF 16-1610/ CALIF TB 117 NFPA 702 / ISO 8124-2
Purpose of equipment
45 degree flammability tester, check the flammable performance of the textile

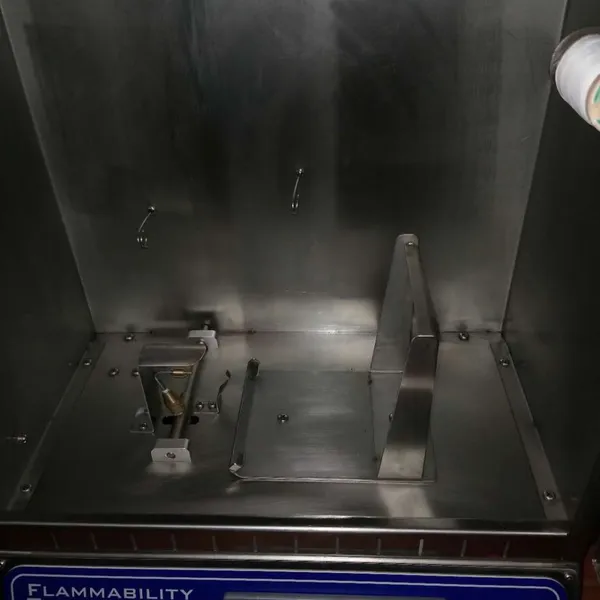

45 degree flammability tester stainless testing room with glass window, after ignition automatic time (0.01 second precision) automatic or manual ignition.
Technical specifications

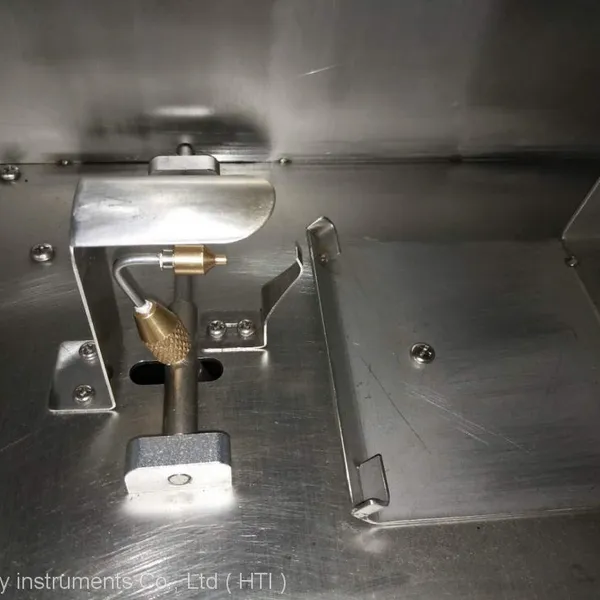

Manual firing device | including sample holder and brushing device |
Spread time scope | 0-99.99s |
Firing time | 1s or specified |
Resolution | 0.01s |
Igniter model | comply to ASTMD1230 |
Machine Size | L 40cm*W 23cm* H55cm |
Weight | 15KG |
Power Supply | 220V |
Standard Configuration:
45 degree flammability tester 1 pcs
Powercord 1 pcs
Brush device 1 pcs
Burning units 1 pcs
Butane gas 1 bottle
Cotton thread 1 roll
Fixture 4 pcs
Plate 1 pcs
Weights 1 pcs
Flame caliper 1 pcs
Operating manual 1 brochure
Feature:

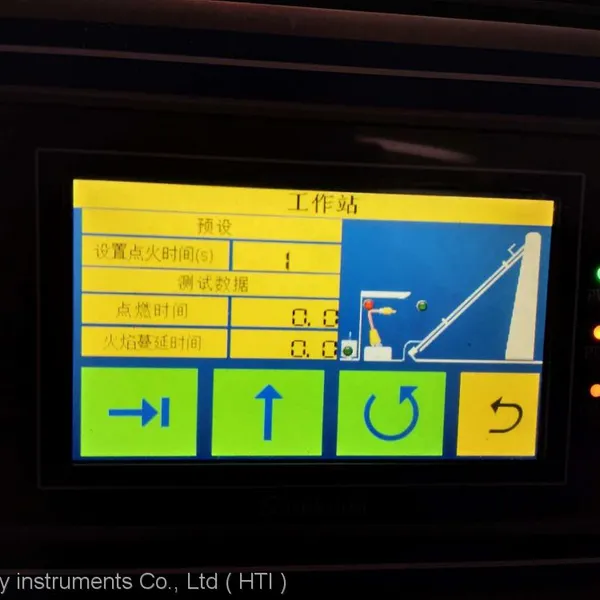

LCD display of time;
Stainless steel structure, convenient to clean;
Flow-meter for adjusting flame height;
Heat-resistant glass window, convenient to operate and observe;
Metal buttons, beautiful, elegant and not easy to break;
Standards:
ASTM D1230 / FTMS 191-5908 / CRF16-1610 / CALIF TB 117 NFPA 702
