UL 94 Vertical Horizontal Flammability Tester Plastics Flame Chamber HTB-066

Flame Chamber / PLC Control Flammability Testing Equipment / Flammability Tester

UL 94 Horizontal & Vertical Flammability Tester for Plastic Materials , Nonmetallic

Purpose of equipment

Horizontal Flammability Tester is used to test textile and material used in vehicles horizontal burning rate when exposure to a small flame.

UL94 Horizontal & Vertical Flammability Tester (flammability chamber), used to determine the flammability of plastic materials for parts in devices and appliances. UL94 Horizontal & Vertical Flammability Tester complies with UL HB, UL94, IEC 60695-11-10, etc.

Technical specifications

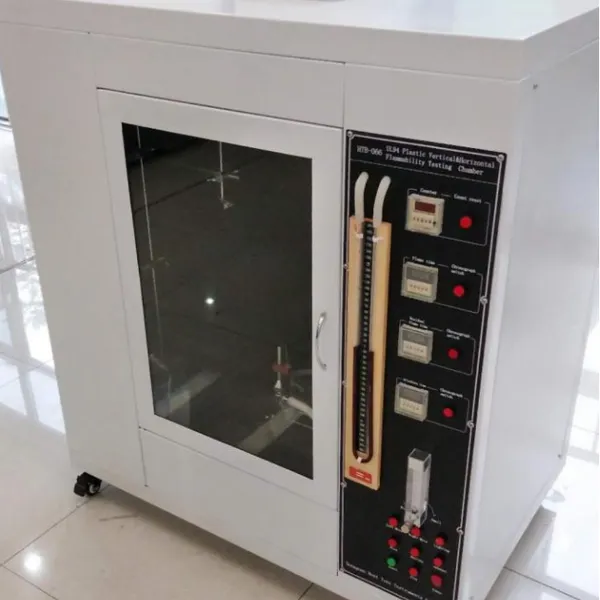

A bench mounted draft free combustion chamber having a large inside volume of 1.0m3 and fitted with an interior light and exhaust fan to enable simple evacuation of combustion products.
Large door and window made from toughened safety glass giving a generous view of the specimen during a test.
Specimen holders.214
Fully adjustable horizontal and vertical specimen supports.

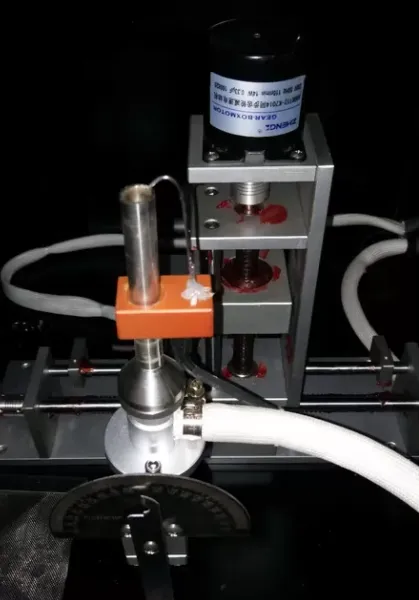

A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator and pressure gauge.
Two access ports enabling easy entry to the chamber for movement of the burner and specimen.
A burner wing tip.

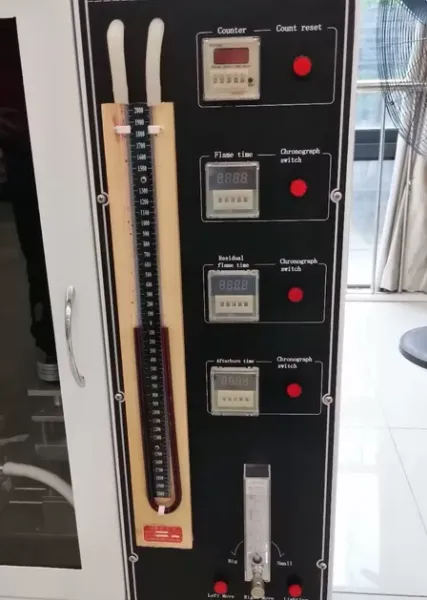

Three digital test duration timers for accurate but simplified operation

Feature:

1. Volume of test chamber larger than 1.0m3;

2. Large observation window, easy to observe burning state;

3. Humanization design, easy to adjust specimen and burner;

4. 0°, 20°, 45°angle of burner is adjustable;

5. Bunsen burner igniting source, as per ASTM D5025;

6. Record test time by timer on control panel;

7. Adjust burning gas flow by rotor flow meter ;

8. High accuracy pressure regulating valve to provide needed gas pressure;

9. Equipped with gas suction device to remove waste gas;

Standards:

UL HB UL 94 V0 UL 94 V1 UL 94 V2 UL 94 5VA
UL 94 5VB UL 94 VTM-0 UL 94 VTM-1 UL 94 VTM-2 UL 94 HF-1
UL 94 HF-2 UL 94 HBF IEC 60695-11-10 IEC 60707 ISO 1210
ISO 9770 ISO 9772 ISO 9773 GB/T 2408 GB/T 8332
