Help Center30kV 300nF HV Capacitor , High Voltage Pulse Capacitor,PSE11024 0.3uF 30000Volts DC
Related Products
-
30kV 320nF HV Capacitor 0.32uF, High Voltage Pulse Capacitor,PSE11025 0.32MFD 30000Volts DCNegotiableMOQ: 10 Pieces -
30kV 400nF HV Capacitor 0.4uF, High Voltage Pulse Capacitor,PSE11026 0.4MFD 30000Volts DCNegotiableMOQ: 10 Pieces
-
30kV 500nF HV Capacitor 0.5uF, High Voltage Pulse Capacitor,PSE11028 0.5MFD 30000Volts DCNegotiableMOQ: 10 Pieces
-
30kV 600nF HV Capacitor 0.6uF, High Voltage Pulse Capacitor,PSE11031 0.6MFD 30000Volts DCNegotiableMOQ: 10 Pieces
-
30kV 1000nF HV Capacitor 1.0uF, High Voltage Pulse Capacitor,PSE11031 0.6MFD 30000Volts DCNegotiableMOQ: 1 Piece

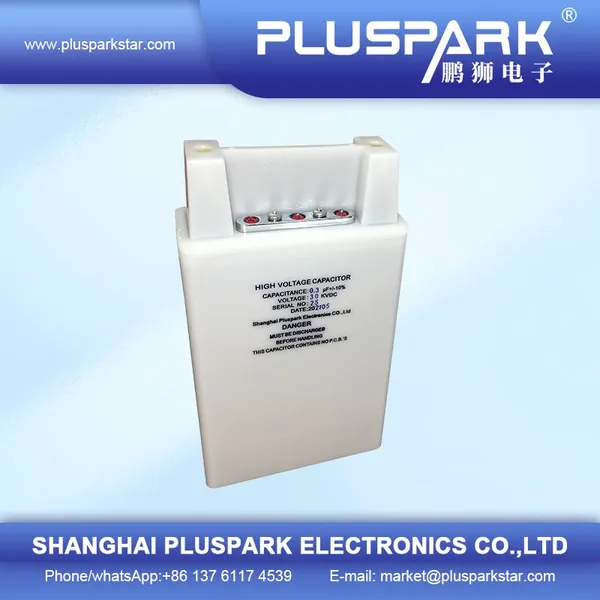

30000V 300nF High Voltage pulse capacitor 0.30uF/30kV
ISO9001:2015 Certified Professional “Pluspark” brand HV Pulse capacitor 300nF 30kV , Rep-rate≤1Hz, Plastic case ,Low inductance for high voltage,pulse power supply like medical equipment ,X-Ray , laser machine ,Marx generator ,Research and pulse discharge and so on. .Single-ended or double-ended is available for your option at Pluspark company .
Description: HV capacitor 30000V 0.3µF ,10%
Specification:
Family |
High voltage Pulse capacitor |
Capacitance-in µF |
0.30µF |
-mircofarad |
0.3MFD |
-in nF |
300nF |
Rated Voltage (DC) |
30kVDC |
30000V | |
Capacitance Tolerance |
±5%,±10% |
Part number |
PSE11024 |
Alternative P/N.: |
HV Capacitor |
Case size |
58×155×275mm |
Brand |
Pluspark |
Rep-rate |
1Hz (1pps) |
Terminal |
Single-ended with rails |
Case |
Plastic case |
Features |
Low inductance |
Application |
High Voltage Pulse power supply, |
Manufacturer/Supplier |
Shanghai Pluspark Electronics Co.,Ltd |
Rating of 30000V HV pulse capacitor 50nF~1000nF items :
30000V 50nF 0.05µF HV capacitor P/N.: PSE11019
30000V 60nF 0.06µF HV capacitor P/N.: PSE11020
30000V 100nF 0.1µF HV capacitor, P/N.: PSE11021 In stock
30000V 160nF 0.16µF HV capacitor, P/N.: PSE11022 In stock
30000V 200nF 0.2µF HV capacitor P/N.: PSE11023 In stock
30000V 300nF 0.3µF HV capacitor P/N.: PSE11024 In stock
30000V 320nF 0.32µF HV capacitor P/N.: PSE11025 In stock
30000V 400nF 0.4µF HV capacitor P/N.: PSE11026 In stock
30000V 500nF 0.5µF HV capacitor P/N.: PSE11027 In stock
30000V 600nF 0.6µF HV capacitor P/N.: PSE11030 In stock
30000V 1000nF 1.0µF HV capacitor P/N.: PSE11031 In stock
More 30kV capacitor items can be produce as for your special requirement. contact Pluspark now ..
