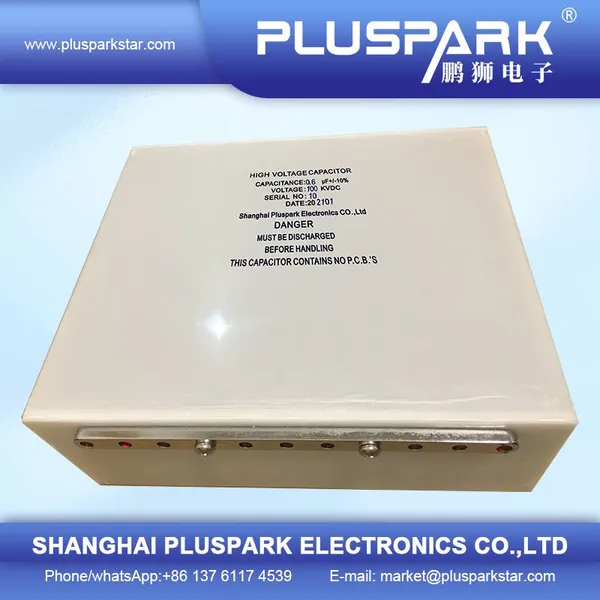

100000V 600nF High Voltage pulse capacitor 0.6uF/100kV
ISO9001:2015 Certified Professional “Pluspark” brand HV Pulse capacitor 600nF 100kV , Double-ended, Plastic case ,Low inductance for high voltage,pulse power supply like laser machine ,Marx generator ,Research and pulse discharge and so on. .
Description: HV capacitor 100000V 0.6µF ,10%
Specification:
Family |
High voltage Pulse capacitor |
Capacitance-in µF |
0.6µF |
-mircofarad |
0.6MFD |
-in nF |
600nF |
Rated Voltage (DC) |
100kVDC |
100000V | |
Capacitance Tolerance |
±5%,±10% |
Part number |
PSE11080 |
Alternative P/N.: |
HV Capacitor |
Case size |
150×400×360mm |
Brand |
Pluspark |
Rep-rate |
1Hz (1pps) |
Terminal |
Double-ended with rails |
Case |
Plastic case |
Features |
Low inductance |
Application |
High Voltage Pulse power supply, |
Manufacturer/Supplier |
Shanghai Pluspark Electronics Co.,Ltd |
Rating of High voltage pulse capacitor 100kV/0.008µF~0.6µF items :
100kV 0.6uF high voltage pulse capacitor 100000Volt DC 600nF,
100kV 0.4uF high voltage pulse capacitor100000Volt DC 400nF,
100kV 0.3uF high voltage pulse capacitor100000Volt DC 300nF,
100kV 0.2uF high voltage pulse capacitor 100000Volt DC 200nF,
100kV 0.12uF high voltage pulse capacitor 100000Volt DC 120nF,
100kV 0.1uF high voltage pulse capacitor 100000Volt DC 100nF,
100kV 0.08uF high voltage pulse capacitor 100000Volt DC 80nF,
100kV 0.06uF high voltage pulse capacitor 100000Volt DC 60nF,
100kV 0.04uF high voltage pulse capacitor 100000Volt DC 40nF,
100kV 0.035uF High voltage pulse capacitor 100000Volt DC 35nF,
100kV 0.02uF high voltage pulse capacitor 100000Volt DC 20nF,
100kV 0.01uF high voltage pulse capacitor 100000Volt DC 10nF,
100kV 0.008uF high voltage pulse capacitor 100000Volt DC 8nF,
More 100kV capacitor items can be produce as for your special requirement. contact Pluspark now ..
