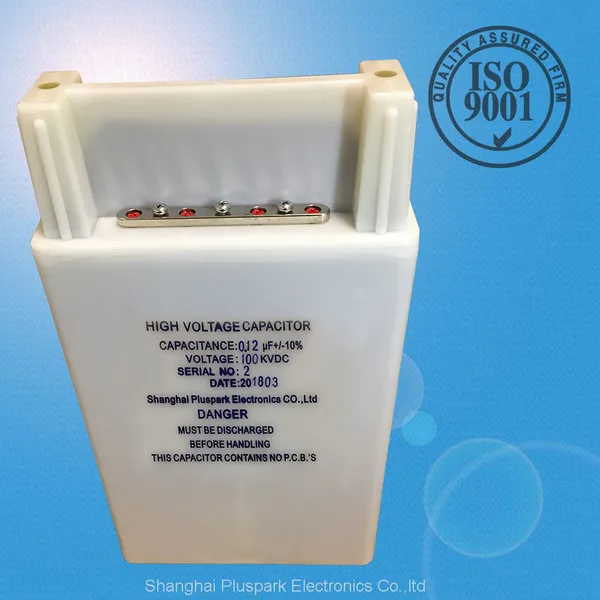

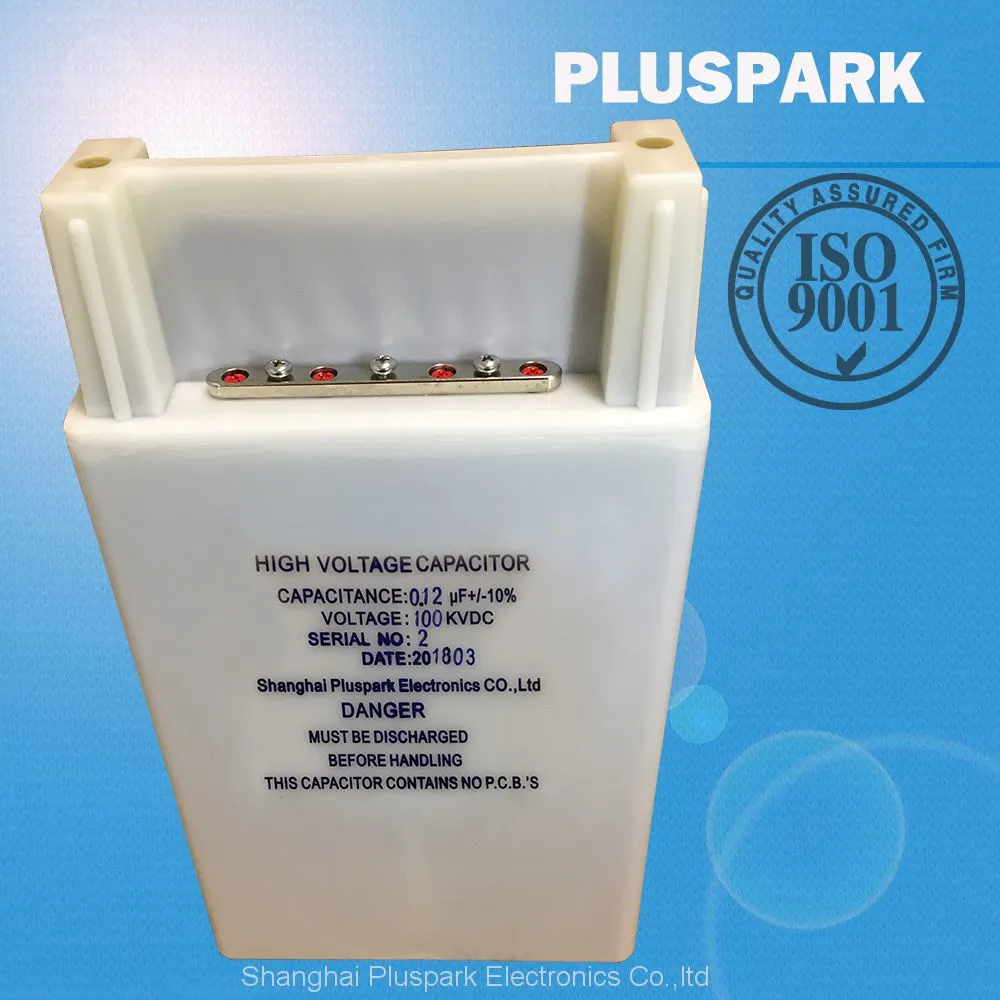

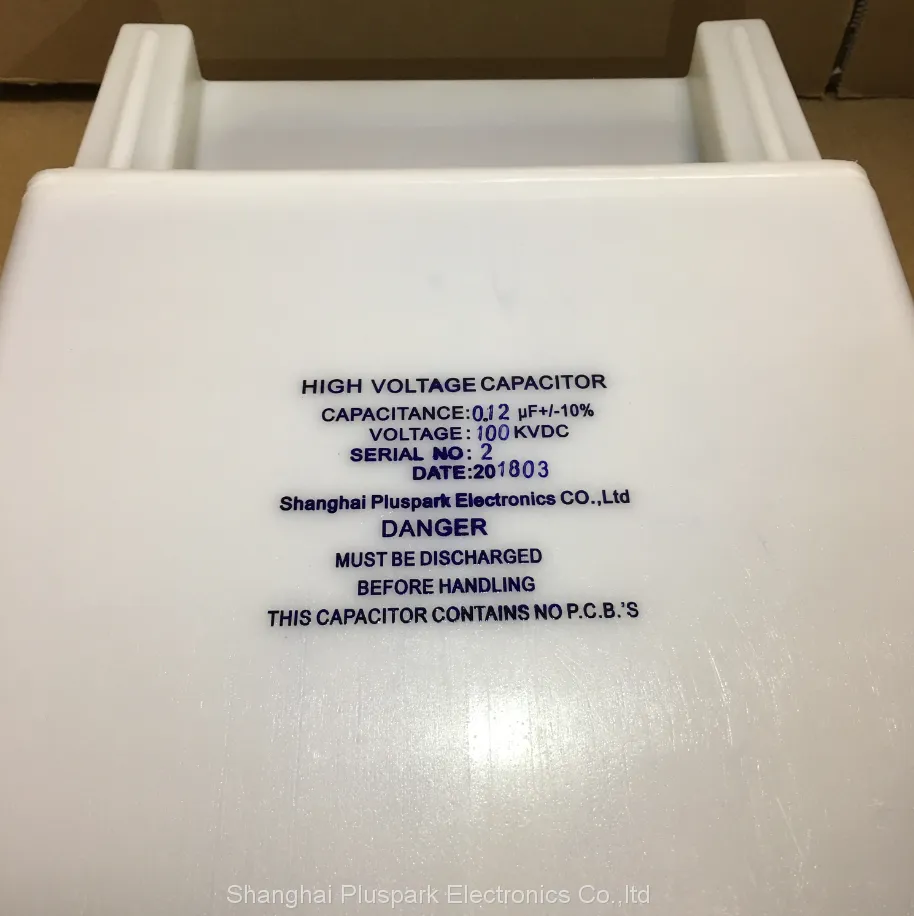

100kV 0.12MFD Capacitor ,High voltage capacitor 0.12µF 100kV/120nF
ISO9001:2015 Certified high voltage capacitor manufacturer & Supplier Shanghai Pluspark Electronics Co.,ltd , offer the high voltage pulse capacitor 0.12µF 100kV item ,( 120nF /100000VDC ),Low inductance , with repeatitive-rate : 1Hz for pulse power supply , marx generator application .
| Family | High voltage pulse capacitor |
| Capacitance-in µF |
0.12µF,0.12MFD |
| -in nF | 120nF |
| Rated voltage | 100kV, 100000VDC |
| Capacitor's capacitance | ±10%(K) ,±5% (J ) |
| Terminal | Single-ended, |
| Repeatitive-rate | 1pps |
| Alternative | HV Capacitor |
| Original Brand | Pluspark |
| Manufacturer/Supplier | Shanghai Pluspark Electronics Co.,ltd |
Rating of 100kV Capacitor item :
HV pulse capacitor 100kV/ 1µF, 0.6µF, 0.4µF, 0.2µF, 0.12µF, 0.1µF, 0.08µF, 0.06µF, 0.04µF, 0.02µF, 0.01µF, 0.008µF,
(1000nF, 600nF, 400nF, 200nF, 120nF ,100nF , 80nF, 60nF, 40nF, 20nF, 10nF, 8nF )
We can make special production upon your request for HV pulse capacitor items at Shanghai Pluspark Electronics company.
Please contact us for the latest price and stock information for HV capacitor items .
