Rail Joints, other names are railway fish plate and splice bar, joint bar and angle bar. it is a metal joint bar functions by connecting the ends of two rails sectoins together with rail bolt.
Rail fish plate can increase the continuity and steadiness for track sections when the train is passing through by largely reduce the impact of wheels to the jointing sections of the rail tracks. This rail connectiong component is a key part for railroad transportation safety insurance.

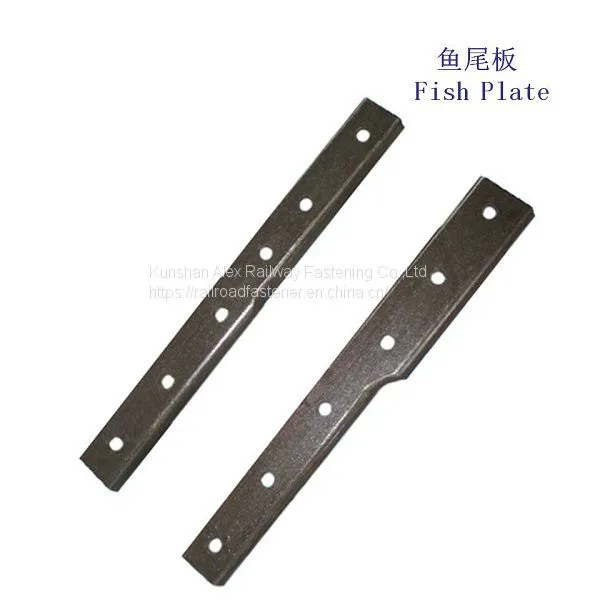

Main Types for Fish Plates
Normal type:
Kunshan Alex supply more than 30 types of rail joints, according to different standards:
Rail joints for light rail: 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg and 30kg
Rail joints for heavy rail: 38kg, 43kg, 50kg and 60kg
-
Rail joints for crane rail: QU70, QU80, QU100 and QU120

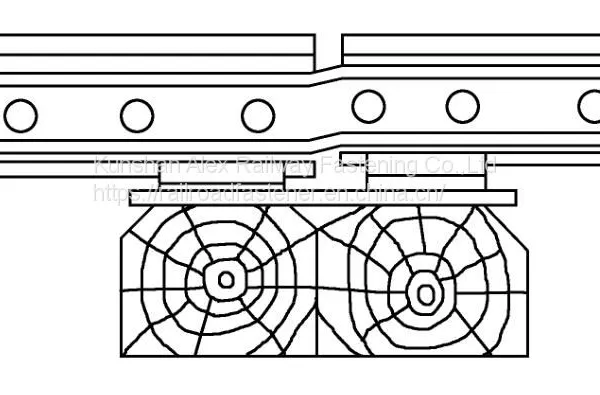

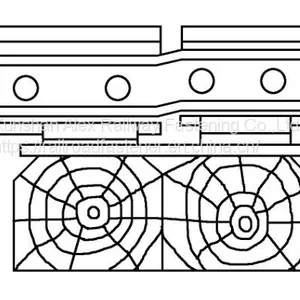

Compromise joint bars customised in China

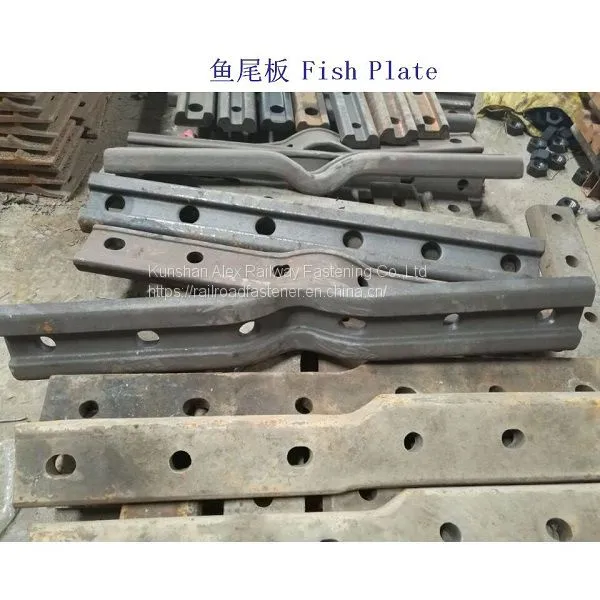

Compromise joint bars are one kind of special rail joint bar. As we know, normal rail joint bars are the components involved in railway applications that connect different sections of rails together while maintaining gauge and keeping the alignment of rail surfaces. Unlike normal rail joint bar, compromise joint bars are used for joints of abnormal rails.
There are two kinds of compromise joints:
Directional (Right or Left hand) compromise rail joint bar is used where a difference in the width of the head between two sections requires the offsetting of the rail to align the gauge side of the rail.
Non-directional (Gauge or Field Side) joint bar is used where the difference between sections is only in the heights of the head or where the difference in width of rail head is not more than 1/8" at the gauge point. Gauge point is the spot on the gauge side of the rail exactly 5/8" below the top of the rail.
Kunshan Alex Railway Fastening Co.,Ltd has more than 20 years of technology in manufacturing rail fish plate in almost all standards, and we have exported all types of fish plate for various applications, quality has been tested and approved by South American, European and Southeast Asian markets and in China mainland. We have the capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54, U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc.
Supplying fish plate according to international standards such as BS, ASTM and DIN, and others. We have equipment for rolling, forging, machining, and drilling and punching to customize rail fish plate sizes for drawings supplied by customer.
Quality Control
Quality of ALEX rail joints is guaranteed by a special heat treatment. When the train is running, rail joints (railway fish plates) play an important role in connecting and fastening rails as well as keeping the integrity of rails. While the speed and load of rails are increasing, it requires a higher performance to the property of rail joints.
A rail joint can connect two rails with six bolts. Relying on the up and down shoulder slopes and the fastening with rails, it can support the large load during the train’s runtime, the fretting wear and other complex stresses.
The property of railway joints always changes with the rate of cooling. What’ s more, during the heat treatment , the hardness and the impact of rail joints can be different according to the degree of water quenching.
After pouring were conducted, two types of the process which are called immediate quenching and tempering processes can give out some important information. Because of the slow drop of temperature, it can lead to a high degree of the hardness. So the mechanical property of rail joint becomes more advantageous.
Kunshan Alex Railway Fastening Co., Ltd. is an ISO 9001/2015 certified company. All processes are in accordance with the requirements of the ISO quality management system. From raw material to the finished products, we operate in accordance with standard procedures. We have strict quality control systems for suppliers:
1. Strictly inspection and testing of raw materials
2. Regularly organize quality control coordination meetings with semi-product suppliers to provide technical support.
3.Both sampling and batch testing will be taken while producing to make sure products 100% qualified before shipment.
Certificate:
Other Certificates available on request.
Workshop shown:
Packing for fish plate
After sales:
We promise to provide replacement service for the products with non-artificial quality problems (except force majeure) during their period of quality assurance.
FAQ
Q: Are you manufacturer or trader?
A:We are manufacturer and trader, company located in Kunshan ,Jiangsu Province, China, about 2 hours take taxi from Shanghai airport.
Q: Do you provide samples?
A:Yes, we offer sample for approval before each order.
Q: What's your payment term?
A: 30% deposit by T/T , balance against B/L copy, Payment term is negotiable based on different order products and quantity.
Q: How long is your delivery time?
A: Generally 20-30 working days after receiving deposit or the original L/C. Could be re-schedule under really urgent case.
Q:Can we visit your factory?
A:Of course, you're warmly welcomed. Once we have your schedule, we can arrange everything in advance.
Contact details:
If you have any other questions, pls feel free to contact us as below:
Company name: Kunshan Alex Railway Fastening Co., Ltd.
Address: No.1255 Chengbei Road, Yushan town, Kunshan City, Jiangsu Province, China.
Tel: 0086 512-83639017
Fax: 0086 512- 83639019
Skype/whatsapp/wechat: 86 18914971437
