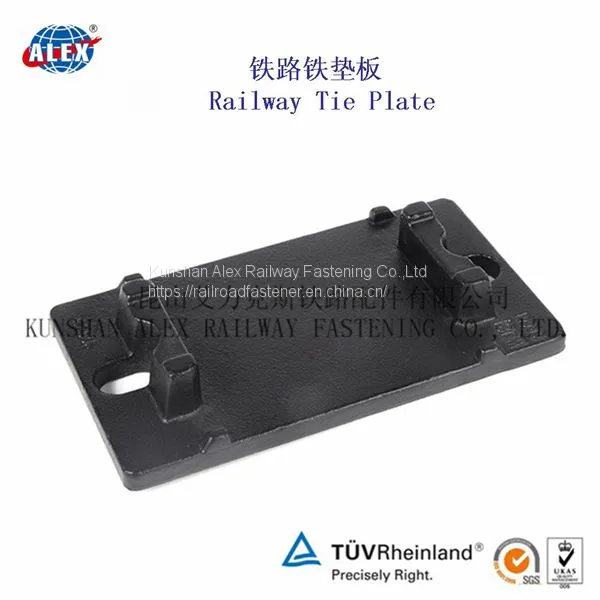

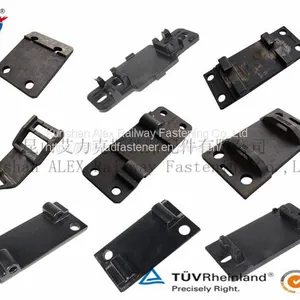

Tie Plate of High speed WJ-8 rail fastening system for ballastless track with shoulder

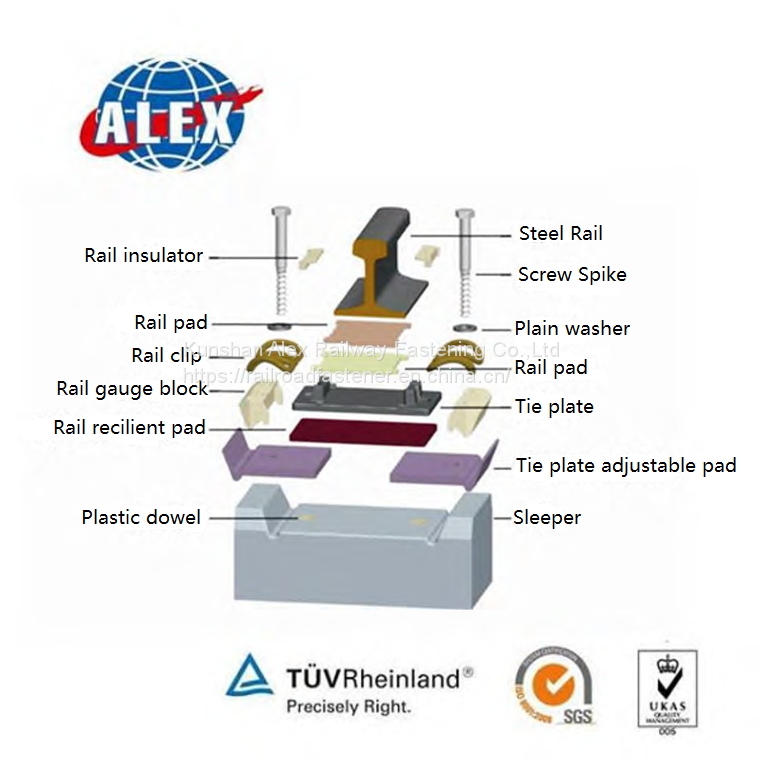

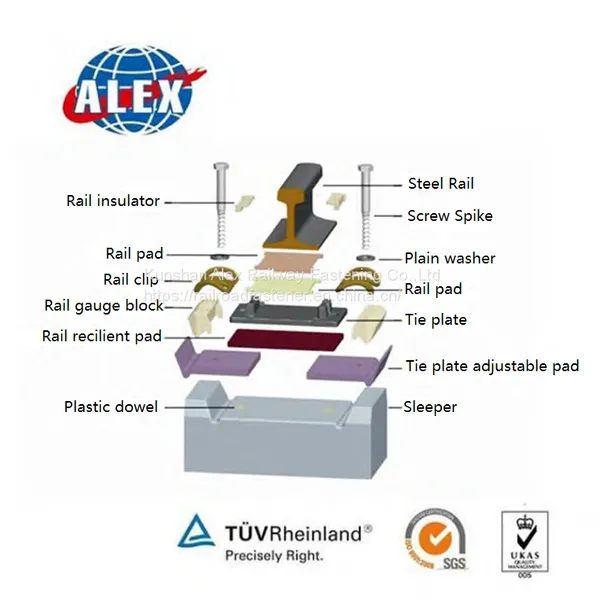

High speed WJ-8 rail fastening system is designed for ballastless track with shoulder. It is composed of screw spike, flat washer, elastic rail clip, rail insulator, rail gauge block, rail tie plate, rail pad, and rail plastic dowel. Besides, rail adjustable pads are required because of steel rail position adjustment. WJ-8 rail fastening system is a non-separated rail fastening system with a tie plate. The concrete sleeper or rail ditch is provided with a concrete shoulder. The load from train transfer from the rail tie plate and the gauge block to the concrete shoulder, which reduce the effect of lateral load, so that the structure is more stable.

Rail tie plates are used not only to support the rails, but also to fix the entire rail fastening systems. It works together with screw spikes of WJ8 system by sustaining the load of a rail track and also transferring part of the load to the tie sleepers, with a flat smooth resting surface to guarantee the vertical alignment and hold the rail in correct gauge for a rail line system.

Material: QT450-10 or similar

Application: is one part of Elastic clip railroad fastener set

Surface: Plain Oiled, Oxygen Black

Produce Type: Sand casting, Hot Forging

Why choose us

01  We are a professional ,manufacturer of Railroad tie plate/base plate, we know many kinds of railroad tie plate, we can meet your customized requirements in details.

02  We have workshop, do every step from purchasing material to shipment all by our team, so our prices are the most competitive under same quality.

03  Our lead time can be adjust to match your different schedule of different products. Normally 20-30 days is available in producing, inspection, and packing.

04  We care about the safety of using our products, with all our workers and technicians working together, it is guaranteed that our railway products reach the international standards, such as AREMA,GB, BS, UIC, DIN, etc.

Quality Control

Kunshan Alex Railway Fastening Co., Ltd. is an ISO 9001/2008 certified company. All processes are in accordance with the requirements of the ISO quality management system. From raw material to the finished products, we operate in accordance with standard procedures. We have strict quality control systems for suppliers:

1. Strictly inspection and testing of raw materials

2. Regularly organize quality control coordination meetings with semi-product suppliers to provide technical support.

3.Both sampling and batch testing will be taken while producing to make sure products 100% qualified before shipment.

Certificate:

Other Certificates available on request.

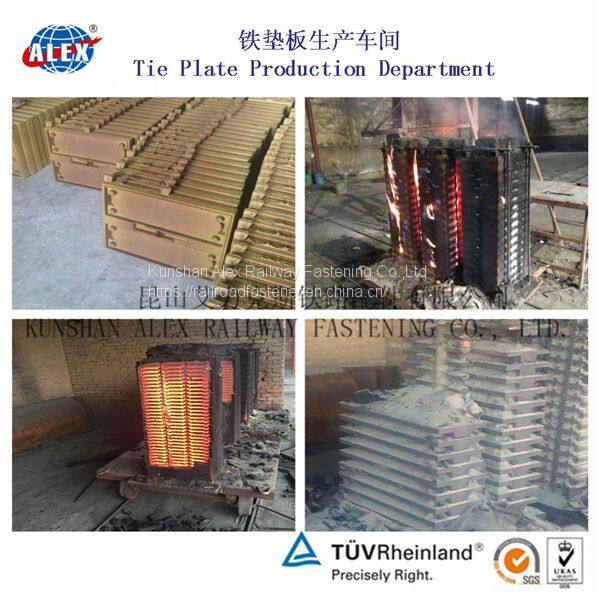

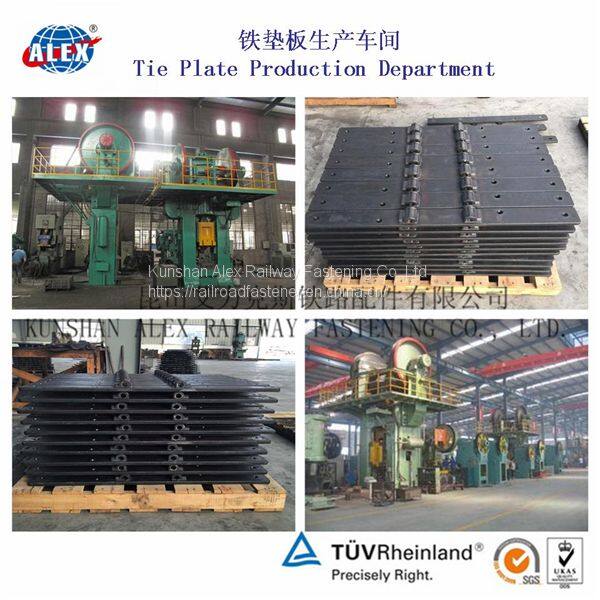

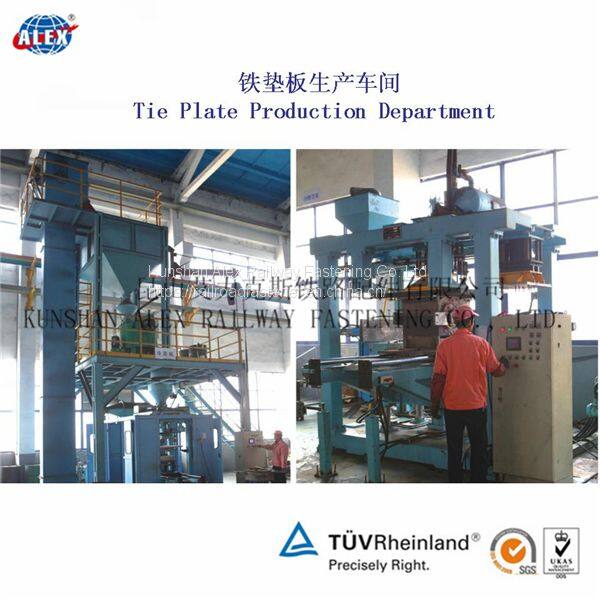

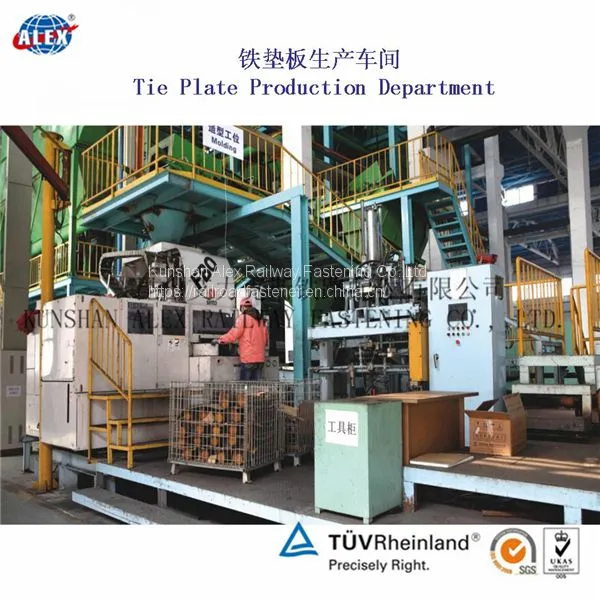

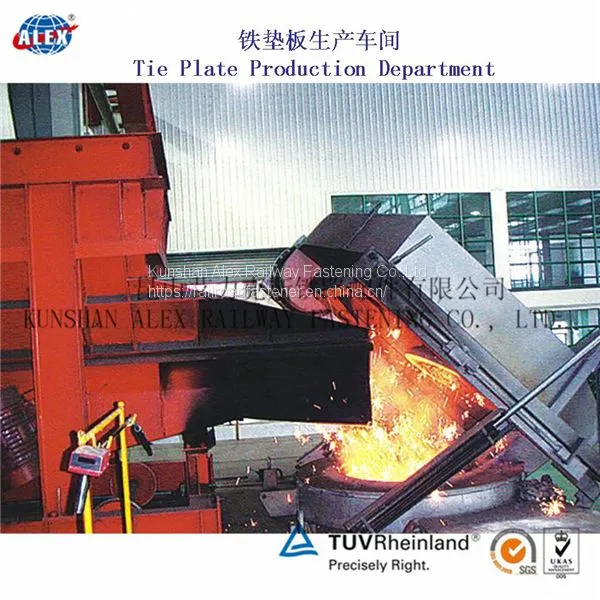

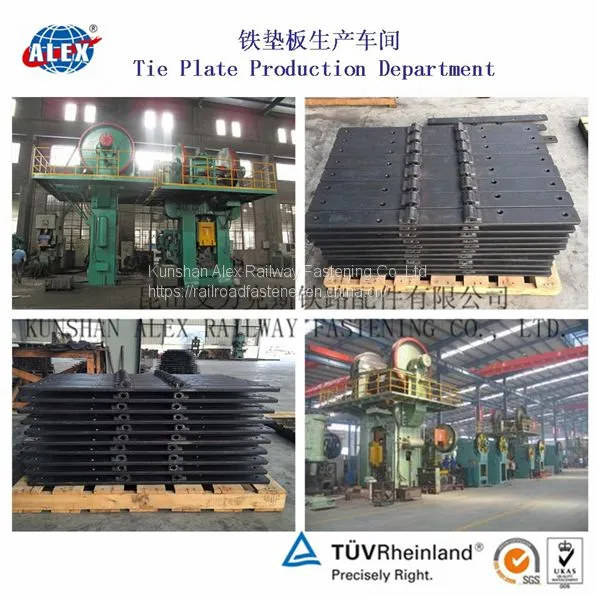

Workshop shown:

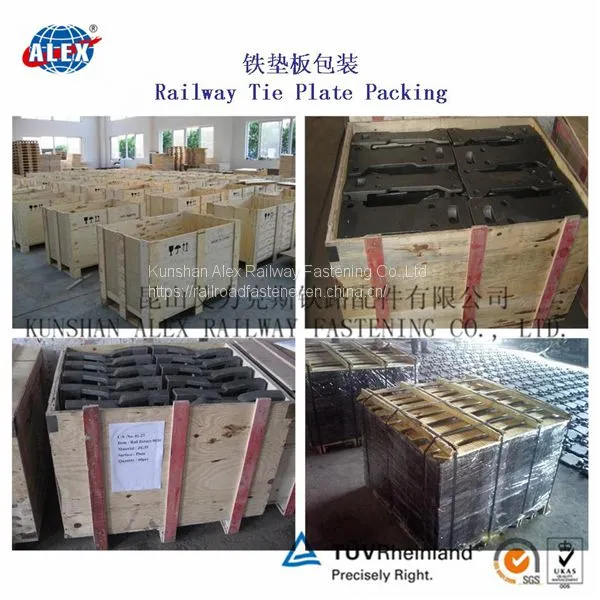

Packing Details: Fumigation free wooden box ,or as per client's requirement
