Home > Products > CNC Router > Atc CNC Router 1325 Woodworking Machine Furniture Making

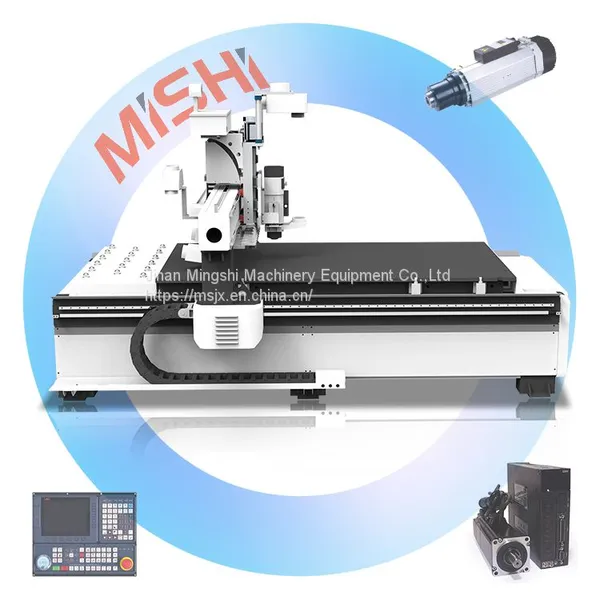

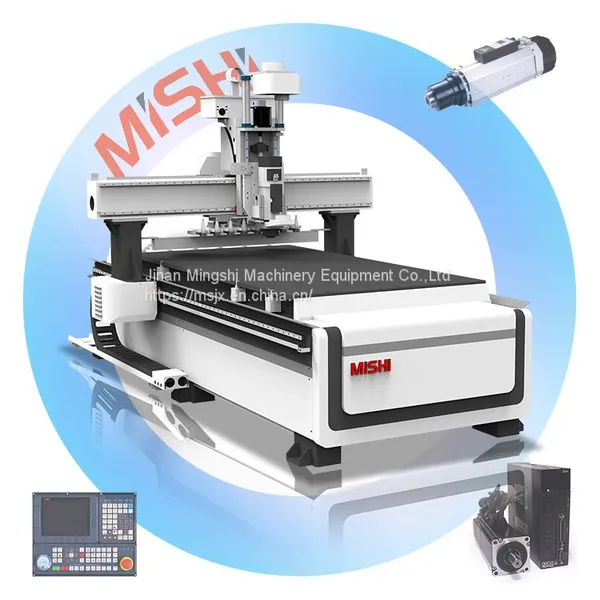

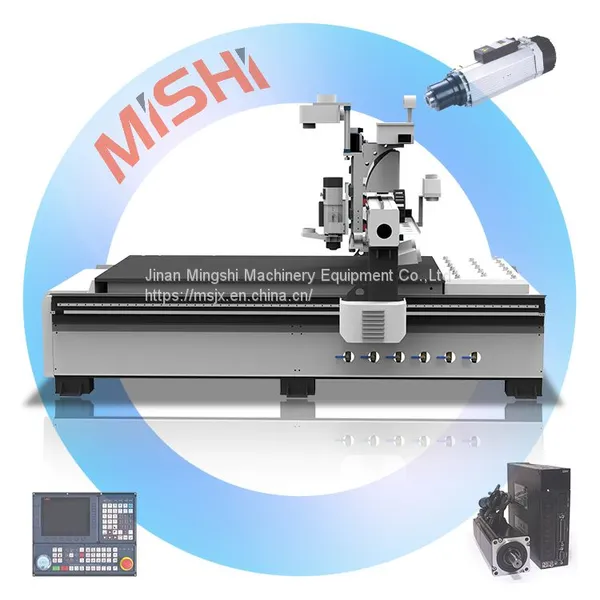

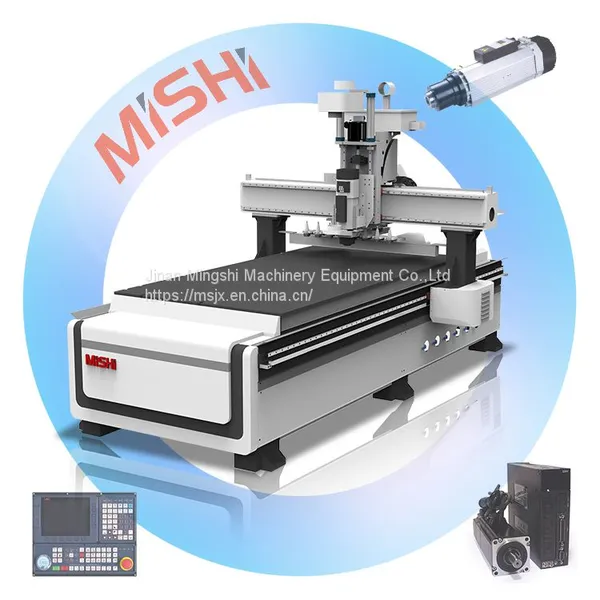

Atc CNC Router 1325 Woodworking Machine Furniture Making

FOB Price

US$ 8500 - 9000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Mingshi	Place of Origin	China
Model Number	MS-MZATC	Certification	CE
After-sales Service Provided	No overseas service provided	Warranty	3year
Weight	2500kg	Dimension(LWH)	13002500200mm
Voltage	AC380V, 50Hz, 3HP, three items and four wires	Condition	New
Power(W)	JST 9kw automatic tool change spindle	CNC or Not	CNC

*1325 in line tool change center*
Machine type	MS-MZATC
Operating Voltage	AC380V 50HZ 3HP three four-wire
Work plan	*X1250Y2480Z200mm*
Maximum empty travel speed	XY50000mm/min Z20000mm/min
Working speed	15000-30000mm/min
Table structure size	*Vacuum adsorption table 12602480 6 partitions 24 holes**
Bed structure	Heavy-duty double-layer unloading trapezoidal bed
Transmission	Rail 25 square rail
	Rack High precision 1.5M helical gear
	Reducer Japan's new treasure
	Screw Taiwan TBI
Tool library	12-tool follow-up tool magazine ISO30
Frequency converter	Shenzhen Tetran 11kw
Spindle power	JST 9kw automatic tool change spindle
Spindle speed	0-18000rmp
Motor	Shenzhen LEADSAHINE 1000w servo
Run command	G code
Operating system	Taiwan LNC MW2200 system
Total Weight	2.5t
Plate fixing	7.5kw water circulation vacuum pump
Dust removal	5.5kw high power vacuum cleaner
Assist	Automatic feeder for secondary dust removal
	Positioning 2+3 right-angle positioning
	Tool setting Fully automatic one-key tool setting
	Z-axis counterweight, pneumatic zero-gravity cylinder

Advantage Features:

1. Adopt domestic water cooling spindle of big

power(option: Italy HSD 8KW air cooling spindle)

2.High accuracy, long service time, steady movement

and good starting performance, great torque, fufilling the

advantage of working with fast speed and low noise.

3.Japan YASKAWA servo motor ensures machine to run

with fast speed and low noise

4.Unique auto tool changer system can change tools

alternatively, tool sensor to compensate the tolerance of

tool length

5.Tool magazine capacity of 8tools, changing tools only

takes 8 seconds
