Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > Atc Cnc Router ATC-1325-T3

Atc Cnc Router ATC-1325-T3

US$ 2,000 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Place of Origin:

Anhui, China

Contact Supplier Request Quote Chat Now

Hefei Kaxing Digital Control Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/nanjing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Place of Origin Anhui, China

Model Number ATC-1325-T3

Voltage 220V/380V

Power(W) 4.5KW

Dimension(L*W*H) 1300*2500*200

Weight 900KGS

Certification BV,ISO,CE,ROHS

Warranty 1YEAR

After-sales Service Provided Overseas third-party support available

Specifications

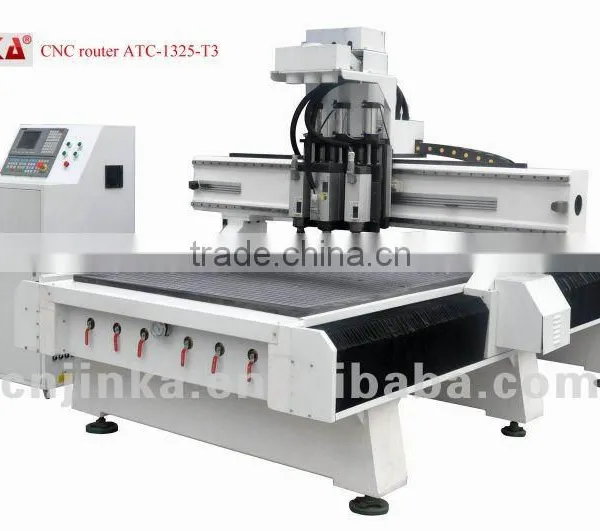

atc cnc router ATC-1325-T3
It can process cutting, hollowing-out without changing the tool with higher precision and efficiency

atc cnc router ATC-1325-T3

Features:

ATC 3 process engraving machine has the higher precision and efficiency to process complicated pictures, crafts by holding the 3 engraver tools which can process the cutting, hollowing-out etc. 3 different working procedure without changing the tools.

Technical Parameter:

ATC-1325-T3
Specification		Parameter
working area	X axis	1300mm
	Y axis	2500mm
	Z axis	160mm
Precision	X,Y,Z Traveling Positioning Accuracy	±0.05mm
	X,Y,Z repositioning Positioning Accuracy	±0.02mm
Structure	Lathe structure	vacuum absorption into 6 areas
	X,Y & Z axis structure	X,Y axis gear rack, Z axis rolling ball screw transmission.
Speed	Max. idle speed	40000/min
	Max. processing speed	20000mm/min(X&Y axis), 15000mm/min(Z axis)
Spindle	Power	3KW, 4.5KW, 6KW(it's specified by customer)
	speed	0-18000rpm/min
Feeding height		210mm
Driving motor		Yashawa AC servo system
working voltage		AC380V/50Hz
File Format		G-code
Contol system		Taiwan Syntec and NC Studio control system
Power of vacuum		5.5KW
Power of dust collector		2.2KW
Software		compatible withType3/Artcam/Castmate/CAXA/UG/Pro-E/Mastercam/Ucancam etc.
Running circumstance		Temperature: 0°C~45°C Relative humidity: 30%~75%
Waranty		1 year
Dimension		360021402000mm
Net weight		2500kg
Gross weight		2800kg

Application Field:

1. Wooden door, furniture and decoration;

2. Wooden crafts making;

3. Electronic:electrocircuit, insulation materials, LED screen, family appliance shell and model carving;

4. Musical instrument;

5. EVA processing: carving and hollowing of VA material packing tools, medical apparatus, electronic products, carving and hollowing-out of glassware lining,etc.
