Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > Metal Cutting Machine Engraving Metal Machine

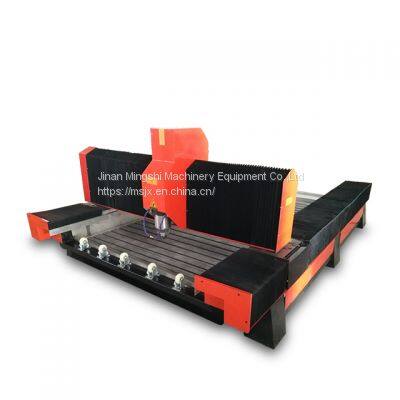

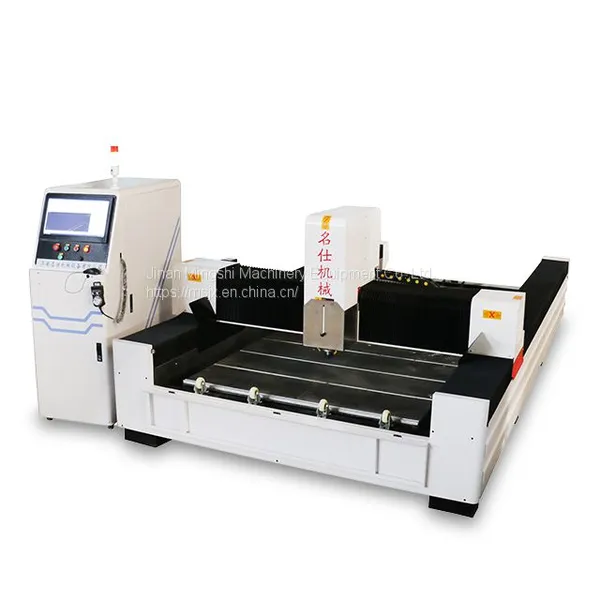

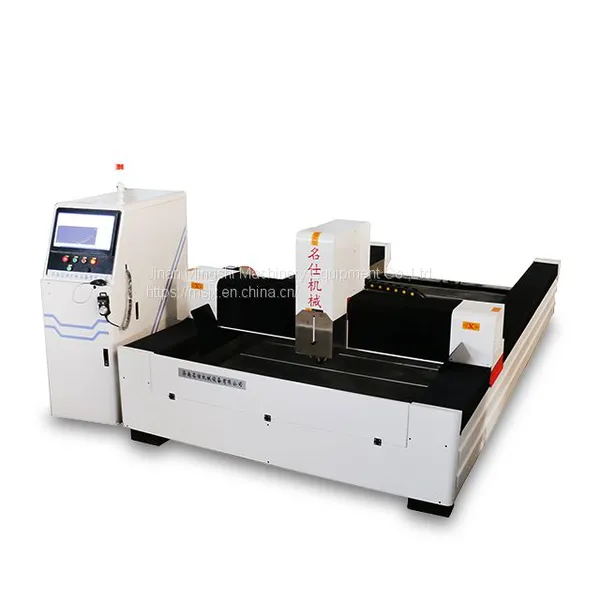

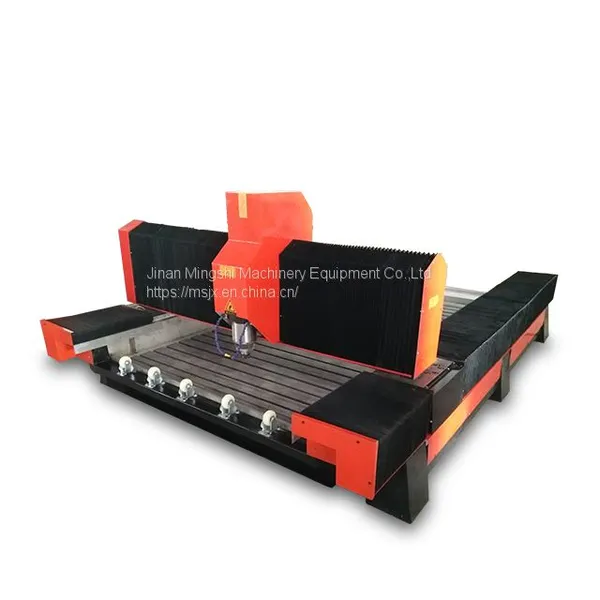

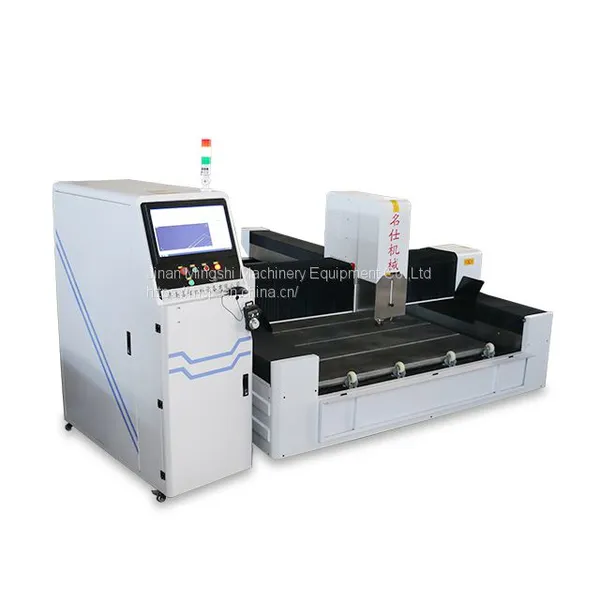

Metal Cutting Machine Engraving Metal Machine
US$ 8000 - 9000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Mingshi
Place of Origin:
China
Model Number:
MSJ1540
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Related Products
-
Atc CNC Router 1325 Woodworking Machine Furniture MakingUS$ 8500 - 9000MOQ: 1 Set -
New Design China Woodworking Machine Manufacturers 3 Axis Cnc RouterUS$ 2500 - 3200MOQ: 1 Set
-
4*8ft Cnc Router Woodworking Machine 4 Axis 1325 Atc Cnc Wood Router for ExportUS$ 8500 - 9000MOQ: 1 Set
-
Cnc Router Woodworking Machinery Wood RouterUS$ 2500 - 3200MOQ: 1 Set
-
2.5D 3D Fiber Laser Metal Engraving Machine 20W 30W 50W 80W Jpt Raycus Max Laser Marking Machine for Metal Stainless SteelNegotiableMOQ: 1 Set
Brand Name
Mingshi
Place of Origin
China
Model Number
MSJ1540
Certification
CE
Warranty
1 year
Weight
2500kg
Dimension(L*W*H)
2200*3200*1500mm
Voltage
AC380V, 50Hz, 3HP, three items and four wires
Condition
New
Power(W)
JST metal special spindle 7.5kw
CNC or Not
CNC
Machine model | MSJ1540 |
Working Voltage | AC380V, 50Hz, 3HP, three items and four wires |
Delivery size | 3400 * 4700 * 1500mm |
Workplace | 4700 * 5500mm |
Working Stroke | X1500 * y4000 * Z150 mm |
Maximum Idle Speed | 35000 mm / min |
Maximum working Speed | 10000-20000mm / min |
Table Structure Size | T-groove + 25mm PVC board |
Bed structure | Full CNC machining of heavy thickening |
Transmission | Drive guide rail (y four guide rail) 25 linear square rail Motor base from Taiwan Screw rod (y double screw) x4020 y4020 z3210 lead screw |
Auxiliary electrical appliances | Delixi |
Frequency converter | Shenzhen Tetran loss converter 7.5kw |
Spindle | JST metal special spindle 7.5kw 0-30000rmp (high gloss) |
Drive motor | Leadshine 850W (Z with brake) |
Operation instruction | Standard G code Beijing Exquisite carving ENG u00 mmg |
Operating system | Shanghai NCStudio |
Total weight | 2.5t |
Plate fixation | pressing plate |
Cutting fluid pump | 220V self priming pump |
Auxiliary | Lubrication system Fully automatic Tool-setting Manual Handwheel standard |
The structure of this machine can be changed, and more advanced accessories and control systems can be replaced at any time. To adapt to international needs, it can also be customized in any style and configuration according to the requirements of foreign customers.
