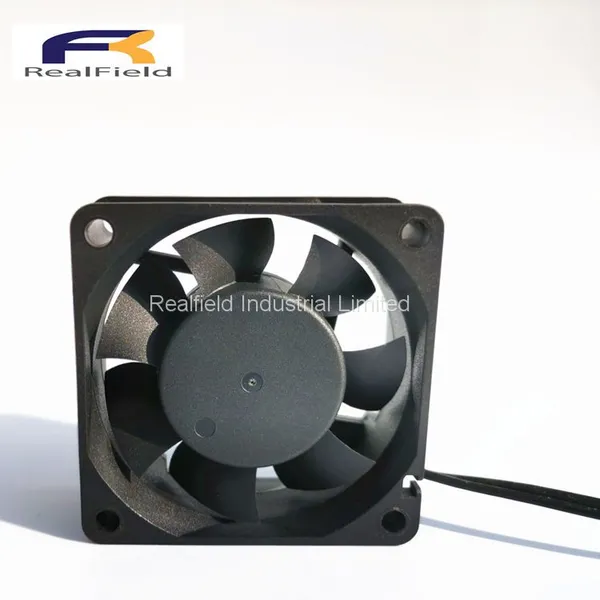

24v dc 60mm Ventilateur 60x60x25mm 6025 Ventilator Brushless Axial Cooling Fan
US$ 0.92 - 1.08
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Realfield
Place of Origin:
China
Model Number:
HXD602524H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
12v dc 60mmx60mmx25mm 6025 Ball Bearing Brushless Mini Axial 60mm Cooling FanUS$ 0.92 - 1.08MOQ: 500 Pieces -
20mm 2cm Micro Lfter Cooler 20x20x6mm 2006 dc 12v Ventilador Fan VentilateurUS$ 2.4 - 2.6MOQ: 1000 Pieces
-
40mm 4007 Micro 40x40x7mm 5v 6v dc 3pin Connector Mini Axial Ventilateur Cooling FanUS$ 0.88 - 1.08MOQ: 200 Pieces
-
Ultra Thin 18mm 18x18x4mm 1804 dc 3v 3.3v Micro Ventilateur Miniature Axial Cooling FanUS$ 3.6 - 3.8MOQ: 500 Pieces
-
3v 3.3v 3.7v 5v 6v 12v Ventilateur 25mm Micro dc Lfter 25x25x7mm 2507 Mini Cooling FanUS$ 0.9 - 1.1MOQ: 500 Pieces
Brand Name
Realfield
Place of Origin
China
Model Number
HXD602524H
Certification
CE, ROHS
After-sales Service Provided
No overseas service provided
Voltage
24v
Power
2.64W
Speed
4500RPM
Air Volume
21.7CFM
Blade Material
Plastic
Mounting
Free Standing
Electric Current Type
DC
24v dc 60mm ventilateur 60x60x25mm 6025 ventilator brushless axial cooling fan
Model: HXD602524H
Dimensions: 60mmx60mmx25mm
Bearing type: Two Ball
Rated Voltage(VDC): 24
Operating Voltage Range(VDC): 18.0 to 26.5
Rated Input Current(Amp): 0.11
Rated Input Power(Watt): 2.64
Speed(RPM): 4500
Air Flow(CFM): 21.7
Static Pressure(Inch.H2O): 0.29
Noise(dBA): 38
Weight(g): 56
Frame: Plastic(UL94V-0)
Impeller: Plastic(UL94V-0)
Motor: Impedance Ptotected and Reverse Polarity Protected
Special Function(Option): FG/RD/Temperature Control/PWM
Connectors for Option
