Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > Ultra Thin 18mm 18x18x4mm 1804 dc 3v 3.3v Micro Ventilateur Miniature Axial Cooling Fan

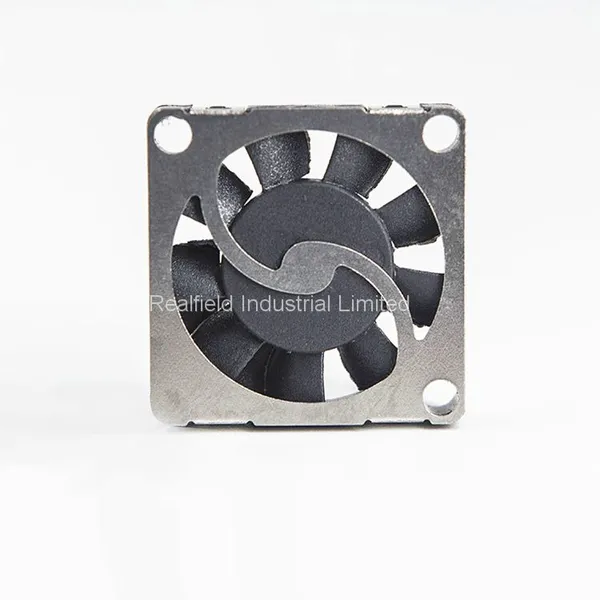

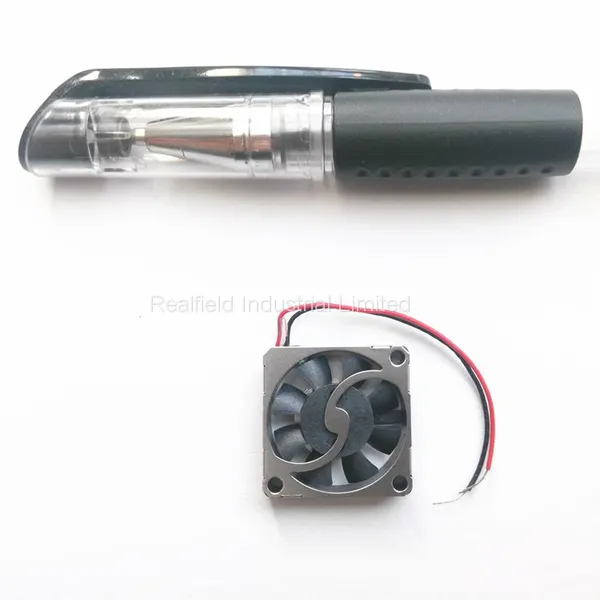

Ultra Thin 18mm 18x18x4mm 1804 dc 3v 3.3v Micro Ventilateur Miniature Axial Cooling Fan
US$ 3.6 - 3.8
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Realfield
Place of Origin:
China
Model Number:
HXD180403M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
3v 3.3v 3.7v 5v 6v 12v Ventilateur 25mm Micro dc Lfter 25x25x7mm 2507 Mini Cooling FanUS$ 0.9 - 1.1MOQ: 500 Pieces -
25mm Usb 25x25x10mm dc 3v3 .3v 5v Micro Axial Lfter 2510 Mini FanUS$ 0.95 - 1.15MOQ: 500 Pieces
-
30mm Ventilador 3v 3.7v dc Micro Ventilator 30x30x7mm Ventilateur FanUS$ 0.9 - 1.1MOQ: 200 Pieces
-
40mm 40x40x28mm 4028 12v dc Server Cooling Fan Mini CoolerUS$ 3.2 - 3.5MOQ: 200 Pieces
-
Cabinet 40mm 40x40x28 4028 5v 12v dc Pwm Speed Control Cooling 4pin Pcb FanUS$ 3.8 - 4.2MOQ: 200 Pieces
Brand Name
Realfield
Place of Origin
China
Model Number
HXD180403M
Certification
CE, ROHS
Voltage
DC 3v
Power
0.16W
Speed
9000RPM
Air Volume
0.7CFM
Blade Material
Plastic
Mounting
Free Standing
Electric Current Type
DC
Ultra thin 18mm 18x18x4mm 1804 dc 3v 3.3v micro ventilateur miniature axial pcb cooling fan
| Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximun Air Pressure | Noise | ||
| PART NO. | VDC | VDC | Amp | Watt | RPM | m3/min | CFM | mmH20 | INH20 | DB-A |
| HXD180403M | 3.3 | 2.8-3.3 | 0.05 | 0.16 | 9000 | 0.020 | 0.7 | 2.0 | 0.09 | 25 |
| HXD180405M | 5.5 | 3.5-5.5 | 0.06 | 0.3 | 13000 | 0.025 | 0.9 | 3.5 | 0.138 | 30 |
If you need other rpm or voltage or functions which not in the list ,please contact Luke.
