Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > 120mm 120x120x38mm 24v dc 12038 Control Box Axial Cooling Fan
120mm 120x120x38mm 24v dc 12038 Control Box Axial Cooling Fan
US$ 3.08 - 3.48
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
Realfield
Place of Origin:
China
Model Number:
HXD1203824M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
10 days
Related Products
-
120mm Brushless Ventilateur 120x120x38mm 48v dc Cabinet Cooling FanUS$ 3.48 - 3.88MOQ: 200 Pieces -
80mm 80x80x38mm 8038 24v dc Axial Inverter Cooling FanUS$ 1.4 - 1.8MOQ: 500 Pieces
-
80mm 80x80x38mm 8038 24v dc Axial Exhaust Cooling Fan for Welding MachineUS$ 1.4 - 1.8MOQ: 500 Pieces
-
DC 12v 92mm Ventola 9225 92x92x25mm Mini Brushless Axial pc Cooling FanUS$ 0.98 - 1.18MOQ: 500 Pieces
-
DC 12v 92mm 9225 92x92x25mm 3pin Axial Computer Case Cooling FanUS$ 0.98 - 1.18MOQ: 500 Pieces
Brand Name
Realfield
Place of Origin
China
Model Number
HXD1203824M
Certification
CE, ROHS
After-sales Service Provided
No overseas service provided
Voltage
DC 24v
Power
10.2W
Speed
3000RPM
Air Volume
131.6CFM
Blade Material
Plastic
Mounting
Free Standing
Electric Current Type
DC

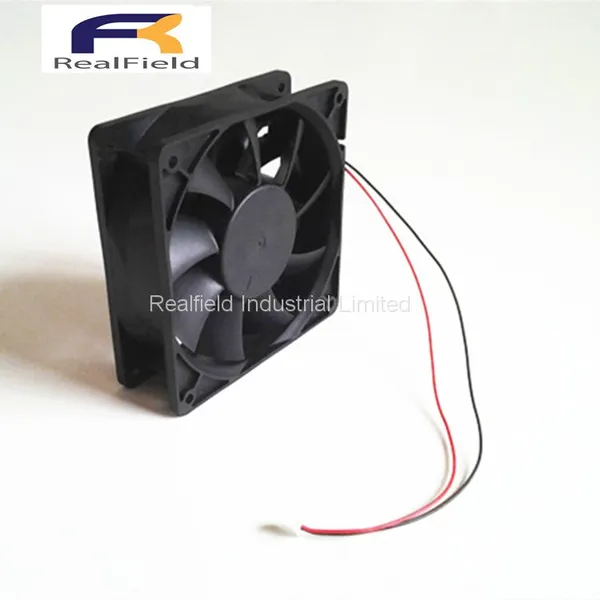

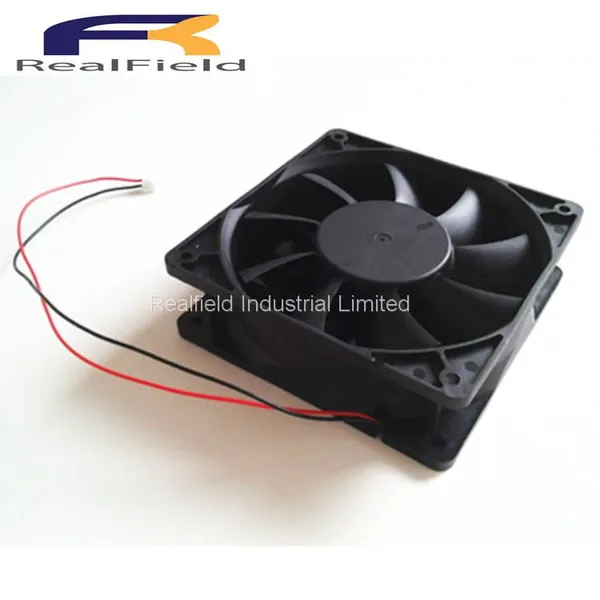

120mm 120x120x38mm 24v dc 12038 control box axial cooling fan
Model: HXD1203824M

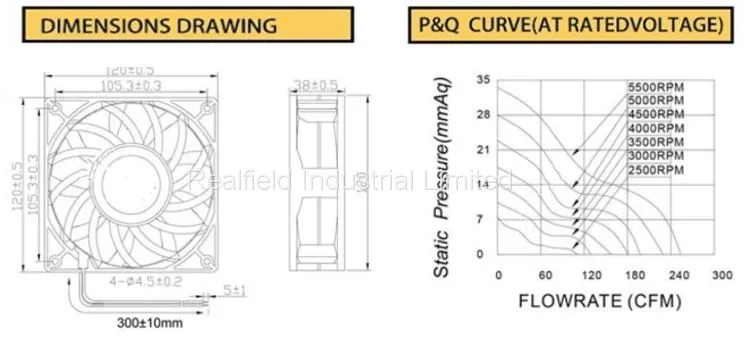

Dimensions: 120mmx120mmx38mm
Bearing type: Two Ball
Rated Voltage(VDC): 24
Operating Voltage Range(VDC): 18.0 to 26.5
Rated Input Current(Amp): 0.43
Rated Input Power(Watt): 10.2
Speed(RPM): 3000
Air Flow(CFM): 131.6
Static Pressure(Inch.H2O): 0.41
Noise(dBA): 56
Weight(g): 280

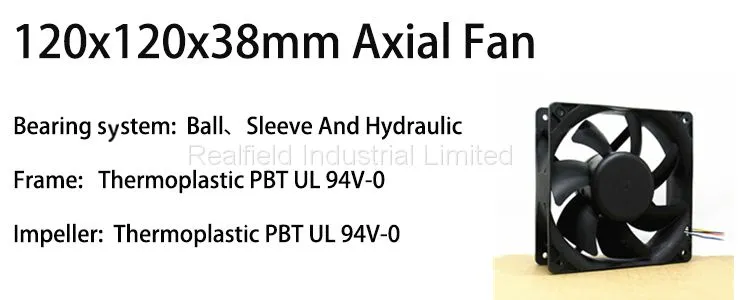

Frame: Plastic(UL94V-0)
Impeller: Plastic(UL94V-0)
Motor: Impedance Ptotected and Reverse Polarity Protected
Special Function(Option): FG/RD/Temperature Control/PWM
