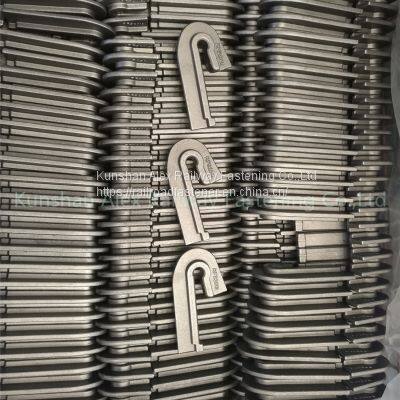

A rail anchor is used to clamp onto the base of rail snug against the crosstie both sides. It is produced in one-piece from spring steel, aiming to eliminate the track sliding or expanding or contracting.
Rail anchors which made in one-piece construction from spring steel are designed to fasten the rail tight on the base of the rail to prevent the rail from longitudinal movements.
Drive-on Rail anchors are produced in accordance with exacting quality standards, approved by Kunshan Alex Quality Assurance Guarantee as well, with features as below:
· With consistent style and high quality for right rail fit
· ISO9001 certified rail anchors with higher longitudinal keeping power.
· Fast, simple and safe usage
· Available in drive-on or spring design.
Available for solutions of various different rail types and conditions
Drive-on rail anchor(Anti-creeper) sizes:
| Width of base |
For use on Rail Sections |
| 6'' | 141, 140, 136, 133, 131 |
| 5 1/2'' | 110, 112, 113, 115, 119 |
Other Rail anchors
We produce different types of rail anchors to compromise different rail sections including 85LB, 90LB, 115RE, 132REm UIC54, UIC60, 50kg, etc.
| Type | Used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail, or other types upon customers’ drawings.
|
||
|---|---|---|---|
| Material | 60Si2MnA | 45# | QT500-7 |
| Chemical composition(%) | C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 |
C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
|
C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 |
| Surface | plain (oiled),color painting, zinc painted or HDG | ||
| Standard | AS1085.10-20002 , DIN, ISO-9001 | ||

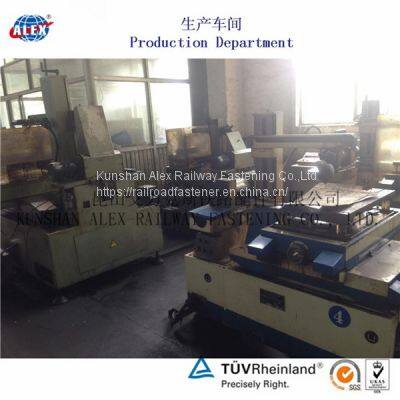

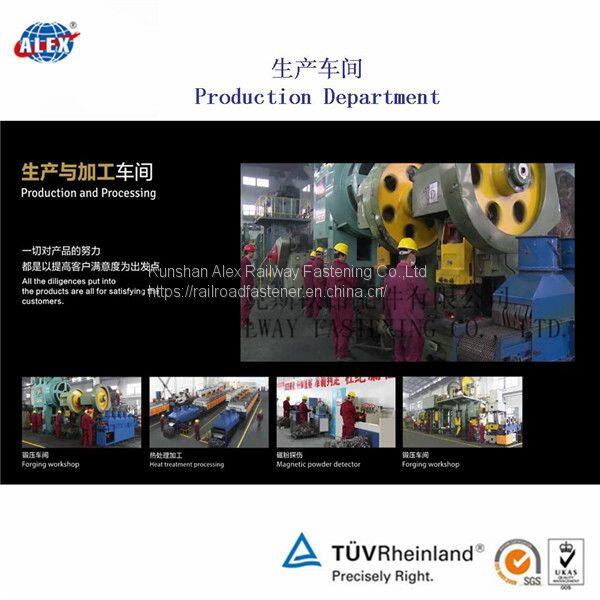

Workshop of rail anchor

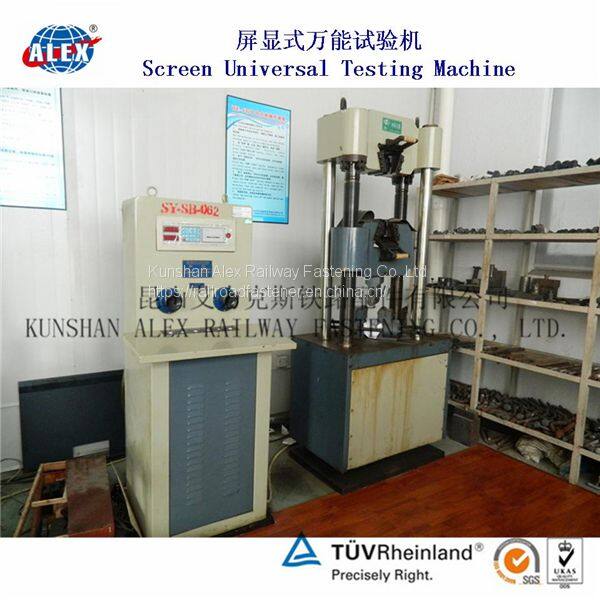

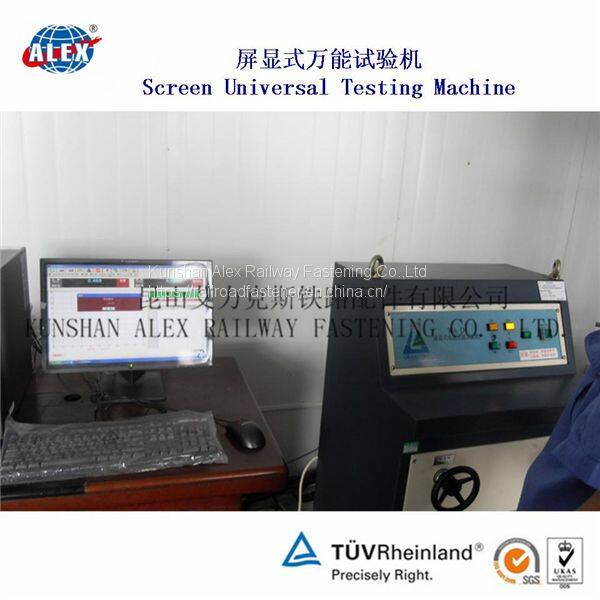

Quality control of Rail anchor/anticreeper:
Ways of packing for rail anticreeper
