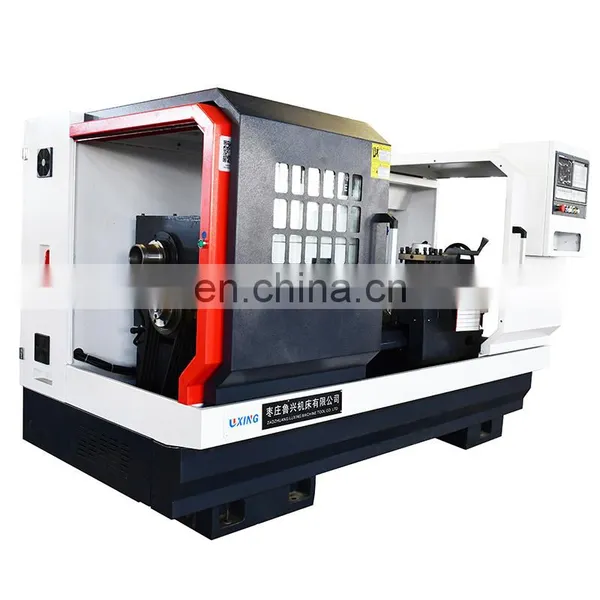

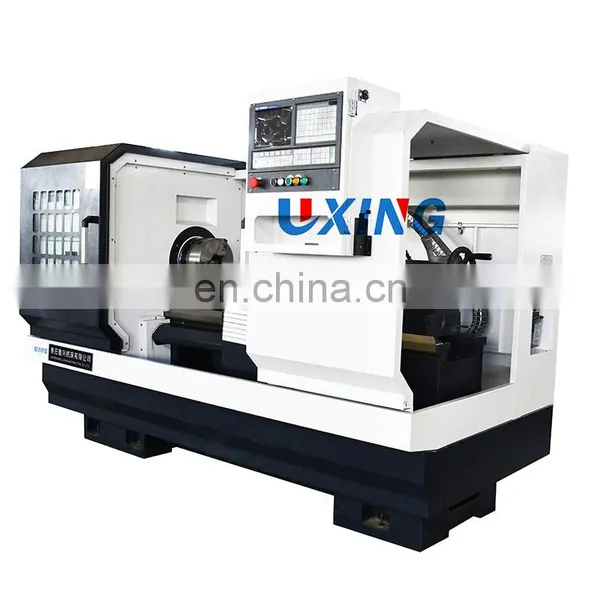

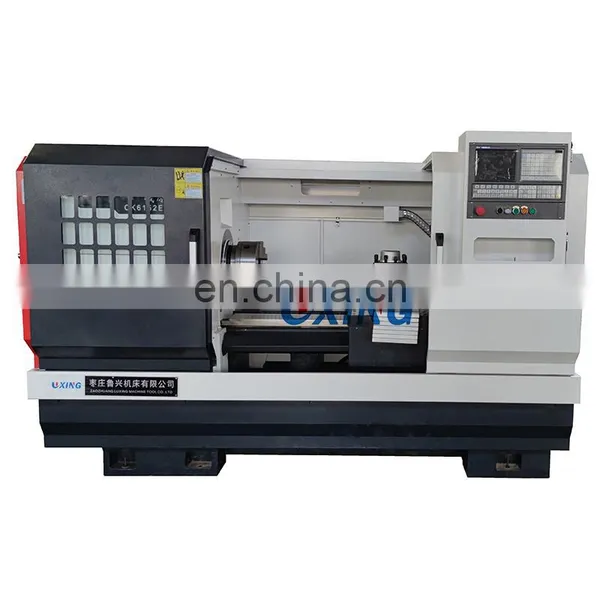

China flat bed high precision efficient CK6165E heavy duty CNC lathe metal processing turning center machine
Product application:
The machine through the numerical control system,this machine could process different inner bore,ex-circle,circular conical surface and screw thread,especially suitable for the small and middle-sized shaft and plate work piece from rough processing in batch.It has advantages like higher automaticity,simpler programming and higher accuracy.
Product features:
Higher stability one-piece machine bed
3-gear spindle speed,step-less in gear
Higher rigidity pedestal
Wider layer board
Integrated automatic lubrication system
Standard accessories:

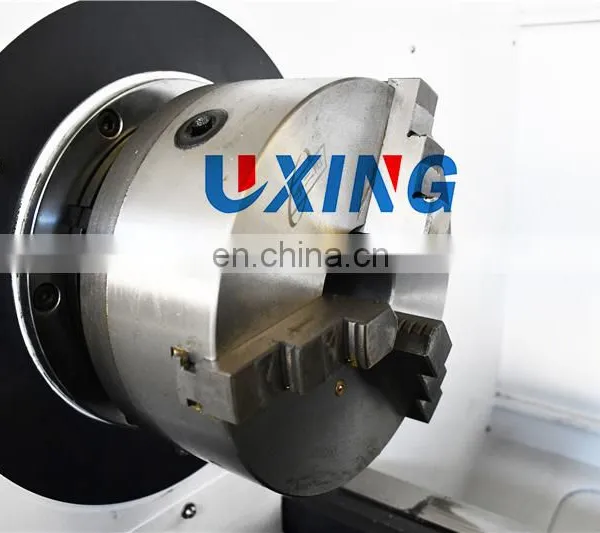

Eletric 4 position ,3-jaw manual, manual tailstock, automatic lubrication, coolant pump, semi-shield
Optional accessories:
Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield
Machine main specifications:
|
Specifications |
Unit |
CK6152E |
CK6165E |
|
Max.swing over bed |
mm |
Φ530 |
Φ650 |
|
Max.swing over cross slide |
mm |
Φ280 |
Φ375 |
|
cessing length |
mm |
825/1325 |
1000/1500/2000/3000 |
|
X/Z axis travel |
mm |
X:330 Z:1000/1500 |
X:400 Z:1200/1650/2200/3100 |
|
Spindle transmission type |
|
3 steps variable speed |
3 steps variable speed |
|
Spindle speed steep |
|
stepless |
stepless |
|
Spindle speed |
rpm |
30-150,90-450,315-1600 |
10-85,40-350,110-850 |
|
Spindle nose |
|
A8 |
C11 |
|
Spindle bore |
mm |
Φ90 |
Φ105 |
|
Spindle taper |
|
Metric 100-1:20 |
Metric 120-1:20 |
|
Spindle motor |
kW |
7.5 |
11 |
|
Chuck size |
mm |
Φ250 |
Φ320 |
|
Ball screw dia.and pitch |
|
2506/4010 |
2505/5010 |
|
X/Z axis feed motor torque |
N.m |
X:7.5 Z:10 |
X:10 Z:15(30) |
|
X/Z axis rapid traverse |
m/min |
6/10 |
4/5 |
|
X/Z axis repeatability |
mm |
±0.005 |
±0.005 |
|
Processing accuracy |
|
IT6-IT7 |
IT6-IT7 |
|
Workpiece surface roughness |
|
Ra1.6 |
Ra1.6 |
|
Tailstock sleeve dia. |
mm |
Φ75 |
Φ100 |
|
Tailstock sleeve travel |
mm |
150 |
250 |
|
Tailstock sleeve taper |
# |
MT5 |
MT6 |
|
Tool post type |
|
4 station electric tool post (optional:6 station turret) |
4 station electric tool post (optional:6 station turret) |
|
Cutting tool shape size |
mm |
25x25 |
32x32 |
|
Guide form |
|
Flat bed |
Flat bed |
|
Total power capacity |
KVA |
12.5 |
15 |
|
Machine dimension(LxWxH) |
mm |
2570/3070x1550x1710 |
3200/3700/4200/5200x1800x1900 |
|
Net weight |
kg |
3150/3400 |
3900/4500/5400 |
Details:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
