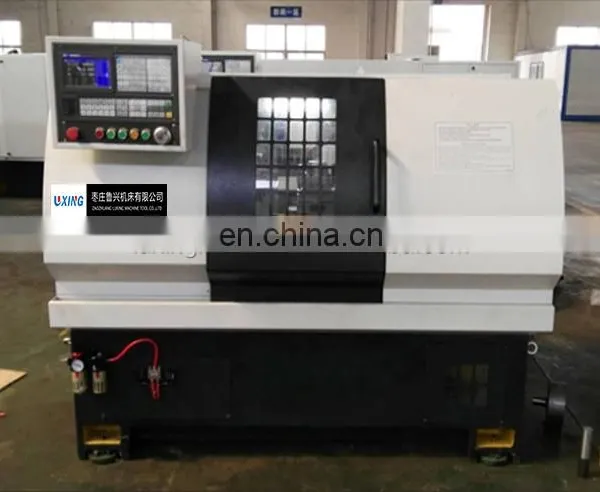

Flat bed japanese taiwan cnc control lathe turning machine with 10 inches chuck CK6140/500/750/1000mm price for sale
Application :
CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .
The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
Product main technical specifications:
Max.swing over bed |
mm |
400 |
Max.swing over cross slide |
mm |
240 |
X/Z axis travel |
mm |
X:280 Z:550/750 |
Spindle nose |
|
A2-6 (A2-8 opitional) |
Spindle bore |
mm |
48/82 |
Bar capacity |
mm |
40/65 |
Max.spindle speed |
rpm |
150-2000/150-1800 |
Chuck size |
mm |
200/250 |
Spindle motor |
kw |
5.5/7.5 |
X/Z axis repetability |
mm |
0.005 |
X/Z axis feed motor torque |
N.m |
X:4 Z:6 |
X/Z Rapid traverse |
m/min |
X:8 Z:10 |
Tailstock quill dia |
mm |
60 |
Quill traverse |
mm |
100 |
Quill taper |
# |
MT4 |
Tool post type |
|
4 station electric tool holder |
Cutting tool shape size |
mm |
20*20 |
Total power capacity |
kva |
11 |
Machine dimension(L*W*H) |
mm |
2200*1160*1620 |
Net.weight(about) |
kg |
1800 |
Details:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
