Product Description

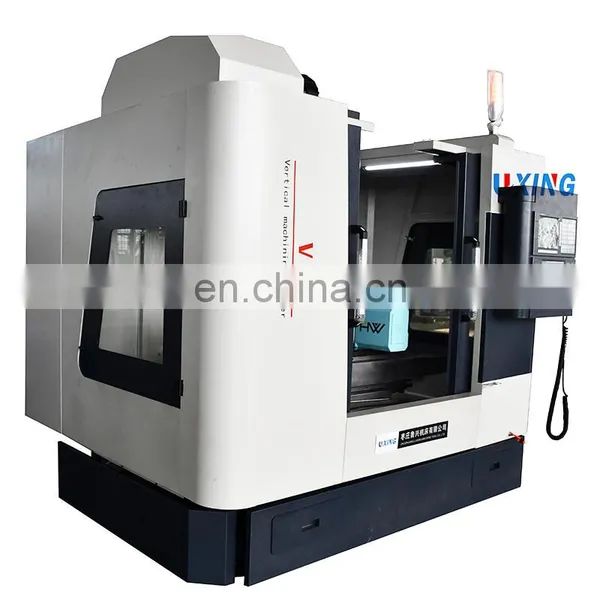

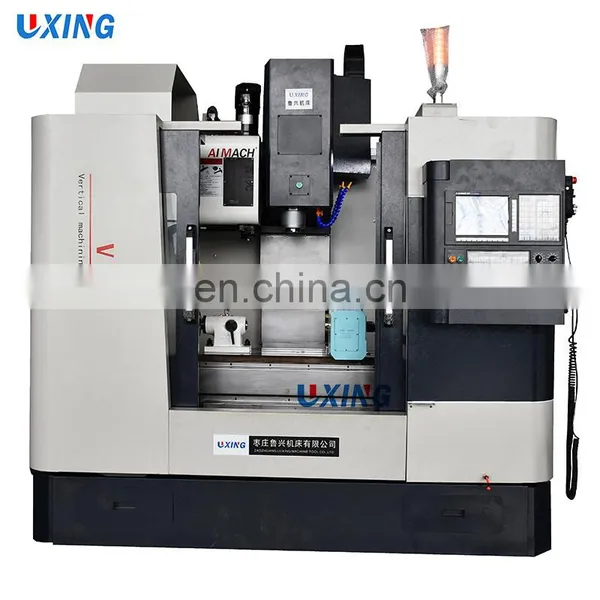

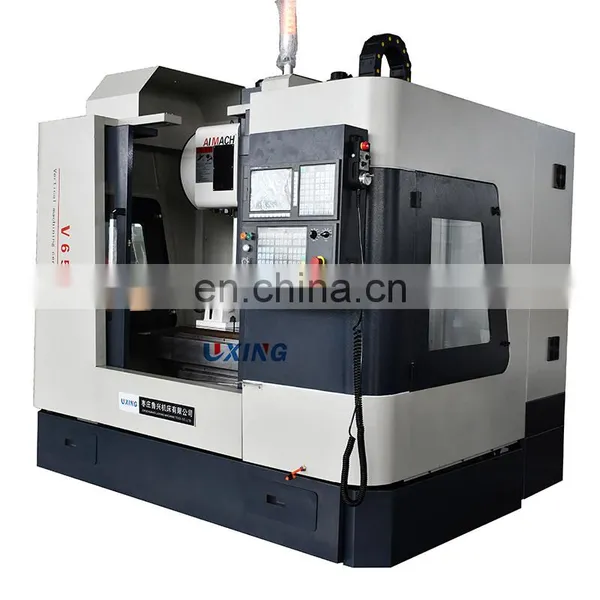

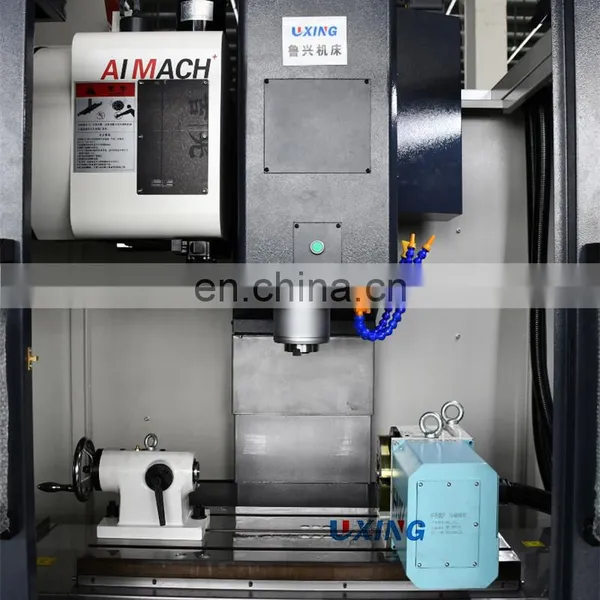

high precision speed 3/4 axis with taiwan roller column linear rail VMC650 cnc vertical machining center machine centre price
Product Characteristics:
1. Taiwan BT40 Spindle
2. Taiwan ball screw and linear rail
3. Disc type 16T tools
4. Fully-guarded type machine
2. Taiwan ball screw and linear rail
3. Disc type 16T tools
4. Fully-guarded type machine
Product Main Specifications:
Specifications | Unit | V65 |
Table Size (L*W) | mm | 900×400 |
Max. table load | kg | 400 |
T-slot Size | mm | 3-18-125 |
Travel of x,y,z axis | mm | 650/400/500 |
Spindle nose to table surface distance | mm | 150-650 |
Spindle center to Column guide distance | mm | 496 |
Spindle taper | -- | BT40 |
Spindle speed range | rpm | 80-8000 |
Spindle motor power | KW | 5.5/7.5 |
Rapid traverse X/Y/Z axis | m/min | 24/24/24 |
Cutting feed of X/Y/Z axis | mm/min | 1-10000 |
Tool Magazine Capacity | tools | 16 Disc type |
Positioning accuracy | mm | 0.01 |
Repeat Positioning accuracy | mm | 0.005 |
Machine Weight | Kg | 4500 |
Dimension | mm | 2350×2200×2300 |
Details:
Optional accessory(It need add extra cost):

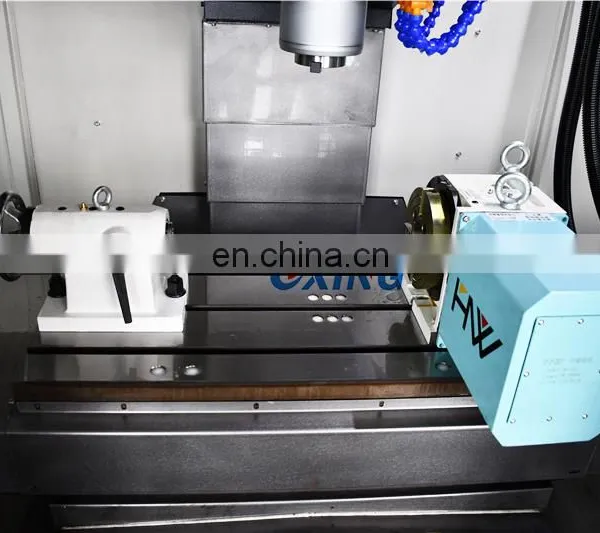

The 4th axis;
Chip conveyor.
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
