VMC650 Linear Rail 3 Axis 4 Axis Cnc Vertical Machining Center Milling Machine Vmc Fanuc for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Vmc850 Cnc Vertical Machining Center Vmc 4 Axis 3 AxesNegotiableMOQ: 1 -
10000rpm 12000rpm China Dalian Fanuc Cnc Machining Center Vmc850 VerticalNegotiableMOQ: 1
-
High Precision V65 VMC Cnc Milling Machine Vertical Machining Center 3 Axis 4 Axis VMC650 Price Manufacturers for SaleNegotiableMOQ: 1
-
VMC650 High Precision 3 or Four Axis Vertical Cnc Milling Machine Machining Center Price for Sale China Manufacturers SupplierNegotiableMOQ: 1
-
China 24 Atc Arm Type Tool Changer 3 Axis Cnc Milling Machine Vertical Machining Center VMC850 Price for Sale Siemens ControlNegotiableMOQ: 1
VMC650 linear rail 3 axis 4 axis cnc vertical machining center milling machine vmc fanuc for sale
Product Characteristics:

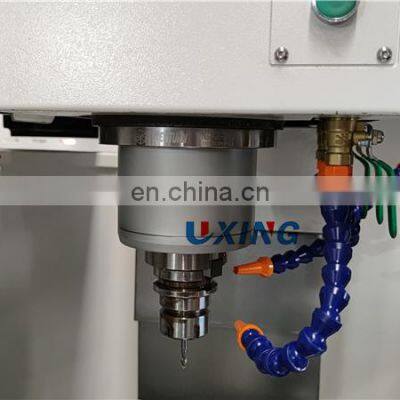

1. Taiwan BT40 Spindle;
2. Taiwan ball screw and linear rail;
3. Automatic tool changer from OKADA/AIMACH;
4. Fully-guarded type machine
2. Taiwan ball screw and linear rail;
3. Automatic tool changer from OKADA/AIMACH;
4. Fully-guarded type machine
Product Main Specifications:
Specification |
Unit |
VMC550 |
VMC650 |
VMC850 |
VMC1060 |
Table size |
mm |
800×260 |
800×400 |
1000×500 |
1300×600 |
T-slot (NO.x width x pitch) |
mm |
3-16 |
3-16-120 |
5-18-100 |
5-18-120 |
Max.table load |
kg |
300 |
400 |
500 |
600 |
Guide rail type |
Linear rail guide |
Linear rail guide |
Linear rail guide |
Linear rail guide |
|
X/Y/Z axis travel |
mm |
500×300×400 |
650×400×500 |
800×500×500 |
1000×600×500 |
Distance from spindle nose to worktable |
mm |
90-490 |
70-570 |
100-600 |
70-670 |
Distance from spindle center to column |
mm |
360 |
450 |
580 |
655 |
Spindle taper |
BT40 |
BT40 |
BT40 |
BT40 |
|
Spindle Speed |
rpm |
8000 |
8000 |
8000 |
8000 |
Spindle Drive |
Belt |
Belt |
Belt |
Belt |
|
Spindle Motor |
kw |
3.7 |
5.5 |
7.5 |
11 |
X/Y/Z axis rapid feed speed |
m/min |
20/20/20 |
24/24/20 |
24/24/24 |
20/20/16 |
X/Y/Z axis cutting feed rate |
mm/min |
1-6000 |
1-10000 |
1-10000 |
1-10000 |
Tool changer |
Hat type-12T |
Hat type-16T |
Arm type-24T |
Arm type -24T |
|
Positioning accuracy |
mm |
±0.01/300 |
±0.01/300 |
±0.008/300 |
±0.01/300 |
Repeat Positioning accuracy |
mm |
±0.005 |
±0.005 |
±0.005 |
±0.008 |
Machine dimensions(L*W*H) |
mm |
2100×1700×2200 |
2300×2000×2350 |
2200×2350×2550 |
3000×2500×2800 |
Machine weight(N.W/G.W) |
T |
2.0 |
3.0 |
5.0 |
5.8 |
Details:
Optional accessories(need add extra cost):
Arm type tool changer;
The 4th axis;
The 4th axis;
chip-conveyor.
Tool setter.
Recommend products:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you canchoose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you canchoose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
