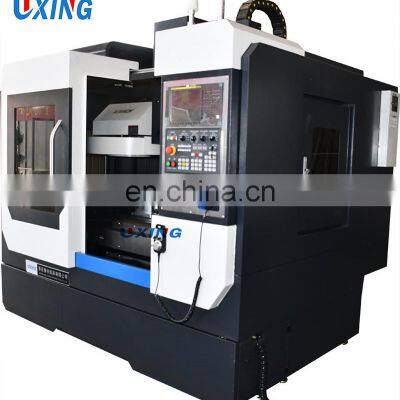

China 3/4 Axis Taiwan Linear Rail GSK Siemens FANUC KND Control VMC850 Vertical Cnc Milling Machine Machining Center Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision 3 Axis 4 Axis GSK Siemens FANUC Control VMC650 Cnc Vertical Machining Center Price for SaleNegotiableMOQ: 1 -
High Speed Precision VMC850 VMC1060 Cnc Vertical Milling Machine Machining Center VMC 850NegotiableMOQ: 1
-
Low Cost Cnc Vertical Milling Machine Machining Center 3 Axis for Metal VMC850NegotiableMOQ: 1
-
China High Precision 3/4 Axis Vertical Cnc Milling Machine GSK FANUC Control VMC650 Price for SaleNegotiableMOQ: 1
-
Top Sale VMC550 VMC600 VMC640 Small 3/4 Axis CNC Milling Machine Machining CenterNegotiableMOQ: 1
china 3/4 axis taiwan linear rail GSK Siemens FANUC KND control VMC850 vertical cnc milling machine machining center price
Product characteristics:
VMC850 is a new generation vertical machining center. It can be used in aerospace, military industry, hydropower, wind power, automobile parts, machining, precision machining and mould manufacturing. Small parts and non-ferrous metals high-speed and high-precision automatic processing. Integral casting FEM finite element analysis, dynamic simulation completely eliminate structural stress, to ensure the best rigidity and stability.
Product application:
Widely used in mechanical processing, mold, instruments, instruments and other industries. The main components, such as base, fuselage, worktable, middle slide, lift slide and so on, are cast with high strength material, and the stability of machine tool is ensured by artificial aging.
Machine main specifications:
Specification | Unit | VMC650 | VMC850 | VMC1060 | VMC1270 |
Table size | mm | 800×400 | 1000×500 | 1300×600 | 1300×700 |
T-slot(NO.x width x pitch) | mm | 3-16-120 | 5-18-100 | 5-18-120 | 5-18-115 |
Max.table load | kg | 400 | 500 | 600 | 700 |
Guide rail type | Linear rail guide | Linear rail guide | Linear rail guide | Linear rail guide | |
X/Y/Z axis travel | mm | 650×400×500 | 800×500×500 | 1000×600×500 | 1200×700×700 |
Distance from spindle nose to worktable | mm | 70-570 | 100-600 | 70-670 | 100-800 |
Distance from spindle center to column | mm | 450 | 580 | 655 | 750 |
Spindle taper | BT40 | BT40 | BT40 | BT40 | |
Spindle Speed | rpm | 8000 | 8000 | 8000 | 8000 |
Spindle Drive | Belt | Belt | Belt | Belt | |
Spindle Motor | kw | 5.5 | 7.5 | 11 | 11 |
X/Y/Z axis rapid feed speed | m/min | 24/24/20 | 24/24/24 | 20/20/16 | 20/20/16 |
X/Y/Z axis cutting feed rate | mm/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
Tool changer | Hat type-16T | Arm type-24T | Arm type -24T | Arm type -24T | |
Positioning accuracy | mm | ±0.01/300 | ±0.008/300 | ±0.01/300 | ±0.01/300 |
Repeat Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.008 | ±0.01 |
Machine dimensions(L*W*H) | mm | 2300×2000×2350 | 2200×2350×2550 | 3000×2500×2800 | 3000×2500×2800 |
Machine weight(N.W/G.W) | T | 3.0 | 5.0 | 5.8 | 5.8 |
Details:
Optional accessories(need add extra cost):
The 4th axis;
Chip converor.
Related Products:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
