High Precision 3 Axis 4 Axis GSK Siemens FANUC Control VMC650 Cnc Vertical Machining Center Price for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Precision VMC850 VMC1060 Cnc Vertical Milling Machine Machining Center VMC 850NegotiableMOQ: 1 -
Low Cost Cnc Vertical Milling Machine Machining Center 3 Axis for Metal VMC850NegotiableMOQ: 1
-
China High Precision 3/4 Axis Vertical Cnc Milling Machine GSK FANUC Control VMC650 Price for SaleNegotiableMOQ: 1
-
Top Sale VMC550 VMC600 VMC640 Small 3/4 Axis CNC Milling Machine Machining CenterNegotiableMOQ: 1
-
VMC320 Precision 3 Axis CNC Vertical Machining Controller Center SmallNegotiableMOQ: 1

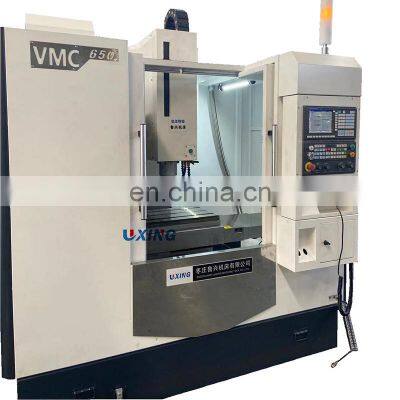

high precision 3 axis 4 axis GSK Siemens FANUC control VMC650 cnc vertical machining center price for sale
Product Characteristics:
1. Taiwan BT40 Spindle
2. Taiwan ball screw and linear rail
3. Magazine tool 16T tools(Hat type,Arm type)
4. Fully-guarded type machine
2. Taiwan ball screw and linear rail
3. Magazine tool 16T tools(Hat type,Arm type)
4. Fully-guarded type machine
Specification | Unit | VMC550 | VMC650 | VMC850 | VMC1060 |
Table size | mm | 800×260 | 800×400 | 1000×500 | 1300×600 |
T-slot (NO.x width x pitch) | mm | 3-16 | 3-16-120 | 5-18-100 | 5-18-120 |
Max.table load | kg | 300 | 400 | 500 | 600 |
Guide rail type | Linear rail guide | Linear rail guide | Linear rail guide | Linear rail guide | |
X/Y/Z axis travel | mm | 500×300×400 | 650×400×500 | 800×500×500 | 1000×600×500 |
Distance from spindle nose to worktable | mm | 90-490 | 70-570 | 100-600 | 70-670 |
Distance from spindle center to column | mm | 360 | 450 | 580 | 655 |
Spindle taper | BT40 | BT40 | BT40 | BT40 | |
Spindle Speed | rpm | 8000 | 8000 | 8000 | 8000 |
Spindle Drive | Belt | Belt | Belt | Belt | |
Spindle Motor | kw | 3.7 | 5.5 | 7.5 | 11 |
X/Y/Z axis rapid feed speed | m/min | 20/20/20 | 24/24/20 | 24/24/24 | 20/20/16 |
X/Y/Z axis cutting feed rate | mm/min | 1-6000 | 1-10000 | 1-10000 | 1-10000 |
Tool changer | Hat type-12T | 16T | Arm type-24T | Arm type -24T | |
Positioning accuracy | mm | ±0.01/300 | ±0.01/300 | ±0.008/300 | ±0.01/300 |
Repeat Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.01 |
Machine dimensions(L*W*H) | mm | 2100×1700×2200 | 2300×2000×2350 | 2200×2350×2550 | 3000×2500×2800 |
Machine weight(N.W/G.W) | T | 2.0 | 3.0 | 5.0 | 5.8 |
Details:
Optional accessories(need add extra cost):
The 4th axis;
Arm type tool changer;
Chip-conveyor.
Chip-conveyor.
Tool setter.
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
