Cam Indexer for filling machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
80DSF Cam Indexer for Assembly automation
-
DF Series Cam Indexer, cam index,Rotary Indexing tables for Automatic punching machine
-
HE Series Gantry Automatic Video Measuring Machine CNC Vision Measuring Systems
-
Max load 5000N digital automatic woven bag tensile breaking force testing machine
-
Lab Application Examination Gloves tensile strength testing equipment
-
Gold Brand Single column Rubber Tensile Testing Machine Price
Product Description

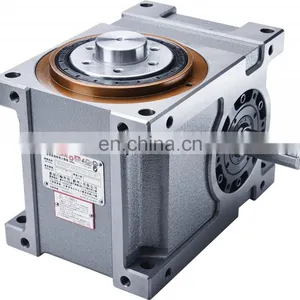

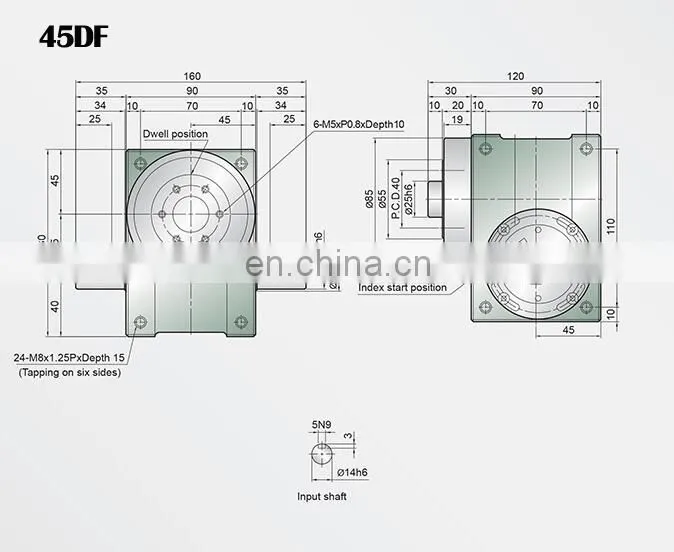

45DF Series High Precision Cam Index
Processing customization:Yes
Disk diameter:100-350mm
Bearing weight:0-10KG
Mainly applied to:Automatic assembly and testing
Location and segmentation of equal parts:2,3,4,5,6,8,10,12,16,20,24,30,32,36,40,48
Driving angle:90°,120°,150°‘180°,210°,240°,270°,300°
Cam curve: deformation curve, deformation sine curve and deformation velocity curve.
Rotation direction of cam: left and right.
Standard accuracy:±30 seconds, customizable±15 seconds high precision.
Weight: 7 kg torque limiter (TL): 200 lubricant: 60#
Matching motor: 60W motor speed at 1400 or 1450.
Advantage:
One. Durability
1. cam processing technology is carburizing and grinding, the hardened layer is about 5mm.
2. surface spray paint is diaphragm type dry antirust oil.
3. the internal bearing is imported from Japan, NSK/NTN.
Two. Price concessions. In the same quality, our price is the most favorable.
Three. Large quantities of stock.
Parameter table:
All Allowable radial load of output shaft (C1): 130kgf
Max.repetitive torque on input shaft(C5): 4 kgf-m
All Allowable axial load of output shaft (C2): 140 kgf
CD² on input shaft(Note1): 3.2*10-4kgf-m²
All Allowable torque of output shaft (Ts): Reference torque table
Indexing accuracy: ±30 Sec.
All Allowable radial load of intake shaft (C3): 85 kgf
Weight: 7 kg
Ma Max.repetitive bending force on input shaft (C4): 110 kgf
Note1:CD² on input shaft is value dwell ragne . Note2:Value of c1 to c5 are those obtained for safety factor=2.
With only one cam and output turret, no other unnecessary partsare required to complete any intermittent motion required.
Theroller is precisely fixed in the set position, so no locking elements are required.
High precision indexing self locking
The special desigh of cam roller can maintain high segmentation accuracy and torque, ensure the ability of heavy load, standard
segmentation accuracy in 30 seconds, can provide higher segmentation accuracy. The unique installation method makes the accuracy more accurate.
Theroller is precisely fixed in the set position, so no locking elements are required.
High precision indexing self locking
The special desigh of cam roller can maintain high segmentation accuracy and torque, ensure the ability of heavy load, standard
segmentation accuracy in 30 seconds, can provide higher segmentation accuracy. The unique installation method makes the accuracy more accurate.
High speed and good torque
Preloading on taper support of cam and cam roller completely avoids clearance, makes operation reliable and high speed, and
reduces the impact force produced by load or vibration,
reduces the impact force produced by load or vibration,
Smooth running without noise
The outpur turret can rotate continuously at any position (whether angle , speed or acceleration) so that the transmission ruans
smoothly without vibration or noise.
smoothly without vibration or noise.
Maintenance free life long
There is no need for any maintenance in 30000 hours except for lubrication oil
Using TTO brand oil seal, high temperature resisitance, pressure and wearresistance, oil resistance oil seal, good sealing
performance, long service life
performance, long service life
Input Shaft
With carburizing and quenching process, the depth of carburizing reaches 2.7 mm, can withstand high impact load, good wear resistance and toughness.
The Turret
Advanced design and processing technology to ensure the accuracy of the roller, life and lubricatio；can withstand high-speed and low-speed heavy load impact, high-precision machine tools to ensure the accuracy of each indexing, accurate indexing, stable
performance.
performance.
Drive Bearing
Adopt imported NSK bearing, high quality, low friction coefficient, high load capacity of high tapered roller bearing, high speed and stable performance, large radial load.
Transposition Cam
Adopt alloy steel, carburizing and tempering process, HRC hardness 60 degrees, high precision grinding, low friction coefficient, high precision, long life, superhard and super wear-resisitant, excellent quality.
