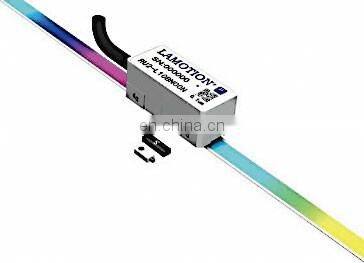

Grating Ruler Incremental Linear Scale
RUS grating ruler is an incremental 2um grating ruler designed to provide feedback for high precision linear measurement. It adopts UNIMETRO's most advanced interference grating line marking technology, and the grating line error is controlled below 40nm. It uses high strength, corrosion-resistant special stainless steel to ensure long-term stable use.
Reference Data
System characteristics

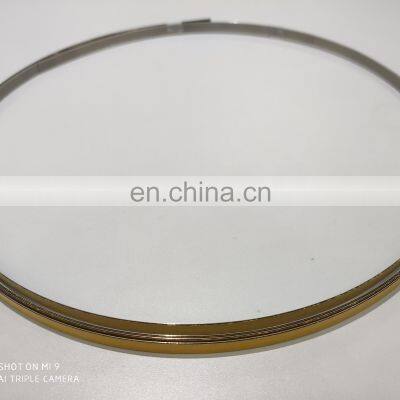

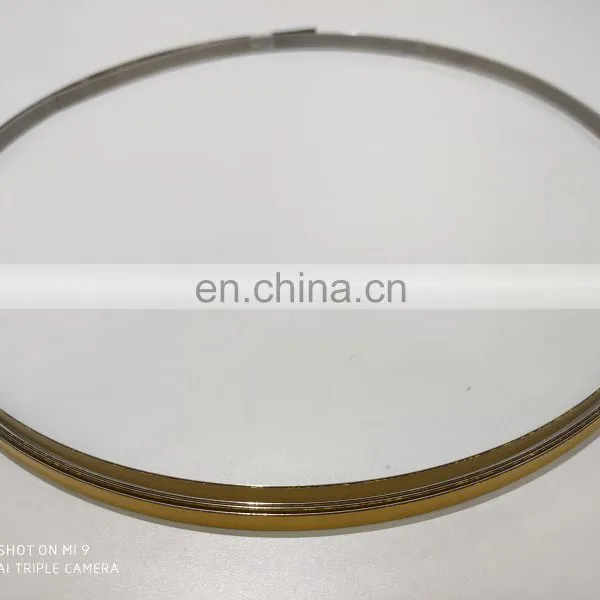

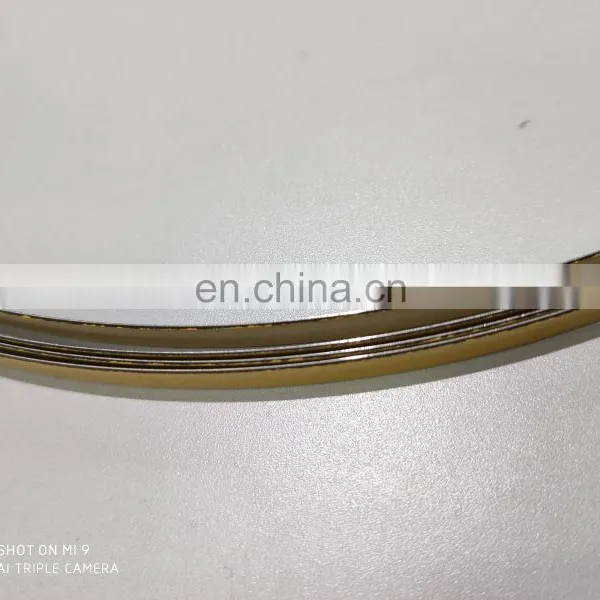

RUS High Precision Stainless Steel Gate Ruler is made of high precision, super hard, high elasticity and corrosion resistant
special substrates.Excellent mechanical and chemical properties of the substrate ensure its long-term stability and
reliability;RUS high-precision stainless steel grating ruler uses advanced marking technology to achieve fine marking of 20 micron spacing grating lines, and ensures the accuracy of less than 40 nanometers, +5 um/m, the ruler has its own backing glue, and can be quickly installed by sticker tool.
special substrates.Excellent mechanical and chemical properties of the substrate ensure its long-term stability and
reliability;RUS high-precision stainless steel grating ruler uses advanced marking technology to achieve fine marking of 20 micron spacing grating lines, and ensures the accuracy of less than 40 nanometers, +5 um/m, the ruler has its own backing glue, and can be quickly installed by sticker tool.
● High Precision: +5um/m ● Low expansion coefficient: 10.5um/m/~C
● High linearity: +2.5um/m ● Fast Installation: Provide tape tool, tape tape with back glue
● Small size: 0.2mm thick * 8mm wide ● Excellent materials: corrosion resistance, high hardness
● Ultra Long Size: 50m Ultra Long Order Length
● High linearity: +2.5um/m ● Fast Installation: Provide tape tool, tape tape with back glue
● Small size: 0.2mm thick * 8mm wide ● Excellent materials: corrosion resistance, high hardness
● Ultra Long Size: 50m Ultra Long Order Length
RU2 Reader Performance | ||
Resolution ratio | Digital1um,0.5um,0.2um,0.1um,20nm,50nm | |
Simulation 20um | ||
Minimum clock frequency of counter | Minimum clock frequency of counter | |
Maximum speed | 12m/s Relating to resolution and minimum clock frequency of counter | |
Electronic subdivision error | 40nm | |
Automatic gain control | Yes | |
Automatic correction | Yes | |
Specifications
Specifications | Coefficient of thermal expansion | 10.5um/m/℃ | ||
Grating Ruler Type | Incremental type | Weight | 12.6 g/m | |
Pitch | 20um | Material | High Strength Stainless Steel | |
Precision | ±5um/m | Environmental requirements | ||
Linearity | ±2.5um/m Two-point correction is possible | working temperature | 0℃~70℃ | |
Size | H 0.2mm * W 8mm | Working humidity | RH < 95% (Non condensation) | |
Size of gum | H 0.1mm * W 6mm | Storage temperature | -20℃~70℃ | |
Supply length | 100mm~50m | Storage humidity | RH < 95% (Non condensation) | |

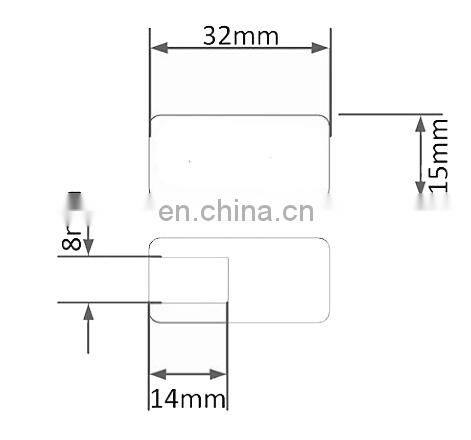

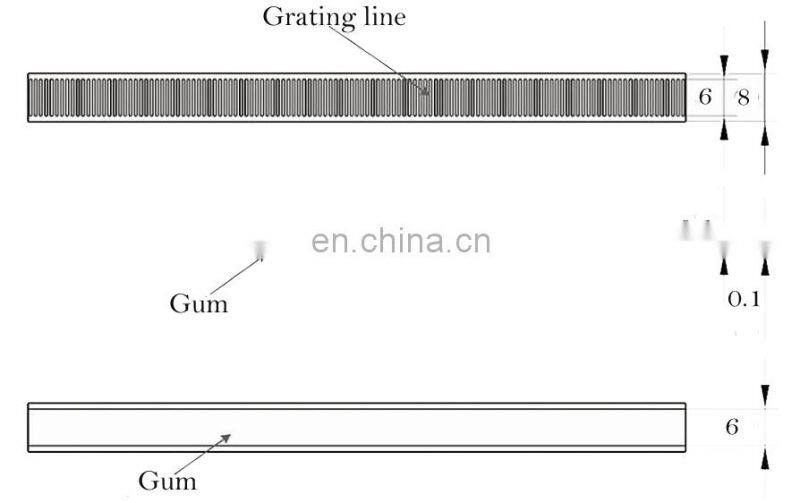

Grating ruler size map
End caps are divided around, mirror each other, order in pairs

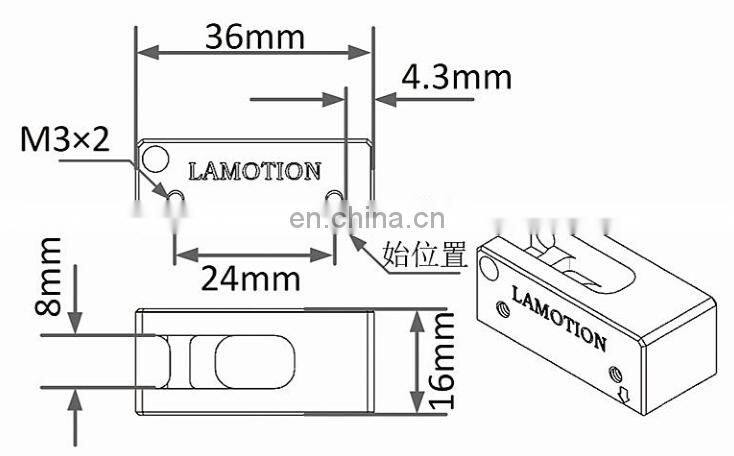

The width of tape tool, installation hole position and relative position of steel strip are compatible with RU2 series reading
heads.
heads.
