Cheap Coordinate Measuring Machine Price Large Measuring Range CMM Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Integrated Measurement Roughness Profile Integrated Measuring EquipmentNegotiableMOQ: 1 -
SP2000 High Accuracy Contour Testing Machine Digital Profile Inspection EquipmentsNegotiableMOQ: 1
-
Tool Inspection System for MillingNegotiableMOQ: 1
-
Milling Tool Inspection System Tool VMM MachineNegotiableMOQ: 1
-
Milling Tool Inspection System Tool Video Measuring System Vision Measurement Machine VMM MachineNegotiableMOQ: 1

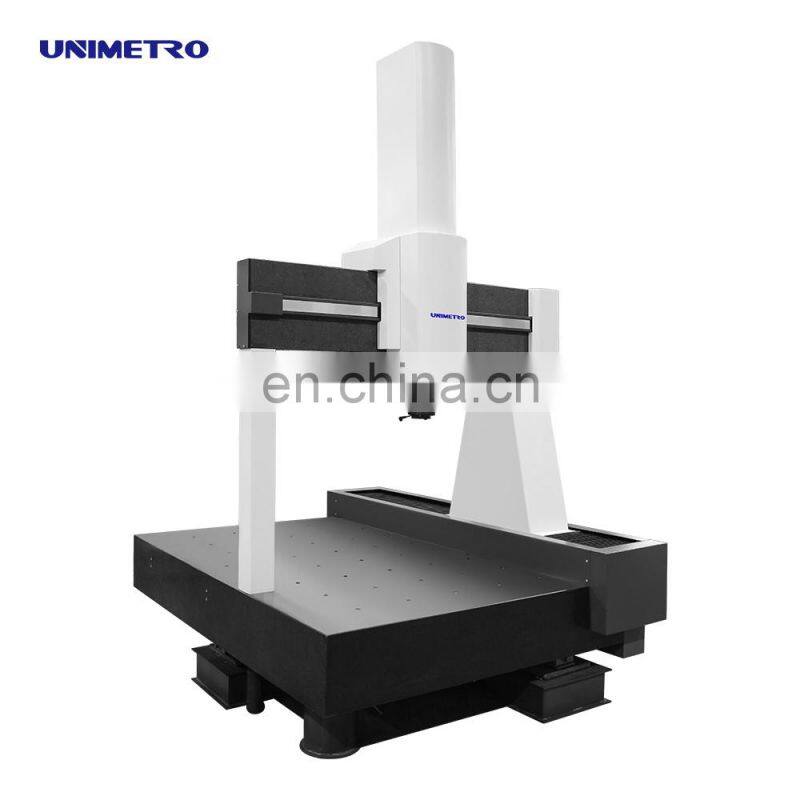

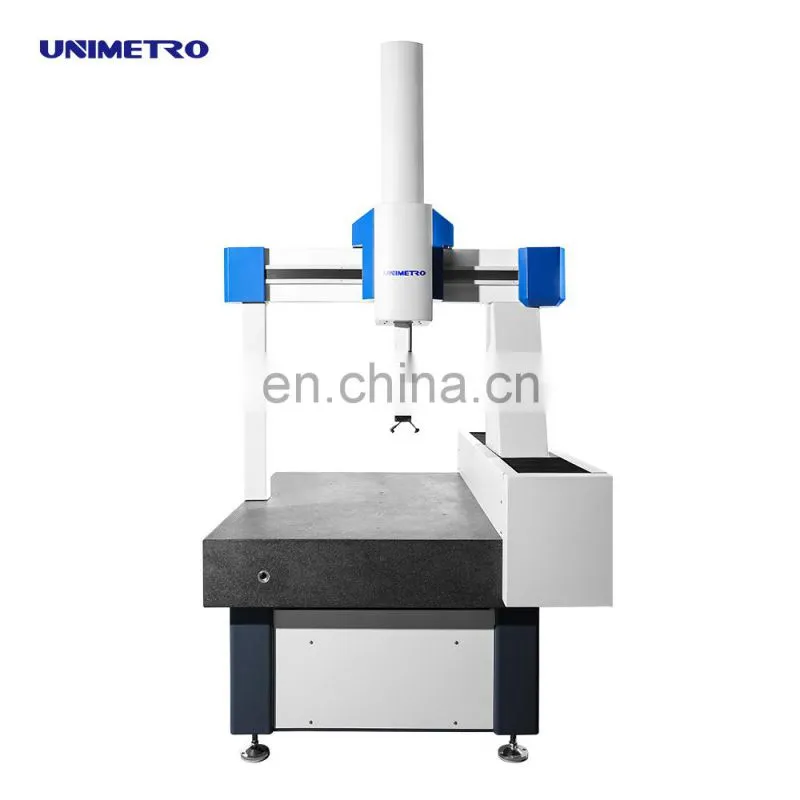

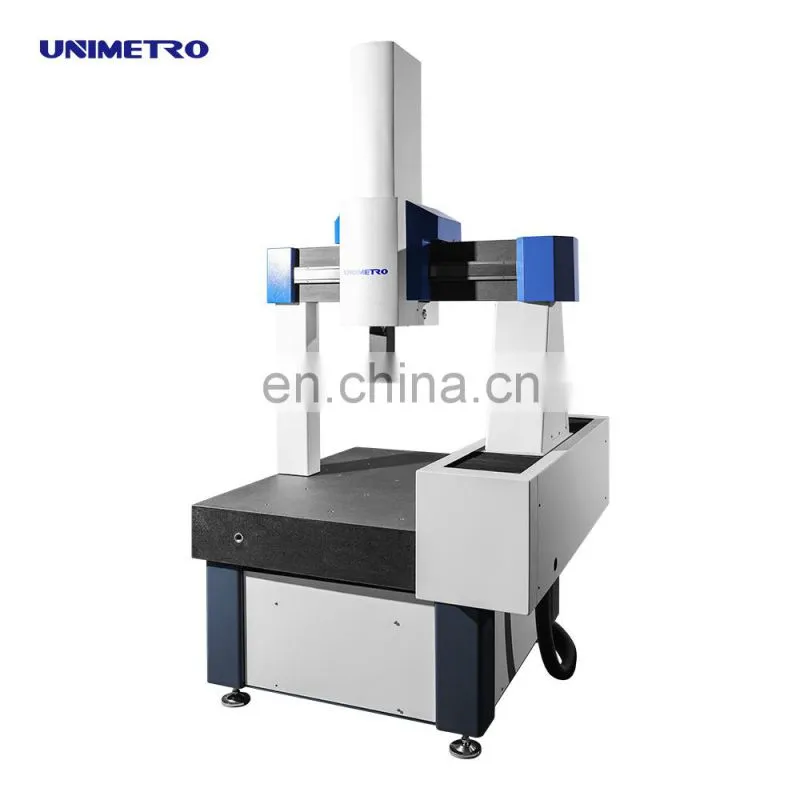

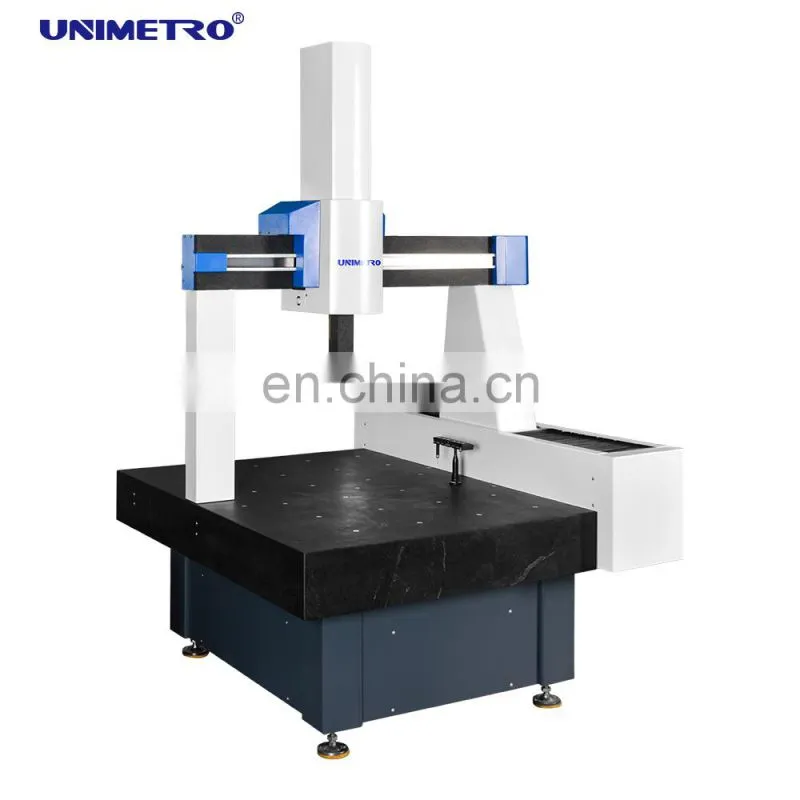

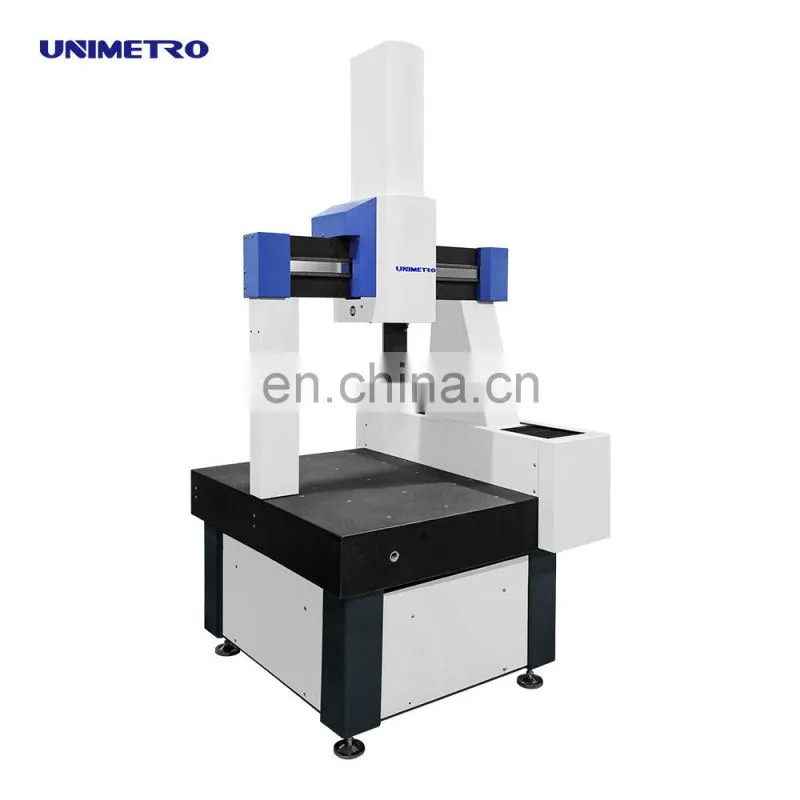

ARGON Series CMM Coordinate Measuring Machine
“Argon” is characterized by the highest precision machine which is wholly developed and designed by UNIMETRO. Each part is selected strictly in the period of manufacturing and make sure that all parts are connected perfectly and opportunely in the period of assembly. The acceptance of measuring machines takes place according to ISO 10360-2. In doing so, two standardized acceptance procedures are used. All measuring machines are measured with an ultra precision laser. Afterwards, a test conforming to standards with DKD-certified solid measures such as gauge blocks, ball plates, etc. is conducted. Therefore, the machine customers use at last is real high quality、high precision and German
Technology.
Technology.
Performance characteristics:
Working platform --- High quality granite platform:
Granite working platform is the overall support of the machine, and its quality affects the overall performance of the machine. The three shafts are all made of granite, which are made of granite. They are non stress, anti rust and anti-corrosion, easy to maintain, low coefficient of thermal expansion and small deformation affected by temperature. It can effectively reduce the vibration of the measuring machine and improve the performance of the whole machine.
Transmission system --- Friction type "self correction" transmission:
Friction transmission is used in all three-axis transmission, and "self correcting deviation" stable transmission system is adopted. The transmission system adopts the structure of "fixed + micro suspension" to ensure that the transmission is parallel to the guide rail! At the same time, it can maintain the stability of precision and the stability of motion. Moreover, it improves the self-protection of the machine tool in case of collision and is safer to use.
RENISHAW linear scale --- High precision grating ruler:
Grating ruler is an important part of coordinate system. Renishaw is the giant of three coordinate parts in the world. Its quality and after-sales service have the best reputation and guarantee in the market. All our machines use Renishaw high-precision grating ruler with resolution from 0.1 μ m to 20 nm.
Measuring Range(mm) |
Accuracy |
|||||
ARGON
|
X |
Y |
Z |
MPEe |
||
900,1000 |
1000-5000 |
700,800 |
1.2+L/350 |
|||
1200 |
1500-5000 |
800,1000 |
1.2+L/350 |
|||
1500 |
1500-5000 |
1200,1300 |
1.2+L/350 |
|||
1500,1600 |
1500-5000 |
1500 |
1.2+L/350 |
|||
1800,2000 |
2000-5000 |
1500 |
1.2+L/350 |
|||
Technical parameter:
Helium series is specially designed for small and medium-sized products, moulds, electronic products industry and so on. The size can be selected according to customers' needs.Our design of small and medium-sized three-dimensional light, fast installation, no foundation.

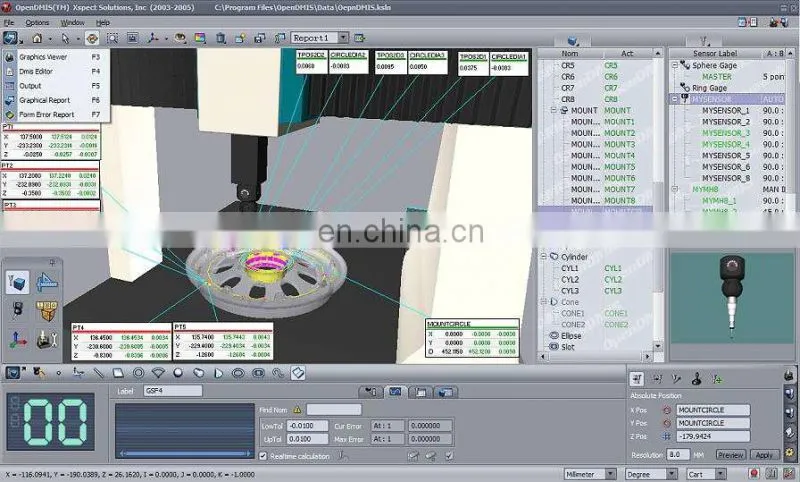

Rational-DMIS Software
Rational - DMIS is a newly developed large-scale integrated 3D measurement software package. In addition to the development and design of studio software, which takes into account the requirements of beginners for easy learning and use of the software and the functional requirements of high-level users for the software, more importantly, it has become a model for CMM measurement software standardization.
Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is totally different from the so-called "support DMIS" (the kernel is not DMIS). As we all know, DMIS has become an ISO standard (ISO 22093:2003)
Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is totally different from the so-called "support DMIS" (the kernel is not DMIS). As we all know, DMIS has become an ISO standard (ISO 22093:2003)

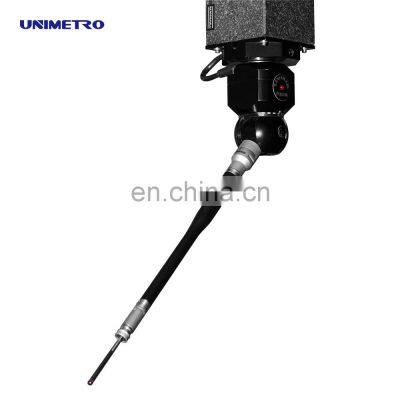

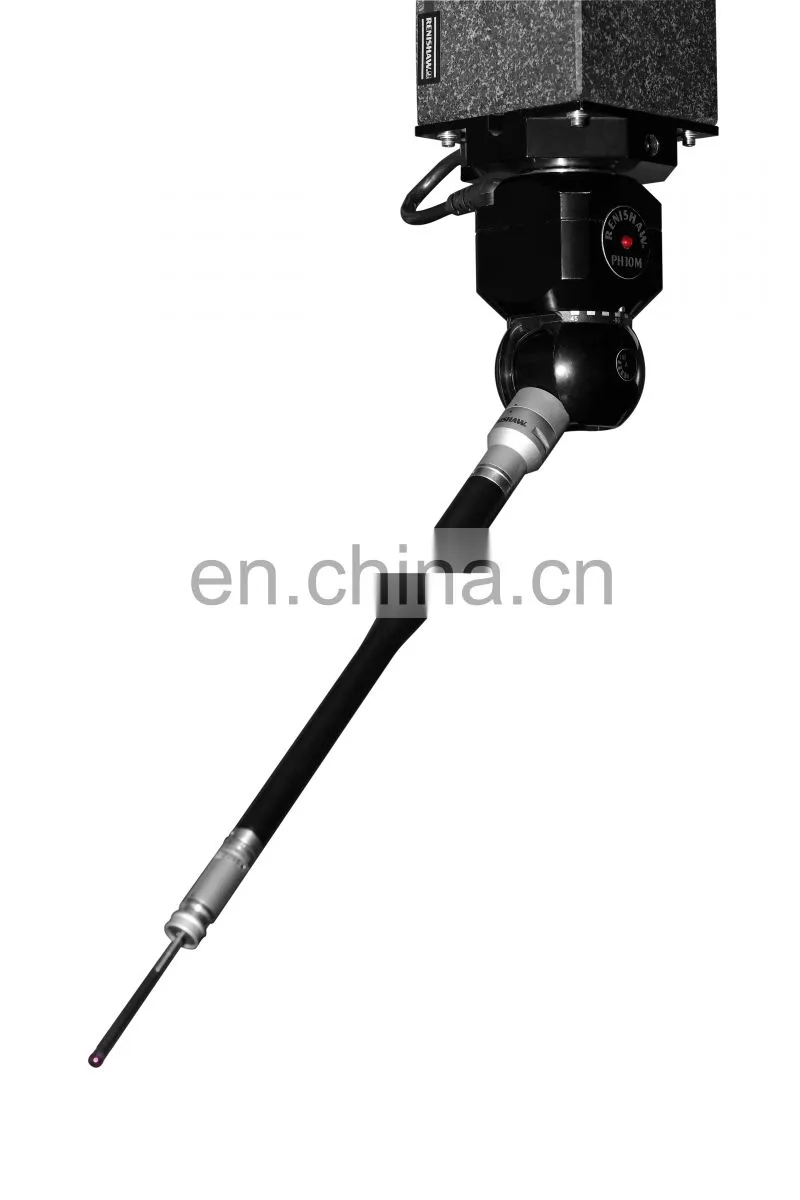

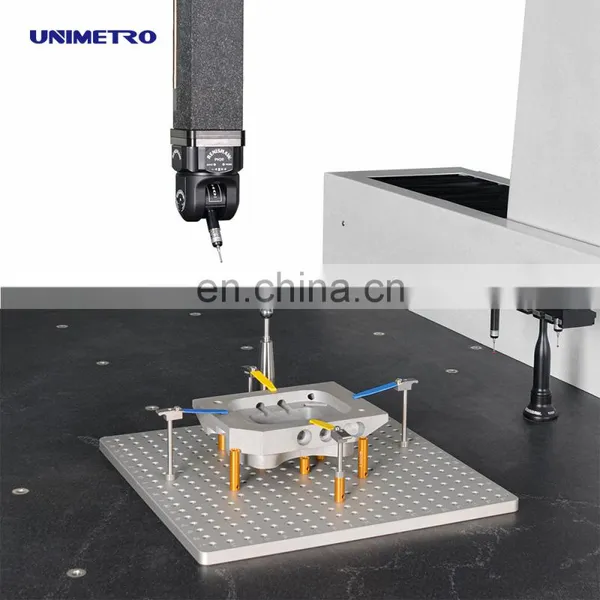

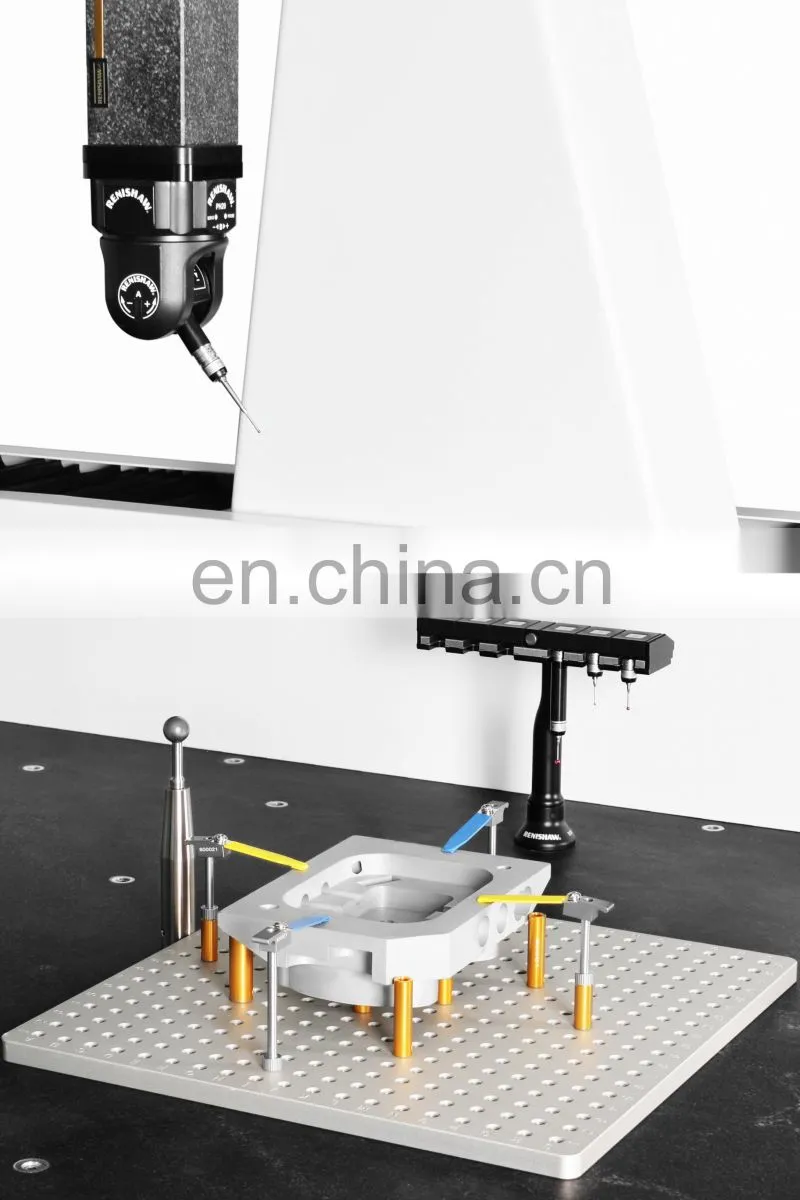

Coordinate Measuring Machine Probe System
MH20I Manual Head by RENISHAW
Indexing axis A:0°~90° Step distance:15°
Indexing axis B:±180° Step distance:15°
Spatial measurement orientation:168 times
Positional repeatability: 1.5um, Each axis is in steps of 15° with repeat positioning function.

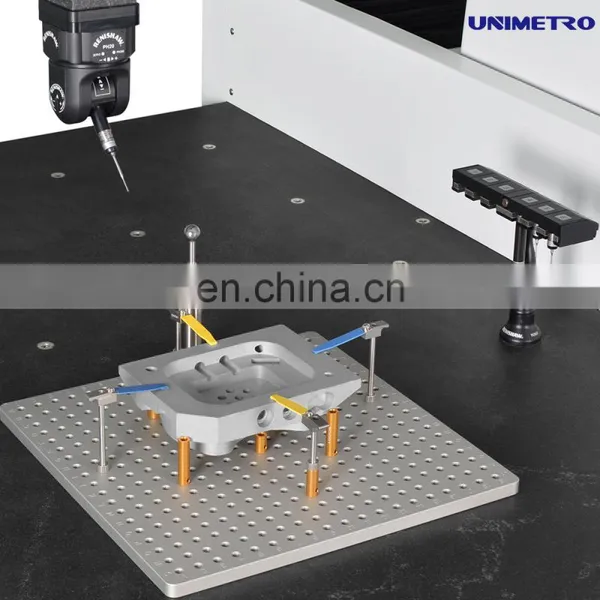

PH20MT Motorized Probe Heads by RENISHAW
Repeatability of position: +0.5 μm
Positioning steps: Limitless
Rotating axis ： 360°
Swing axis ：0°- 115°
Total number of positions ： Countless
Operational temperature ： 10-40℃
The PH10T can be connected to any M8 threaded interface probe and extension rod (Maximum allowable lengthening to 300mm).
It is mainly used for the measurement of cabinets, frames, gears, cams, worm gears, worms, blades, curves, curved surfaces, etc.in machinery, automobile, aviation, military, furniture, tool prototypes, machines and other small and medium-sized parts, molds and other industries. It can also be used in electronics, hardware, plastics and other industries. It can accurately detect the size, shape and shape tolerance of workpieces, thus completing tasks such as part inspection, shape measurement and process control.
