Home > Products > Image Measuring Instrument > Integrated measurement Roughness Profile Integrated Measuring Equipment

Integrated measurement Roughness Profile Integrated Measuring Equipment

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

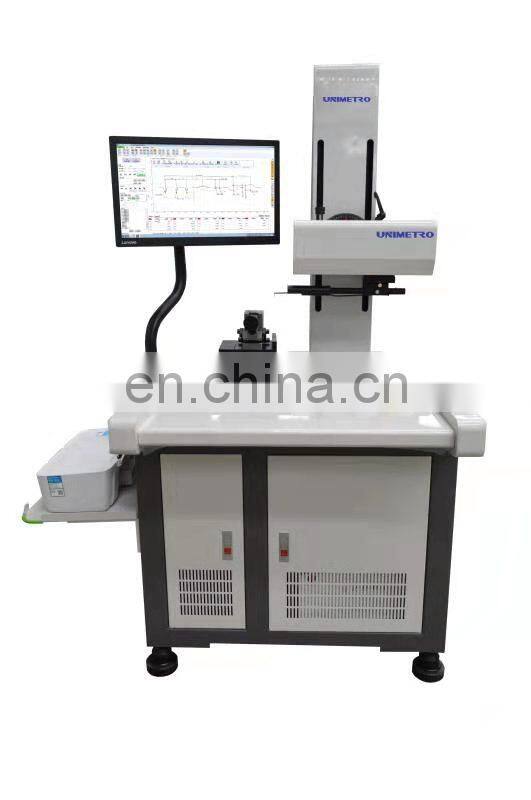

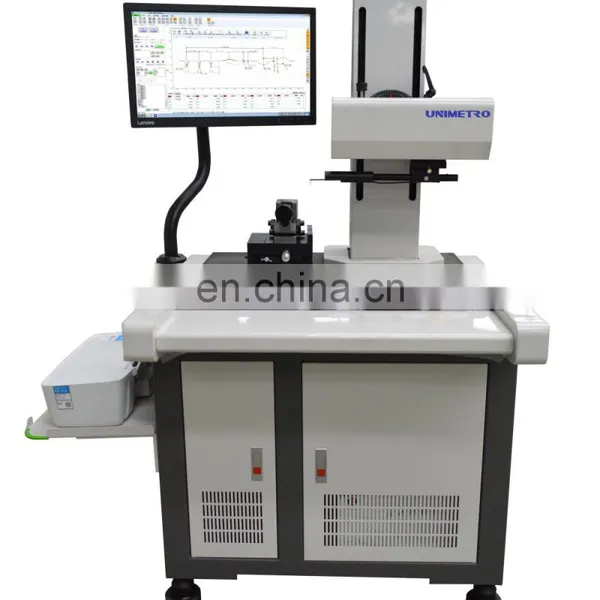

Roughness& Profile Measurement Equipment

Roughness profile measurement and analysis basis

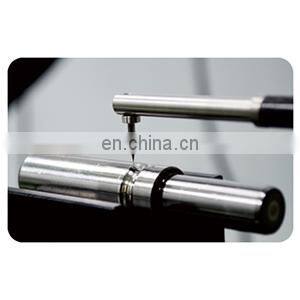

The measurable elements of all surfaces include size/shape/roughness and waviness. Many high-spec components need to analyze all the above elements. > Dimensions: The functional shape of the surface defined by the radius, angle, distance and linear shutdown between features. > Shape: The deviation of the target shape relative to the surface (plane, sphere, cone, etc.) is usually caused by machine tool errors. > Roughness: caused by factors such as cutting tools or processing. > Waviness: Non-ideal machine tool effect caused by vibration, insufficient rigidity or other unstable factors in the machining process

FEATURES AT A GLANCE

1.Standard type, with lower using cost

2. Double sensors (Inductive profile sensor+ digital roughness sensor)

3. Small measuring range, high accuracy roughness testing

4.One-piece, compound

PRODUCT SPECIFICATIONS

Model			SPR
Measuring range	X axis	100mm
	2	Z axis	320mm
	3	Z1 axis	C: ±12.5mm/R; ±420um
Contour accuracy	Z1 Linear accuracy	±（1.5+I0.2HI) um
	5	Arc	±（2+R/8) um
	6	Straightness	0.8um/100mm
	7	Angle	±2'
Roughness accuracy	Linear accuracy	±4%
		Residual noise	≤0.02um
		Repeatability	≤2nm
		Cutoff wavelength	0.025, 0.08, 0.25, 0.8, 2.5, 8mm
Driving speed	X axis	0.1~10mm/s
Driving speed		Z axis	0.5~10mm/s

Product packaging

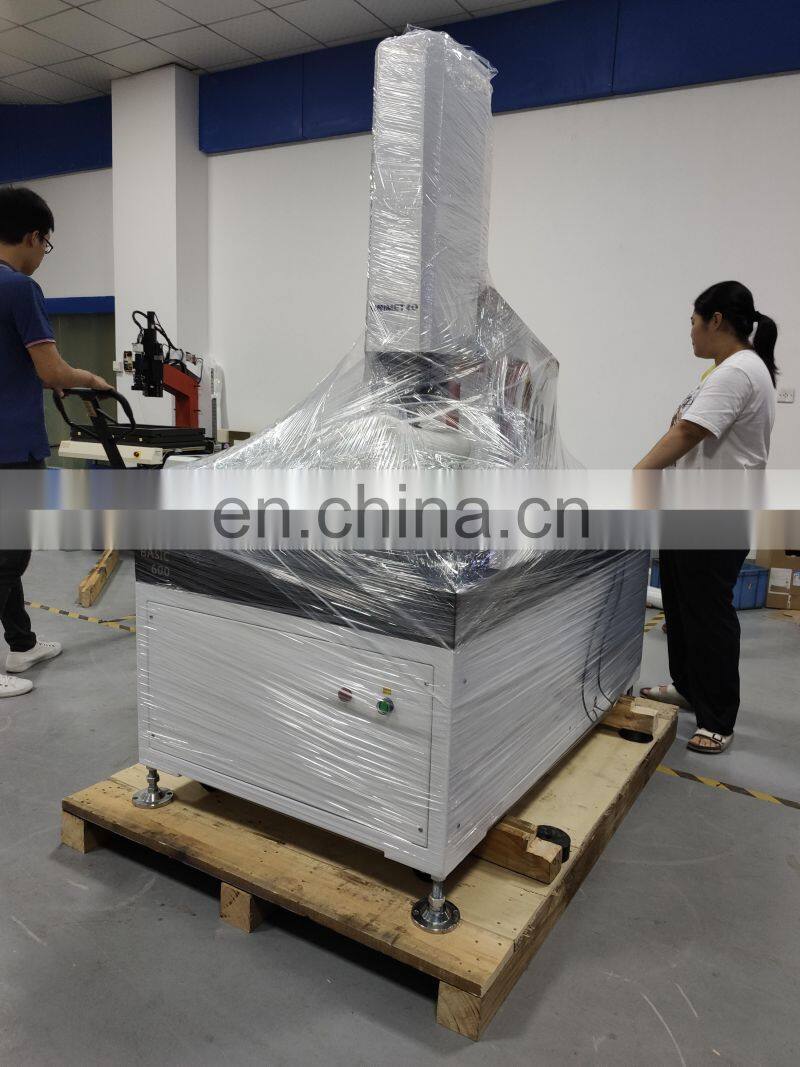

First: dustproof membrance

Second: white bubble film

Finally: wooden box reinforced

Ready for delivery

Placed on truck

Product packaging

About us

UNIMETRO helps you to build your own business!

UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.

Our service

Unimetro focus on per step in business process including the design, manufacture, installation and after sales service.
On-site service and guidance:
* 24 Hours online by phone, email, whatsup, skype, youtube, facebook…etc.
* Spot stock, Fast delivery
* After sale service
1 year warranty service and Free test software upgrades.
Technical training for technical engineers.
Provide matching testing solutions.
Site installation equipment and usage instructions.
