Product Overview
XY-AI-400 Full Automatic Kitchen Towel Paper Band Saw Cutting Machine
Outline

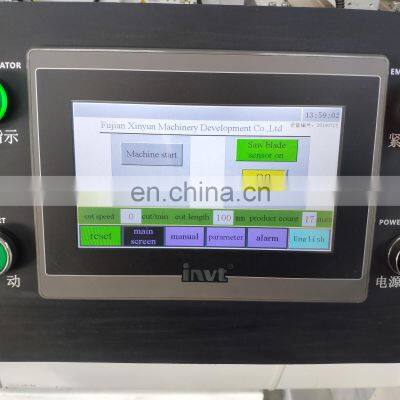

The equipment is operated by using PLC program control, big screen true color human computer interface. The precise servo control feed length, electro-mechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state. This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.
Video Link: https://youtu.be/F379NR8SUC8?list=PLHhy7tGo8q4nMkImfskWgrUEBDbVKh2RD
The equipment is operated by using PLC program control, big screen true color human computer interface. The precise servo control feed length, electro-mechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state. This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.
Video Link: https://youtu.be/F379NR8SUC8?list=PLHhy7tGo8q4nMkImfskWgrUEBDbVKh2RD
Function & Features
1.When the paper can not be cut down, the equipment will automatically stops and gives an alarm;
2.The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product;
3.The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product;
4.When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;
5.The waste paper head and paper end can be automatically sorted;
6.The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life;
7.The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency.

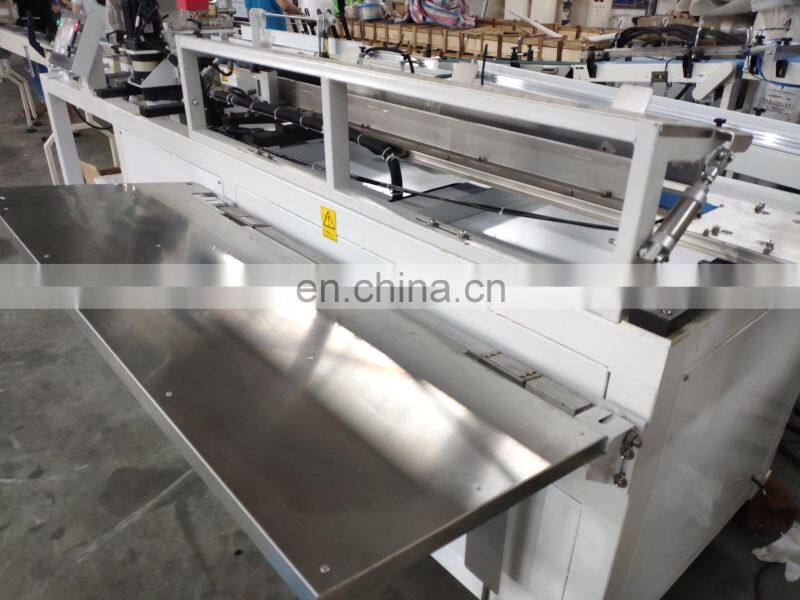

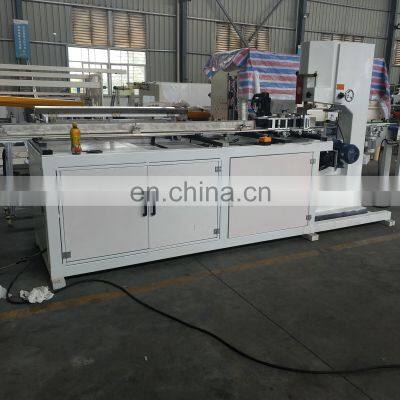

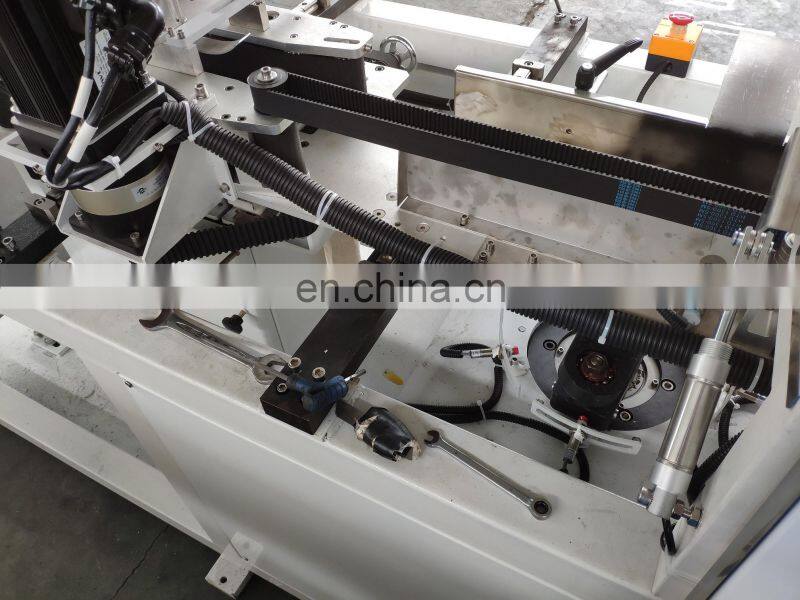

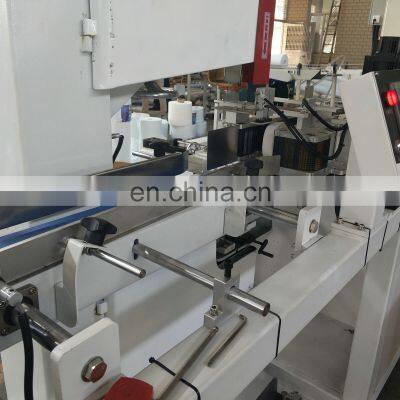

Details Images

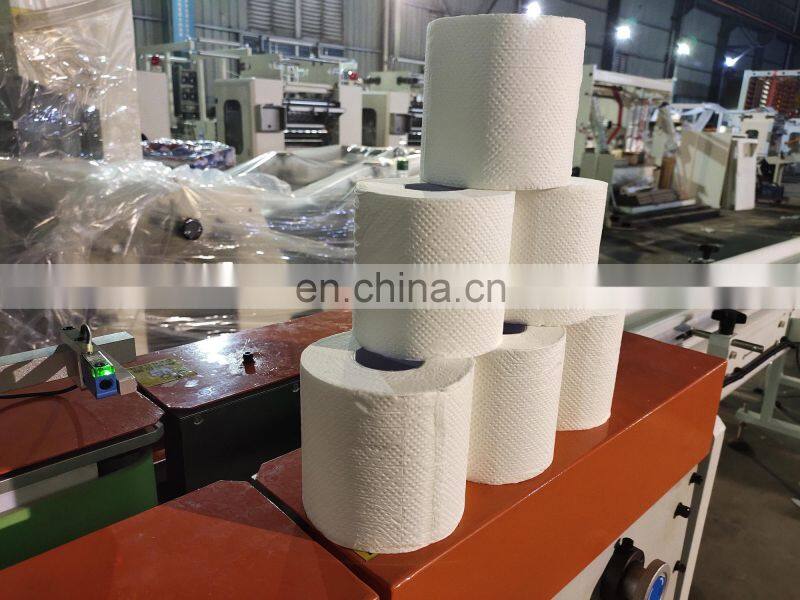

Finished Products
Product Paramenters
Cutting speed | 80-120 cuts/minute |
Cutting blade | band saw blade(Size 3750*60*0.6) |
Toilet log length | ≦2800mm(it can be made according to customer request) |
Finished toilet roll length | ≦250mm |
Finished toilet roll diameter | 80-130mm |
Cutting tolerance | ±1.5mm |
Power supply | 7.5kw 380V 50Hz |
Overall size | 2800*1500*2100mm |
Machine weight | 1100KG |
Related Products
XY-AI-280 Automatic Double Channel Roll Paper Log Saw Cutting Machine
XY-503IZ Automatic Single Roll Paper Packing Machine
XY-AI-500 Automatic Maxi Roll Paper Cutting Machine
XY-TN-269 Automatic Maxi Roll Shrink Wrapping Machine

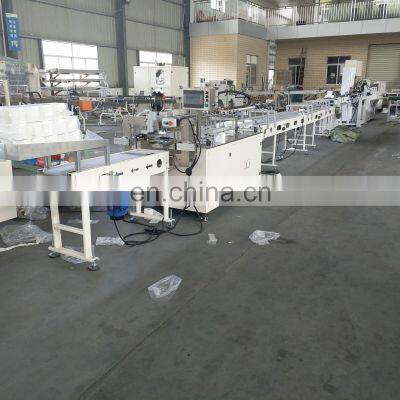

Workshop
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
