Products Description

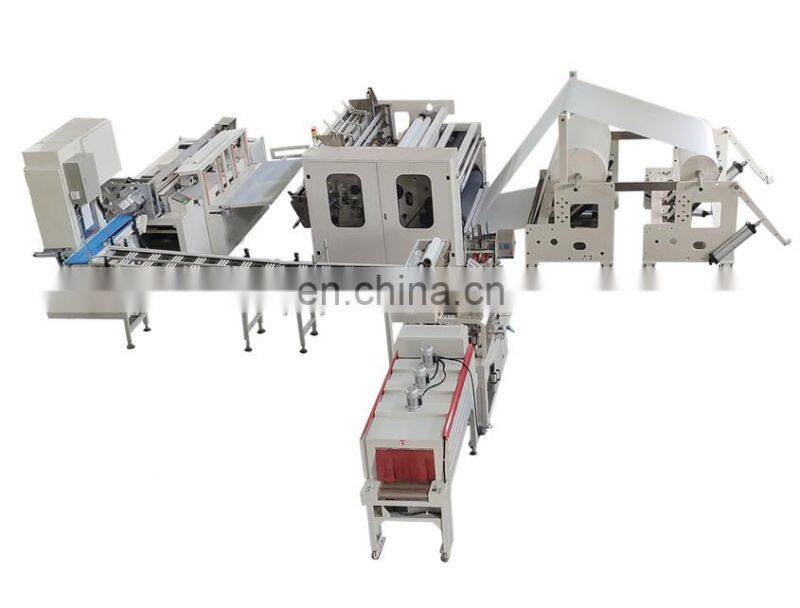

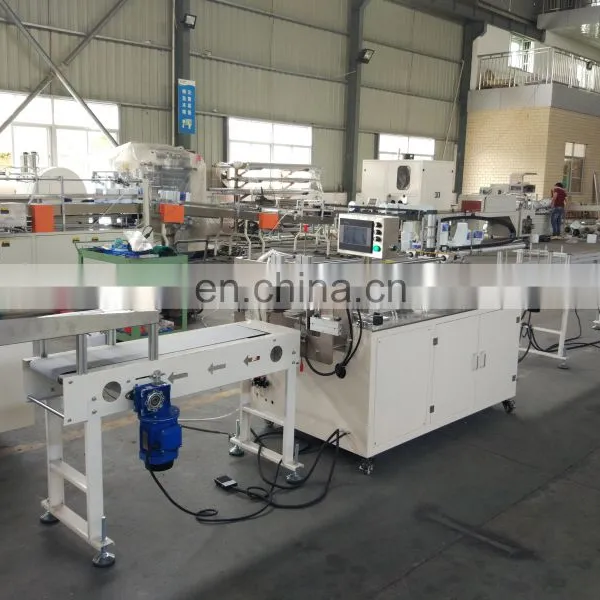

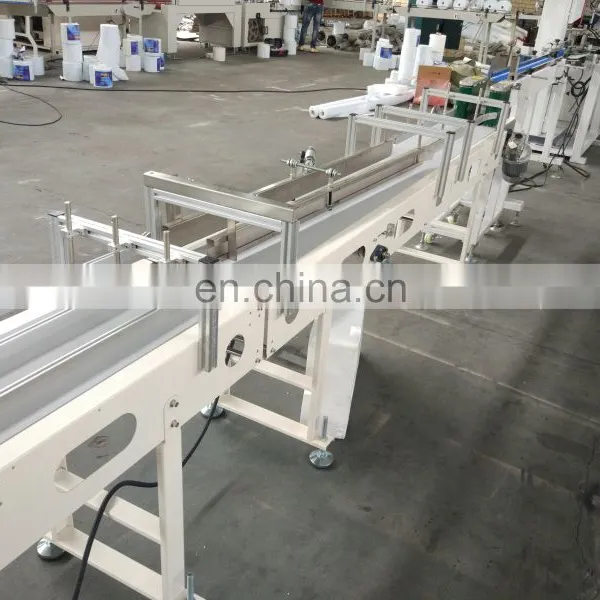

New Model Toilet Paper Bath Towel Making Machine
Main machine features:This production line consists of Wall Type Automatic Rewinding Machine, Band Saw and automatic Packing Machine. From jumbo roll
paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor
strength. It's best choice for the producing hygienic paper products.
Video Link: https://youtu.be/5ZXGSNGsjmw

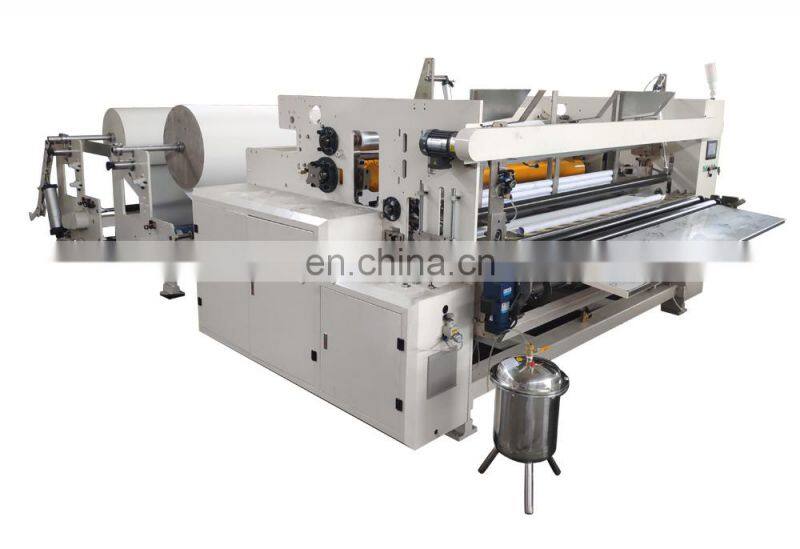

XY-TQ-2800B Wall Type Automatic Rewinding Machine
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high
speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric
fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high
speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric
fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Video Link： https://youtu.be/hYoDF3-9GIY
Jumbo Roll Width | 2800mm (Other size can be specified) |
Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
Jumbo Roll Inner Core Diameter | 3inches(76.2mm) (Other size can be specified) |
Perforation Distance | 4 anvil Blades(115mm)(Other size can be specified) |
Finished Product Diameter | Φ80~φ280mm |
Finished Product Inner Core Diameter | φ38~φ76mm |
Production Speed | 180-230 m/min |
Jumbo roll paper stand | 1 or 3 Stands(Need to be specified） |
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |

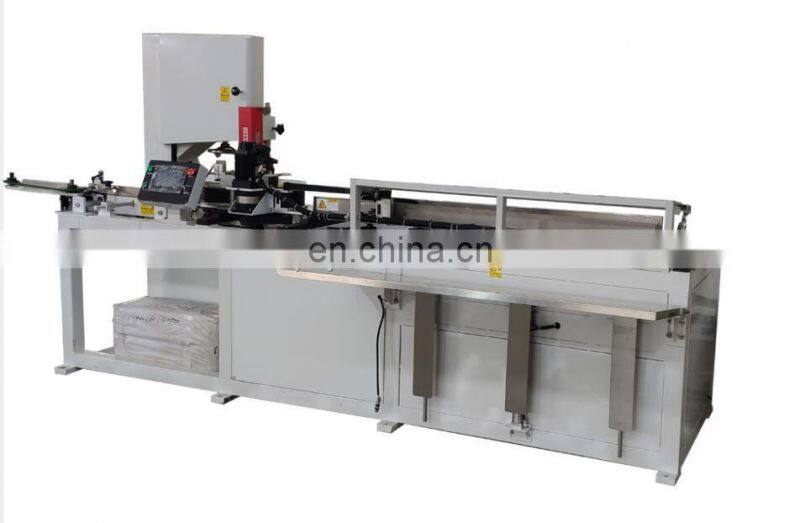

XY-AI-400 automatic small toilet paper band saw cutting machine

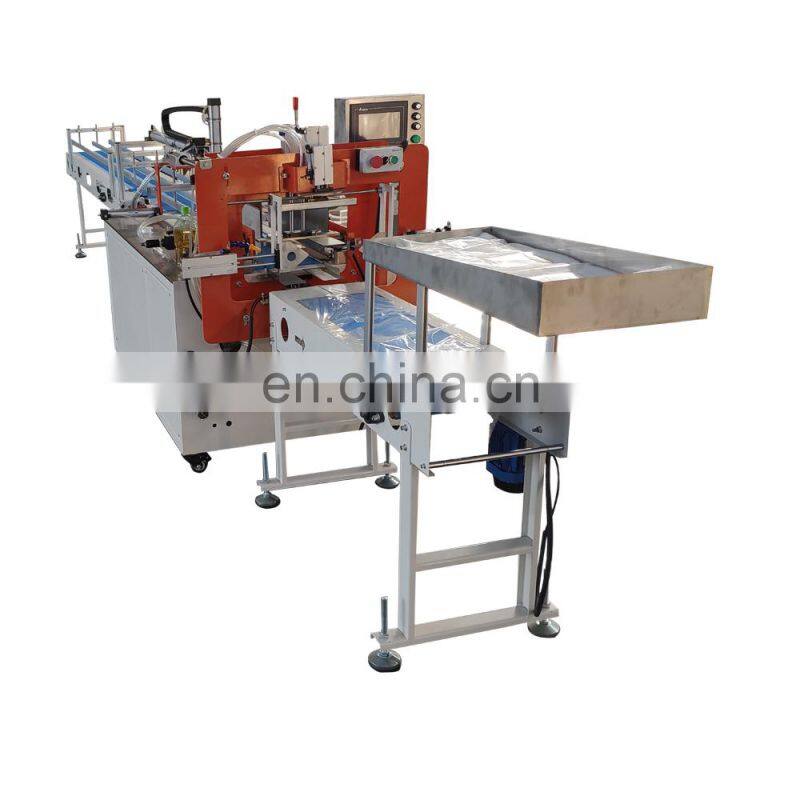

XY-AI-398A Semi Automatic Multi Rolls Packing Machine
Functions and Features
This machine is specially used for packaging toilet paper roll or kitchen towel paper, with a conveyor belt.
The machine to adapt to the toilet paper roll diameter is less than or equal to 90-120MM, 8 or 10 can be packaged or 12 rolls of
toilet paper.
The machine is simple, flexible, sealed bag is the one machine.
Functions and Features
This machine is specially used for packaging toilet paper roll or kitchen towel paper, with a conveyor belt.
The machine to adapt to the toilet paper roll diameter is less than or equal to 90-120MM, 8 or 10 can be packaged or 12 rolls of
toilet paper.
The machine is simple, flexible, sealed bag is the one machine.
Video Link：https://youtu.be/qGqNEQImHyw
Related Products

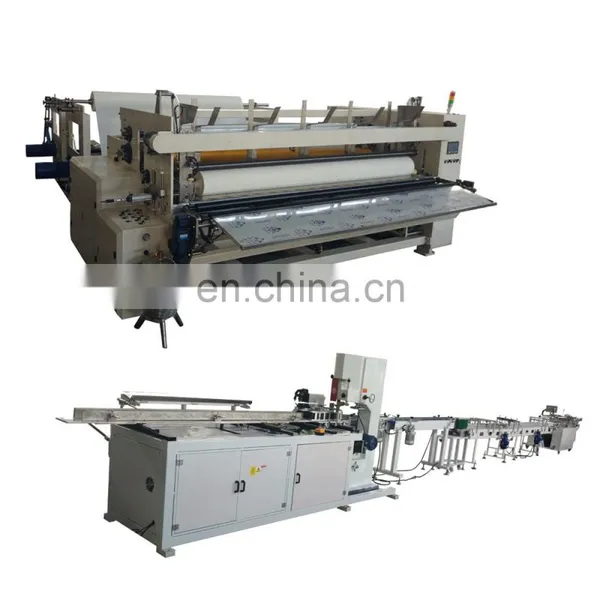

XY-TQ-A-H Automatic maxi roll paper making machine production line
Video Link: https://youtu.be/DDVQ18XcEzE
Video Link: https://youtu.be/DDVQ18XcEzE
XY-SD-A Autoamtic paper core making machine
Video Link： https://youtu.be/xghI38XVXJc
Packing & Delivery
Packing Details : Packing, standard export wooden pallet
Delivery Details : 50-60 days after order
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Our factory
Why Choose Us
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Certifications
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery
Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information,please feel free contact me!
Welcome to contact us to get more details !
We can design the machine according to your request.
