Product Overview

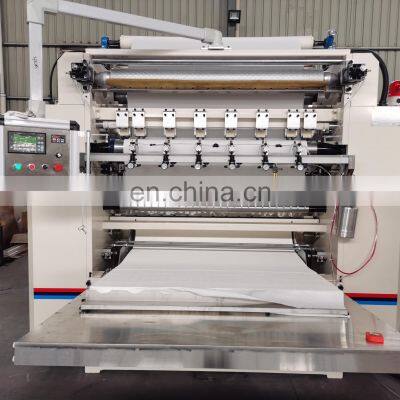

XY-GU-20A 10 Lines Automatic Facial Tissue Making Machine
Outline
This machine is for converting Facial Tissue Paper, enjoys automatic Embossing, V folding, Cutting and Counting function. Finished facial tissue paper is used widely in hotel, office and restaurant etc, that is convenient and sanitation. Box drawing type facial tissue machine use tissue jumbo roll to Process folded into "V" type paper processing equipment. The machine adopts the vacuum
adsorption principle and auxiliary manipulator folding.
Video Link: https://youtu.be/pKZkkHNNzGM
This machine is for converting Facial Tissue Paper, enjoys automatic Embossing, V folding, Cutting and Counting function. Finished facial tissue paper is used widely in hotel, office and restaurant etc, that is convenient and sanitation. Box drawing type facial tissue machine use tissue jumbo roll to Process folded into "V" type paper processing equipment. The machine adopts the vacuum
adsorption principle and auxiliary manipulator folding.
Video Link: https://youtu.be/pKZkkHNNzGM
Function & Features

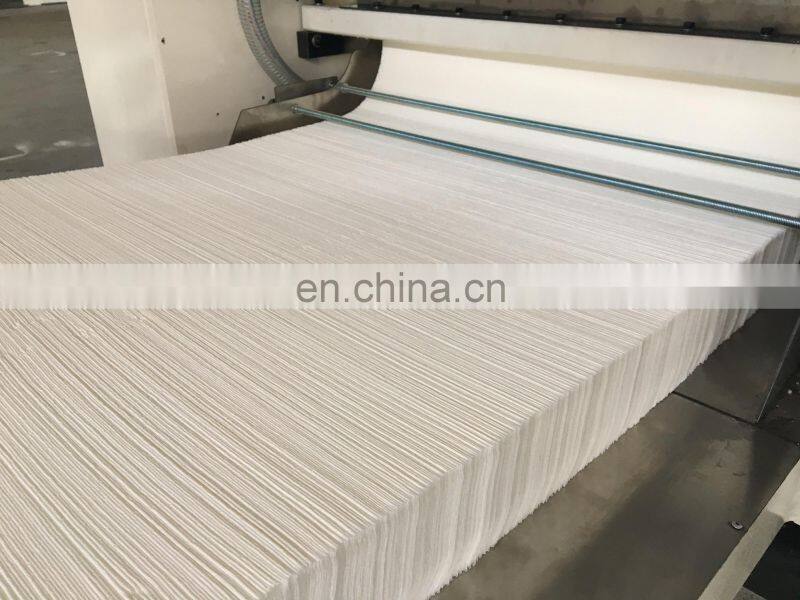

1. Automatic counting points a whole row output.

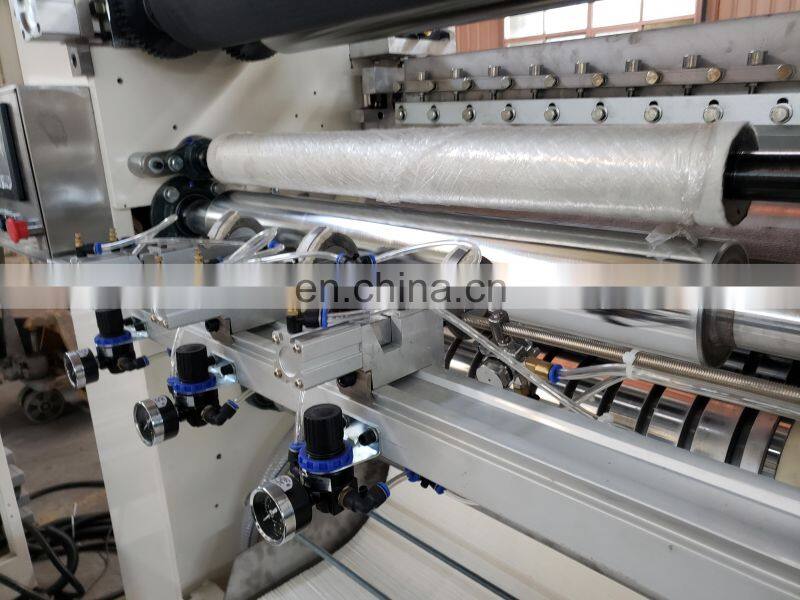

2. Helical blade shear, vacuum adsorption folding.
3. Stepless speed regulation unwind and can adapt to rewind high-low tension paper material.

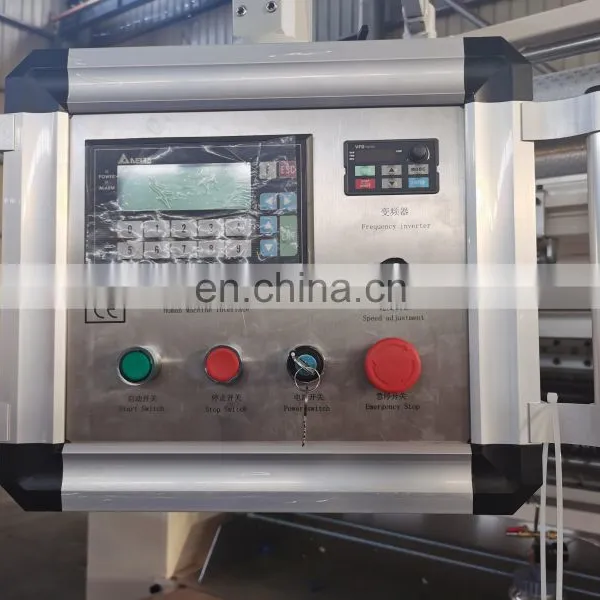

4. Adopt PLC computer programming control, pneumatic paper and easy to operate.
5. Frequency conversion control, saves energy.
6. The product width is adjustable, to meet different market requirement.
7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand. (The embossing pattern is chosen by the customers ).
8. It can make “V”type single layer towel and two layers glue lamination .(Optional)

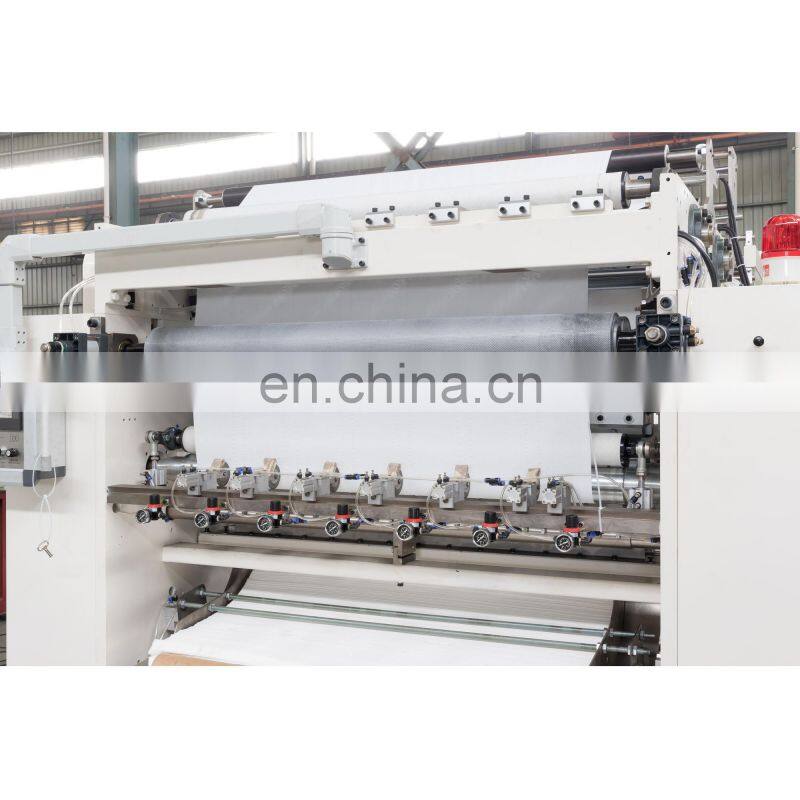

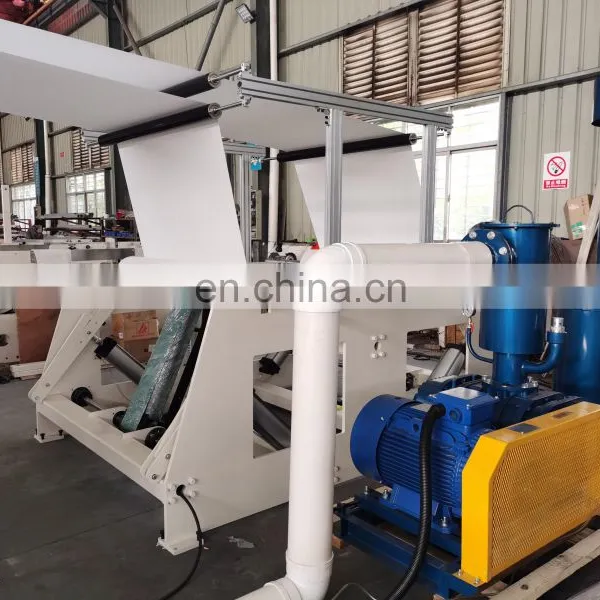

Details Images
Product Paramenters
Speed | 800-1000 sheets/line/minute |
Unfold size | 200mm(L)*200mm(W) |
Folding size | 100mm(L)*200mm(W) |

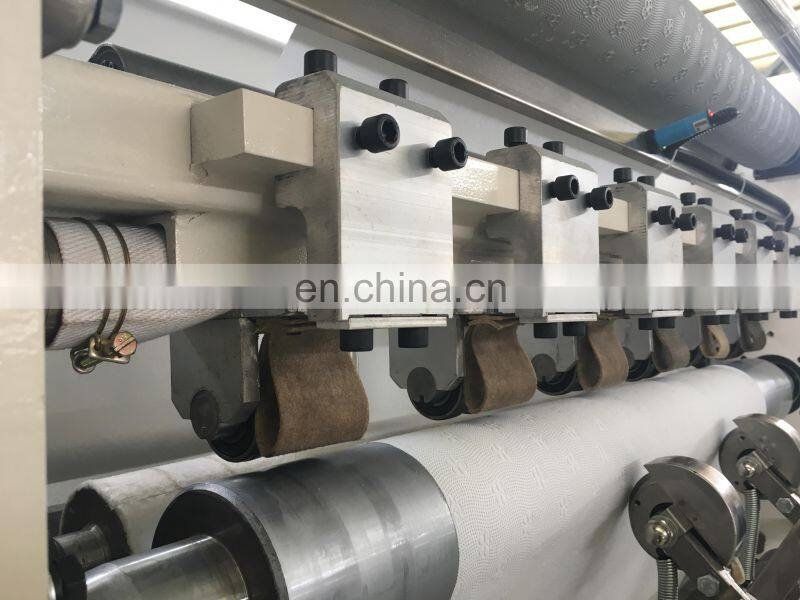

Full embossing unit | Steel to steel or steel to rubber embossing rollers |
Edge embossing unit | Steel to steel edge embossing |
Automatic counting unit | Malposition counting and Ink marked counting |
Air compressor | Prepared by buyer |
Power | 7.5-35KW (380V 50HZ 9phase) |
Overall size | Depends on machine model |
Weight | 2000-10000KG |

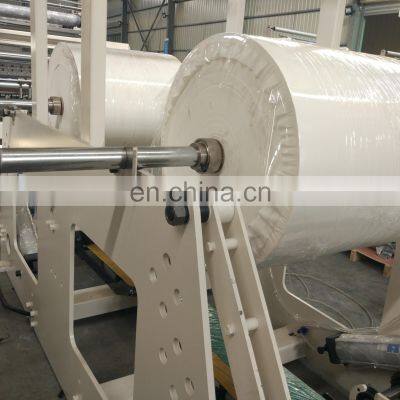

Jumbo roll size | 420-2800mm(W) 1200mm(D) |
Jumbo roll material quality | Paper Basic Weight: 14-16 gsm*2ply Jumbo Roll Paper Core: 3inches |
Related Products

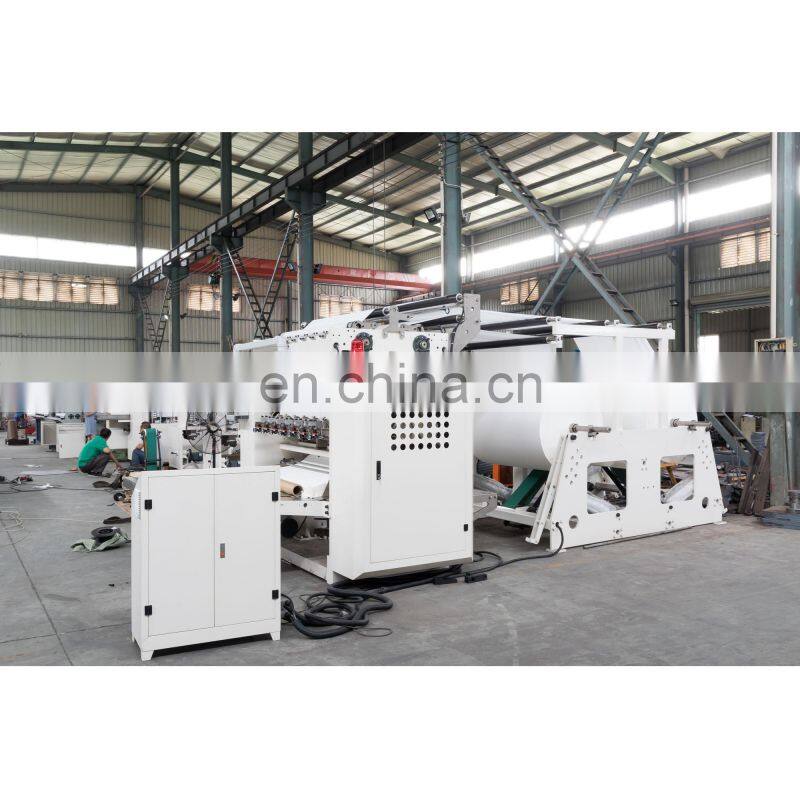

Workshop
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why Choose Us
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
