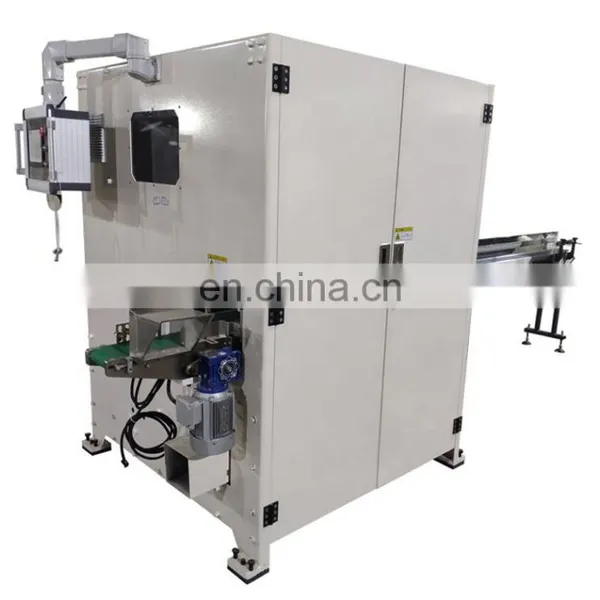

High Speed Facial Tissue Paper Making Machine Production Line photo-3
High Speed Facial Tissue Paper Making Machine Production Line photo-4
High Speed Facial Tissue Paper Making Machine Production Line photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Overview

XY-GU-A-B High Speed Facial
Tissue Paper Making Machine Production Line

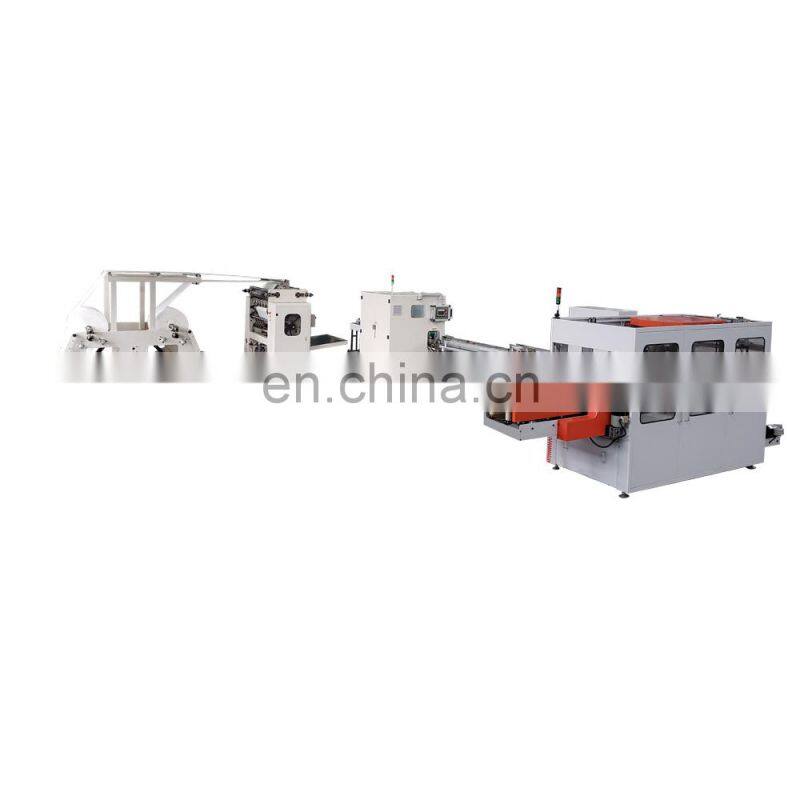

Outline

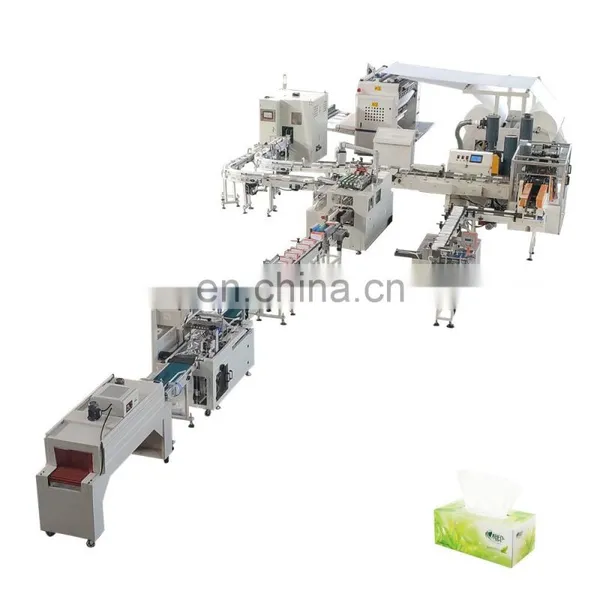

Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best choice of the production of tissue products.

Video Link: https://youtu.be/C6CLxz_XNoY

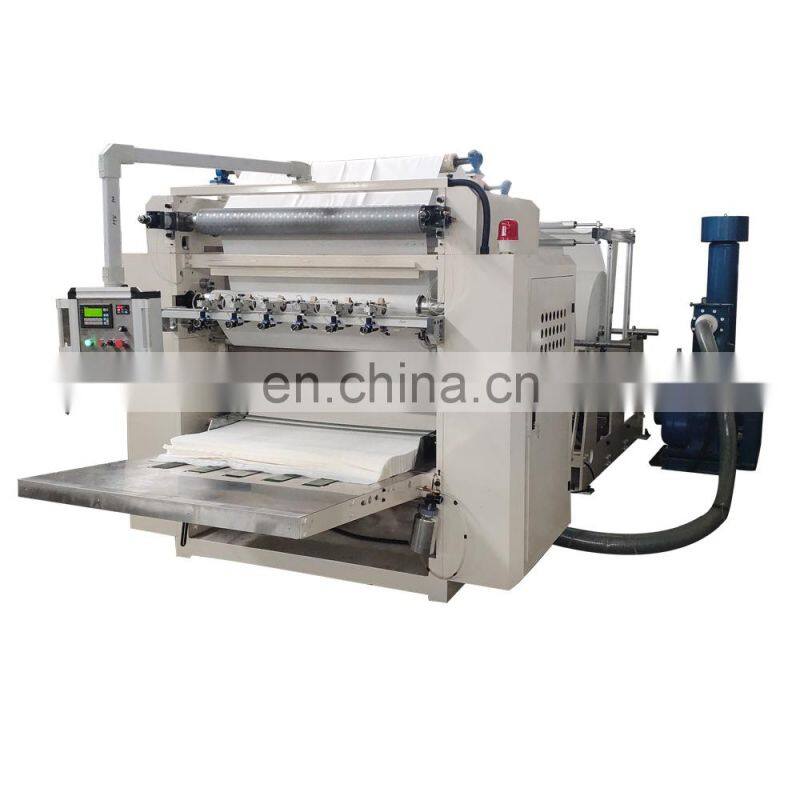

XY-GU-20A Automatic Facial Tissue Making Machine
XY-GU-20A Automatic facial tissue making machine working flow: The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and reciprocal folded into a sheet of rectangular or square facial tissue.
This machine adopts independent servo motor drive, and automatic paper tension control. It features of high speed ,nice folding and easy operation.

Video Link: https: https://youtu.be/zHeMr9giVAc
https://youtu.be/WkV2saTtTM4
https://youtu.be/pKZkkHNNzGM
Function And Features
1. Configuration pneumatic embossing, pneumatic separation. (embossing customer selected)
2. Wallboard rack and fast machine running stability is excellent.
3. Pneumatic jumbo roll loading, pneumatic paper driving, stepless speed ratio of adjustment, and
web tension control.
4. Equipped with roots type vacuum pump for stable running of the machine.
5. Make various products width as requirement.
6. Equipped with edge embossing unit to keep the two plies together.
7. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.
8. The web can be threaded on the machine by the two jog buttons, It’s more safety and easier to thread the web.
Technical Parameters
Machine model
XY-GU-20A
Folded size of finished products
100*(120-210)±2mm
Unfold size of finished products
200*210±2mm
The width of jumbo roll paper
1400mm
Diameter of jumbo roll paper
1200mm
Diameter of jumbo roll paper inner core
76.2mm
Daily Output (8 hours)
2000-3000Kg
Embossing unit
Steel to steel full embossing, Steel to steel edge embossing, independent pneumatic regulation
Slitting unit
Pneumatic slitting
Power
5.5KW Main motor
1.5KW(2 sets) Jumbo roll paper stand
Vacuum suction unit
18.5KW
Pneumatic system
3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system
Timing belt
Overall dimension
7950*2500*1850mm
Weight
6.0T

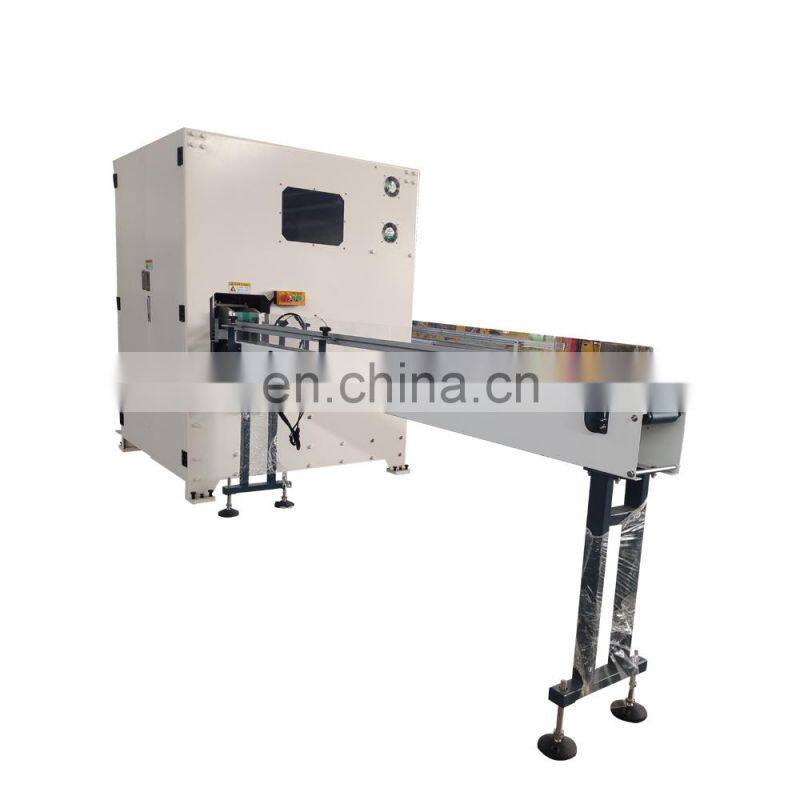

XY-GU-281 Single Channel Large Roundabout Cutting Machine
Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Technical Parameters
Designation
Parameter values
The length of unfinished products
minimum 500mm(or, mini 5lines)
The Height of finished product
15~120mm
Operating speed
20~120cut/min
Round blade outer diameter
Φ610mm
Paper cutting circular knife top speed
980R/min
Finished products specification
70~300mm
Paper width
70~110mm
Cutting Length
70~300mm
Left-over Length
20~65mm
Power
11KW
Power supply
380V 50Hz
Air pressure
0.5~0.8MPa
Machine Size
4600*1700*2500mm
Weight
2300~2600kg
Brake
Parameter setting (auto/manual)
Stepping sharpening knife
Parameter setting (auto)
Pneumatic sharpening knife
Parameter setting (auto/manual)
Blow air
without
The total pressure switch
Value (not)
Human-computer interface
DELTA (or selected by customer)
Frequency changer
DELTA
Servo Drive
DELTA

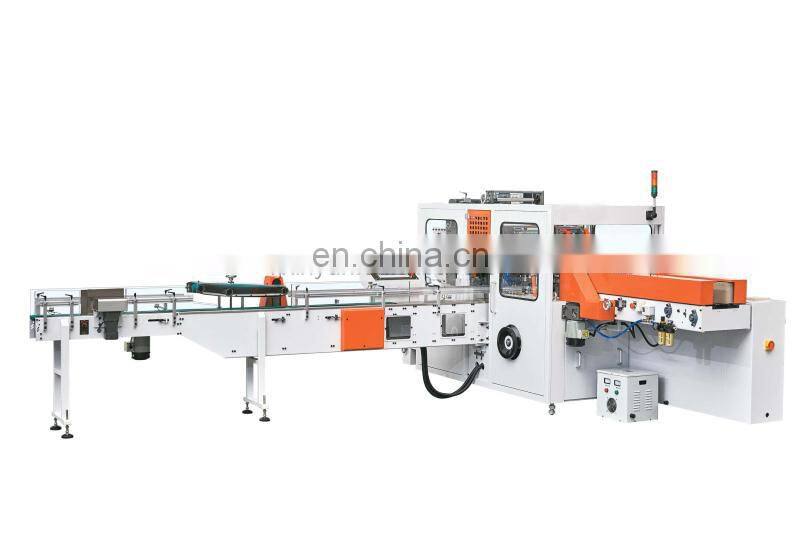

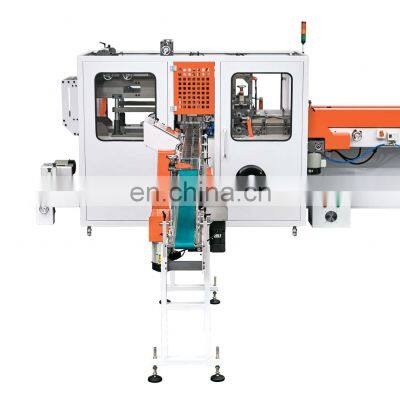

XY-BT-298 Full Automatic Three-dimensional Facial Tissue Packing Machine
XY-BT-298 is mainly used for Facial Tissue or Napkin Paper Three Dimensional Packing.

Video Link: https://youtu.be/KcVOCCqf0Q4
https://youtu.be/KV7U9UJuhxg
Function and Features
1.Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2.Adopt the controlling system of step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.
3.Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost.
4.Stepless-speed regulation with double transducer, automatically adjusting packing film length.
5.High autoimmunization, high specialization, high efficiency and but less trouble.
6.Different sizes can be handled easily thanks to a fast and simple changeover facility.
Technical Parameters
Technical Specifications
Description
Remark
Scope of application
Facial tissue, hand towel, napkin tissue
Equipment feeding mode
ASF Full automatic
Five sections of intelligent flexible feeding mode
Max. design mechanical speed
Max. 100 bags/min
Related to specification of packing
Max. stable operation speed
70 bags/min
Related to specification of packing
Tissue length range (finished product)
120 mm- 210 mm
Over this size can be customized
Tissue height range(finished product)
40 mm- 100 mm
Tissue width range(finished product)
90 mm- 105 mm
Spare parts for change size
3 sets
Standard configuration quantity, the accurate specifications drawn up by the user
Machine size(L*W*H)
4600*3620*1770mm
Standard size
Machine weight
About 3000KG
Packaging materials
CPP film
Film Thickness
0.04mm-0.055mm
Max film diameter
400 mm
Over this size can be customized
Diameter of film core
76mm
In accordance with international standards
Max film width
340mm
Over this size can be customized
Air compressor
Minimum air pressure 5MPA
Equipped by user
Power supply
380V/50HZ

Following China's electric power standard
Total drive power
4.8 KW
The sum of main motor, servo motor, Sum of speed regulating motor power
Total heating power
4.6 KW
Side seal, side sealing part of heating power combined
Voltage variation
+/-10%
In accordance with international standards
I/O Input/ I/O
24VDC
Electrical control system control circuit input
I/O Output/ I/O
24VDC
Electrical control system control circuit output
Equipment motion control mode
Three axle servo and axle location control
The electronic CAM motion curve
Equipment main transmission mode
20crmnti mechanical-cam+The electronic CAM drive
Machine standard colour
Gray, International color RAL 7032
The international color card color number RAL7032
Packaging style
Three-dimensional wrapping
vertical sealing first and then two side sealing

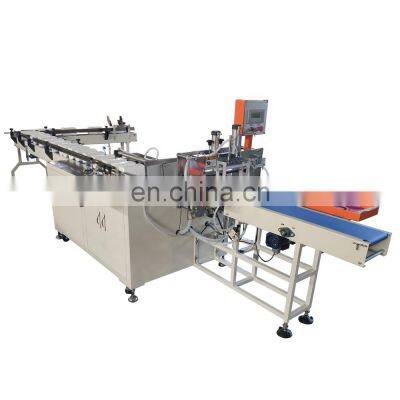

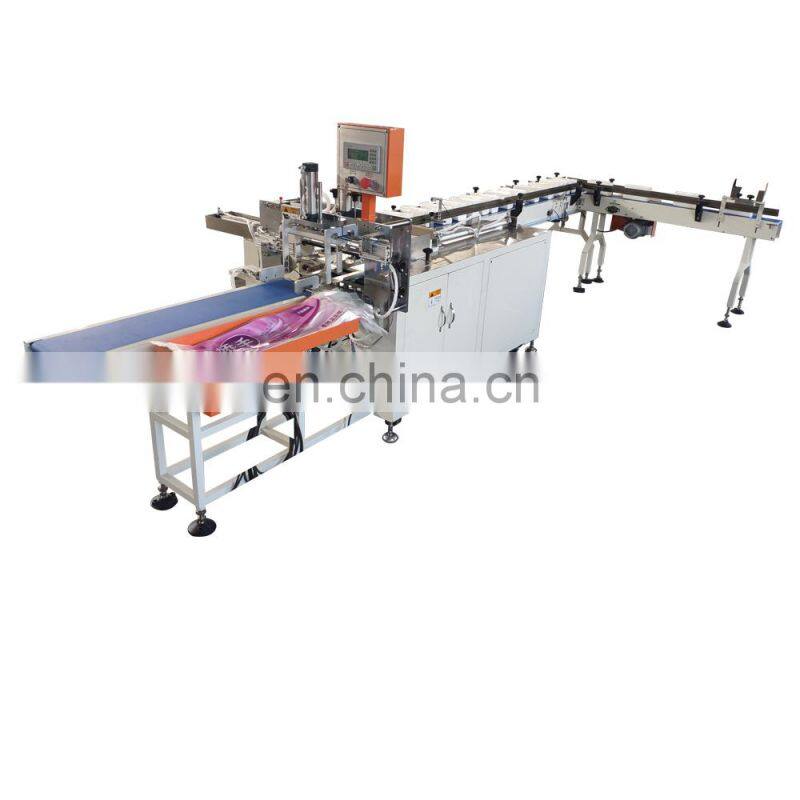

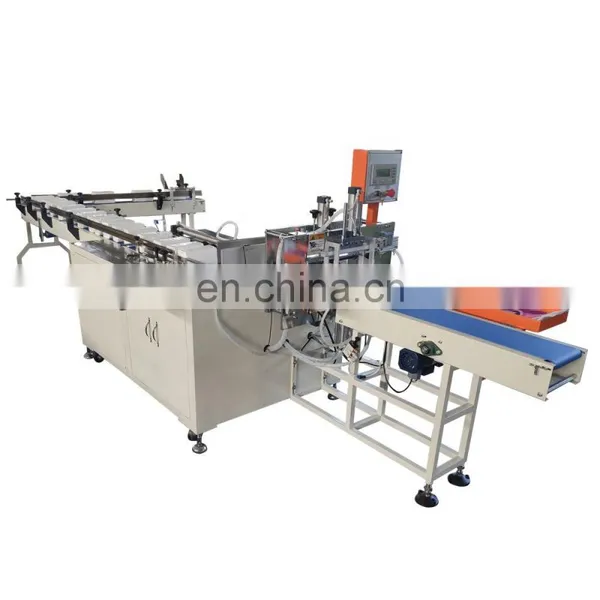

XY-GU-26B High Quality Multi Bags Tissue Paper middle packing machine
This machine is used for soft-drawing multi-piece middle bag packing, convey automatically by conveyor belt. This machine assemble paper-feeding, bagging, sealing and cutting in one body. Adopt PLC, liquid crystal text display parameter, easy to set, temperature control accuracy. Package sealing is good trimming. It is a semi-automatic machine that only need the worker to bagging.

Video Link: https://youtu.be/qwGu0xPFQfs
Speed
10-15 bags/min
Packing dimension
135-190*90-100*60-80 mm( the width will be selected by customer)
Power
1.2 Kw 380V 50Hz
Air supply
0.6 Mpa (prepared by buyer）
Overall size
3900*1200*1500 mm
Weight of machine
600 Kg
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why Choose Us
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
