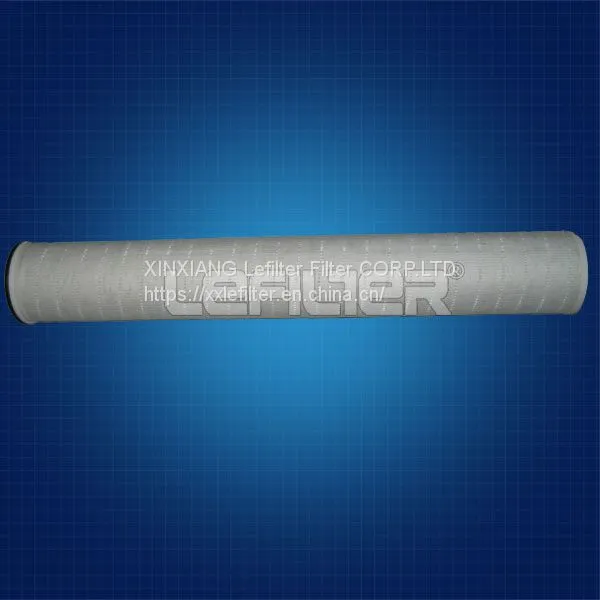

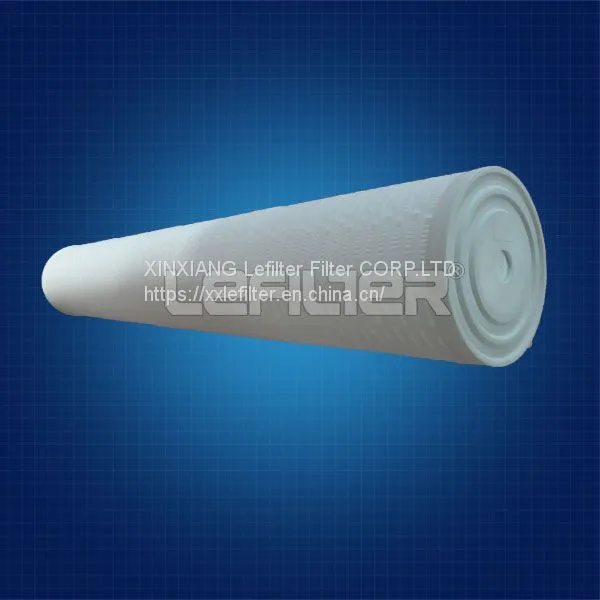

Help CenterHFU640UY200J High Flow Water Filter Cartridges
Related Products
-
HFU640UY400J High Flow Water Filter CartridgesUS$ 43.75 - 59.68MOQ: 4 Pieces -
Supply HF40PP005A01 PP Large Flow Water Filter CartridgeUS$ 43.08 - 70.00MOQ: 4 Pieces
-
Pentair Aqualine Large Flow Water Filter ALPF-60006US$ 56.95 - 62.50MOQ: 4 Pieces
-
Pentair Aqualine Large Flow Water Filter ALPF-60050US$ 56.95 - 62.50MOQ: 4 Pieces
-
Pentair Aqualine Large Flow Water Filter ALPF-60050US$ 56.95 - 62.50MOQ: 4 Pieces
The introduction of high flow rate water filter:
The high-flow filter element has a large diameter of 152mm（millimeter） and an opening at one
end. The large diameter design of the filter element increases the effective filter area and can greatly reduce the number of filter elements. In many applications, due to the large flow rate and long filter life, the use cost can be reduced.
The filter element filter body is generally composed of five layers, from the outside to the inside respectively: nylon mesh (outer skeleton) → → non-woven fabric → → PP membrane (glass fiber) → → non-woven fabric → → cloth net (nylon net / inner skeleton) )
The material of high flow rate water filter:
Filter material: folded deep polypropylene, folded glass fiber, melt blown polypropylene
Support material: polypropylene
End cap material: reinforced polypropylene
Inner/outer frame material: polypropylene
Maximum working temperature: Folded glass fiber: 121℃ Folded polypropylene: 82℃ Melt blown polypropylene: 65℃
Processing accuracy level: 1,4.5,6,10,20,40,70,100um
Filter element outer diameter: 6.3 inches (160mm) inner diameter: 3.5 inches (89mm) length: 20 inches (508mm) 40 inches (1016mm) 60 inches (1524mm)
Sealing ring material: ethylene propylene rubber, nitrile rubber (O type, U type)
High-flow water filter cartridges are commonly divided into: outer framework form, outer framework + inner framework form, outer winding belt form, etc. Most of the more used are the outer framework form
High-flow water filter elements generally filter from the inside to the outside
Initial pressure difference |
0.02MPa |
Replacement pressure drop |
2.4Bar |
Maximum allowable pressure drop |
3.4Bar |
Maximum operating temperatur |
80℃ |
Filtration direction |
From inside to outside, without internal skeleton |
Accuracy level |
1.5μm, 3μm, 4.5μm, 10μm, 20μm, 30μm, 70μm |
Filter material |
polypropylene glass fibe |
Sealing materials |
ethylene propylene rubber, rubber, fluorine rubber, neoprene |
Outer diamete |
6 inches (152.5mm) |
Length |
20 inches (508mm), 40 inches (1016mm), 60 inches (1524mm) |
Application fields
RO cartridge filtration, desalination pretreatment
The filtration of Power plant condensate water
Raw material drug, solvents and water filtration in biopharmaceutical industry
Filtration for bottled water, liquid glucose, edible oil, juice, soft drink and milk
Paints, coatings, petrochemical
Microelectronics, films, fibers, resins
Other Model Number:
3M |
HF40PP001A01,HF40PP001B01, HF40PP001C01, HF40PP001D01 HF40PP002A01,HF40PP002B01, HF40PP002C01,HF40PP002D01, HF40PP005A01,HF40PP005B01,HF40PP005C01, HF40PP005D01, HF40PP010A01,HF40PP010B01,HF40PP010C01, HF40PP010D01, HF40PP015A01,HF40PP015B01,HF40PP015C01, HF40PP015D01, HF40PP025A01,HF40PP025B01,HF40PP025C01, HF40PP025D01, HF40PP040A01,HF40PP040B01,HF40PP040C01, HF40PP040D01, HF40PP070A01,HF40PP070B01,HF40PP070C01, HF40PP070D01, HF60PP001A01,HF60PP001B01, HF60PP001C01,HF60PP001D01, HF60PP002A01,HF60PP002B01,HF60PP002C01, HF60PP002D01, HF60PP005A01,HF60PP005B01,HF60PP005C01, HF60PP005D01, HF60PP010A01,HF60PP010B01,HF60PP010C01, HF60PP010D01, HF60PP015A01,HF60PP015C01,HF60PP025A01,HF60PP025C01 HF6099025D01,HF60PP040A01,HF60PP040B01HF60PP040C01 HF60PP040D01 ,HF60PP070A01 ,HF60PP070B01 ,HF60PP070C01 HF60PP070D01 XLDM4.5-40U-HFJ XLDM1.5-20U-HFJ XLDM3-20U-HFJ XLDM4.5-20U-HFJ XLDM10-20U-HFJ XLDM20-20U-HFJ XLDM30-20U-HFJ XLDM70-20U-HFJ XLDM1.5-40U-HFJ XLDM3-40U-HFJ XLDM4.5-40U-HFJ XLDM10-40U-HFJ XLDM20-40U-HFJ XLDM30-40U-HFJ XLDM70-40U-HFJ XLDM1.5-60U-HFJ XLDM3-60U-HFJ XLDM4.5-60U-HFJ XLDM10-60U-HFJ XLDM20-60U-HFJ XLDM30-60U-HFJ XLDM70-60U-HFJ
|
|
HFU620UY020J, HFU640UY020J ,HFU660UY020J ,HFU620UY045J HFU640UY045J ,HFU660UY045J, HFU620UY100J ,HFU640UY100J HFU660UY100J ,HFU620UY200J ,HFU640UY200J, HFU660UY200J HFU620UY400J, HFU640UY400J ,HFU660UY400J ,HFU620UY700J HFU640UY700J,HFU660UY700J,HFU620CAS010JUW,HFU640CAS010JUW HFU660CAS010JUW,HFU620UY020H13,HFU640UY045H13,HFU660UY400H13 HFU620GF100H13, HFU640GF200H13, HFU660GF050H13, HFU620UY020J HFU640UY020J, HFU660UY020J ,HFU620UY045J ,HFU640UY045J HFU660UY045J, HFU620GF100H13, HFU640GF200H13 ,HFU660GF100H13 HFU620UY200J,HFU640UY200J,HFU660UY200J,HFU620UY400J,HFU640UY400J HFU660UY400J HFU620UY700J HFU640UY700J HFU660UY700J
|
|
PARKER |
MFNP010-40N,MFNP030-40N,MFNP045-40N，MFNP060-40N，MFNP100-40N MFNP010-60N,MFNP030-60N,MFNP045-60N，MFNP060-60N，MFNP100-60N RSCP010-20EPP RSCP030-20EPP RSCP045-20EPP RSCP100-20EPP RSCP200-20EPP RSCP400-20EPP RSCP900-20EPP RSCP010-40EPP RSCP030-40EPP RSCP045-40EPP RSCP100-40EPP RSCP200-40EPP RSCP400-40EPP RSCP900-40EPP RSCP010-60EPP RSCP030-60EPP RSCP045-60EPP RSCP100-60EPP RSCP200-60EPP RSCP400-60EPP RSCP900-60EPP RSCP010-20SPP RSCP030-20SPP RSCP045-20SPP RSCP100-20SPP RSCP200-20SPP RSCP400-20SPP RSCP900-20SPP RSCP010-40SPP RSCP030-40SPP RSCP045-40SPP RSCP100-40SPP RSCP200-40SPP RSCP400-40SPP RSCP900-40SPP RSCP010-60SPP RSCP030-60SPP RSCP045-60SPP RSCP100-60SPP RSCP200-60SPP RSCP400-60SPP RSCP900-60SPP RSMG010-20EPP RSMG030-20EPP RSMG045-20EPP RSMG100-20EPP RSMG200-20EPP RSMG400-20EPP RSMG010-40EPP RSMG030-40EPP RSMG045-40EPP RSMG100-40EPP RSMG200-40EPP RSMG400-40EPP RSMG010-60EPP RSMG030-60EPP RSMG045-60EPP RSMG100-60EPP RSMG200-60EPP RSMG400-60EPP RSMG010-20SPP RSMG030-20SPP RSMG045-20SPP RSMG100-20SPP RSMG200-20SPP RSMG400-20SPP RSMG010-40SPP RSMG030-40SPP RSMG045-40SPP RSMG100-40SPP RSMG200-40SPP RSMG400-40SPP RSMG010-60SPP RSMG030-60SPP RSMG045-60SPP RSMG100-60SPP RSMG200-60SPP RSMG400-60SPP |
Company certification:
Factory shots:
FAQ
1.Are you a trading company or manufacturer?
A:Manufacturer with factory.
2.Do you Accept OEM service?
A:Yes! we can manufacture according to your requirement.
3.What´s your Delivery Time?
A:Normally within 1-7 working days after order confirmation.
4.How do you pack products?
A:Normally,plastic bag inside and carton outside .We´ll do according to customers´ requirement.
