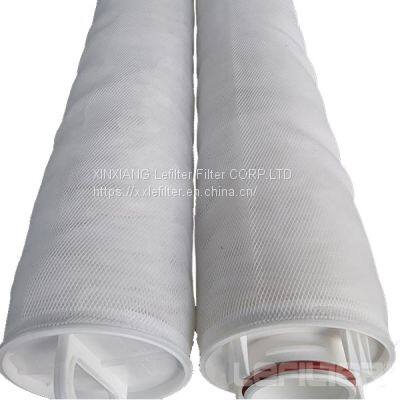

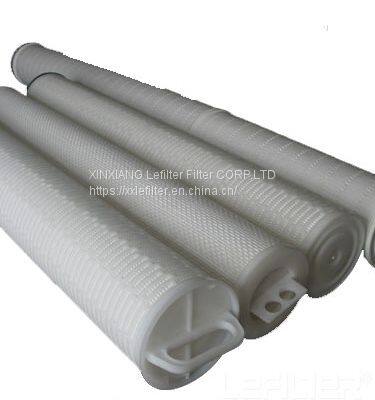

Supply HF40PP005A01 PP large flow water filter cartridge
- 5000 Piece / Pieces per Month
- Shanghai
- T/T L/C PayPal
- 7 days
- Pentair Aqualine large flow water filter ALPF-60006
- Pentair Aqualine large flow water filter ALPF-60050
- Pentair Aqualine large flow water filter ALPF-60050
- Customized Multi-column automatic backwash filter housing
- High quality Multi-column automatic backwash filter housing
- Supply Multi-column automatic backwash filter housing for plant
Product Details
Brand Name: | Lefilter | Place of Origin: | China | Model Number: | HF40PP005A01 |
Product Description
The introduction of big flow water filter element
Large flow filter element, also known as large flow water filter element, large flow filter element, large flow filter element, large flow pleated filter element, etc., usually adopts PP inner and outer skeletons, and the filter layer is made of protective nets, non-woven fabrics, filter membranes and other materials The composition can be adapted to most water treatment conditions.
Performance parameters of large flow filter element
Common size | 20’’(about 508mm) | Can also be based on Need to be customized |
40’’(about 1016mm) | ||
60’’(about 1524mm) | ||
Common precision | 1μm、3μm、10μm、 20μm、40μm、 50μm、60μm、100μm | Can be adjusted at any time according to working conditions |
Filter area | 20’’--4-5㎡ | |
40’’--8-10㎡ | ||
60’’--12-15㎡ | ||
Single filter flow | 20’’--10m³/H | 5μm Under precision conditions |
40’’--20m³/H | ||
60’’--30m³/H | ||
Filter form | From In to out | Different forms of filtration have different water inlet directions |
From out to In | ||
Initial pressure difference | 0.02MPa | |
Replace the pressure drop | 0.25Mpa | |
Maximum pressure drop | 0.35Mpa | |
Maximum use temperature | 80℃ |
Analysis of the structure of the large flow filter element
Because different brands of high-flow filter elements have similar structures, just take Pall's high-flow filter elements as an example:
End cap part: high-strength PP (polypropylene) end cap
Filter layer: protective mesh layer, non-woven fabric layer, high-precision filter membrane and other filter materials are evenly distributed and arranged
Connection part: The whole body does not contain any glue, and all the connection parts are glued in the form of ultrasonic hot melt to ensure strength and prevent secondary pollution;
Sealing part: select nitrile rubber, fluorine rubber, silica gel, etc. according to the working conditions, with superior anti-aging performance;
Process part: The "M" type high and low ripple process is used for arrangement, which can effectively increase the filter area and increase the dirt holding capacity of the filter element, thereby increasing the service life;
Frame part: special customized one-piece high-strength PP frame, equipped both inside and outside, to ensure the compression resistance of the filter element
Structural characteristics of large flow filter element
The combination of surface filtration and deep filtration can greatly reduce the number of filter elements compared with ordinary filter elements, and significantly reduce the size of the matching housing, reduce the number of filter element replacements and unnecessary losses during use, and improve work efficiency.
The foldable design increases the filter area and makes its pressure drop significantly lower than the ordinary filter element; the large-diameter design increases the dirt holding capacity, prolongs the service life, and reduces the production cost.
The convenient handle design significantly reduces the time to replace the filter element and makes it easy and portable to replace the filter element; the design of the sealed interface reduces the risk of bypass flow and ensures the sealing and reliability of the filter.
More model number of water filter cartridge:
3M | HF40PP001A01,HF40PP001B01, HF40PP001C01, HF40PP001D01 HF40PP002A01,HF40PP002B01, HF40PP002C01,HF40PP002D01, HF40PP005A01,HF40PP005B01,HF40PP005C01, HF40PP005D01, HF40PP010A01,HF40PP010B01,HF40PP010C01, HF40PP010D01, HF40PP015A01,HF40PP015B01,HF40PP015C01, HF40PP015D01, HF40PP025A01,HF40PP025B01,HF40PP025C01, HF40PP025D01, HF40PP040A01,HF40PP040B01,HF40PP040C01, HF40PP040D01, HF40PP070A01,HF40PP070B01,HF40PP070C01, HF40PP070D01, HF60PP001A01,HF60PP001B01, HF60PP001C01,HF60PP001D01, HF60PP002A01,HF60PP002B01,HF60PP002C01, HF60PP002D01, HF60PP005A01,HF60PP005B01,HF60PP005C01, HF60PP005D01, HF60PP010A01,HF60PP010B01,HF60PP010C01, HF60PP010D01, HF60PP015A01,HF60PP015C01,HF60PP025A01,HF60PP025C01 HF6099025D01,HF60PP040A01,HF60PP040B01HF60PP040C01 HF60PP040D01 ,HF60PP070A01 ,HF60PP070B01 ,HF60PP070C01 HF60PP070D01 XLDM4.5-40U-HFJ XLDM1.5-20U-HFJ XLDM3-20U-HFJ XLDM4.5-20U-HFJ XLDM10-20U-HFJ XLDM20-20U-HFJ XLDM30-20U-HFJ XLDM70-20U-HFJ XLDM1.5-40U-HFJ XLDM3-40U-HFJ XLDM4.5-40U-HFJ XLDM10-40U-HFJ XLDM20-40U-HFJ XLDM30-40U-HFJ XLDM70-40U-HFJ XLDM1.5-60U-HFJ XLDM3-60U-HFJ XLDM4.5-60U-HFJ XLDM10-60U-HFJ XLDM20-60U-HFJ XLDM30-60U-HFJ XLDM70-60U-HFJ
|
HFU620UY020J, HFU640UY020J ,HFU660UY020J ,HFU620UY045J HFU640UY045J ,HFU660UY045J, HFU620UY100J ,HFU640UY100J HFU660UY100J ,HFU620UY200J ,HFU640UY200J, HFU660UY200J HFU620UY400J, HFU640UY400J ,HFU660UY400J ,HFU620UY700J HFU640UY700J,HFU660UY700J,HFU620CAS010JUW,HFU640CAS010JUW HFU660CAS010JUW,HFU620UY020H13,HFU640UY045H13,HFU660UY400H13 HFU620GF100H13, HFU640GF200H13, HFU660GF050H13, HFU620UY020J HFU640UY020J, HFU660UY020J ,HFU620UY045J ,HFU640UY045J HFU660UY045J, HFU620GF100H13, HFU640GF200H13 ,HFU660GF100H13 HFU620UY200J,HFU640UY200J,HFU660UY200J,HFU620UY400J,HFU640UY400J HFU660UY400J HFU620UY700J HFU640UY700J HFU660UY700J
| |
PARKER | MFNP010-40N,MFNP030-40N,MFNP045-40N,MFNP060-40N,MFNP100-40N MFNP010-60N,MFNP030-60N,MFNP045-60N,MFNP060-60N,MFNP100-60N RSCP010-20EPP RSCP030-20EPP RSCP045-20EPP RSCP100-20EPP RSCP200-20EPP RSCP400-20EPP RSCP900-20EPP RSCP010-40EPP RSCP030-40EPP RSCP045-40EPP RSCP100-40EPP RSCP200-40EPP RSCP400-40EPP RSCP900-40EPP RSCP010-60EPP RSCP030-60EPP RSCP045-60EPP RSCP100-60EPP RSCP200-60EPP RSCP400-60EPP RSCP900-60EPP RSCP010-20SPP RSCP030-20SPP RSCP045-20SPP RSCP100-20SPP RSCP200-20SPP RSCP400-20SPP RSCP900-20SPP RSCP010-40SPP RSCP030-40SPP RSCP045-40SPP RSCP100-40SPP RSCP200-40SPP RSCP400-40SPP RSCP900-40SPP RSCP010-60SPP RSCP030-60SPP RSCP045-60SPP RSCP100-60SPP RSCP200-60SPP RSCP400-60SPP RSCP900-60SPP RSMG010-20EPP RSMG030-20EPP RSMG045-20EPP RSMG100-20EPP RSMG200-20EPP RSMG400-20EPP RSMG010-40EPP RSMG030-40EPP RSMG045-40EPP RSMG100-40EPP RSMG200-40EPP RSMG400-40EPP RSMG010-60EPP RSMG030-60EPP RSMG045-60EPP RSMG100-60EPP RSMG200-60EPP RSMG400-60EPP RSMG010-20SPP RSMG030-20SPP RSMG045-20SPP RSMG100-20SPP RSMG200-20SPP RSMG400-20SPP RSMG010-40SPP RSMG030-40SPP RSMG045-40SPP RSMG100-40SPP RSMG200-40SPP RSMG400-40SPP RSMG010-60SPP RSMG030-60SPP RSMG045-60SPP RSMG100-60SPP RSMG200-60SPP RSMG400-60SPP |
Large flow rate water filter Application field
1. Food industry: filtration of alcohol, beverages and drinking water.
2. Electronic industry: pre-filtration of pure water and ultra-pure water.
3. Petroleum and chemical industry: filtration of various organic solvents, acids, lye, oilfield water injection filtration.
4. Ultrafiltration equipment RO security filtration seawater desalination pretreatment
5. Power plant condensate filtration
6. Water filtration in the biopharmaceutical industry
7. Paint, coating, petrochemical industry
8. Microelectronics film fiber resin
Company shot:
Company certification:
FAQ
1.Are you a trading company or manufacturer?
A:Manufacturer with factory.
2.Do you Accept OEM service?
A:Yes! we can manufacture according to your requirement.
3.What´s your Delivery Time?
A:Normally within 1-7 working days after order confirmation.
4.How do you pack products?
A:Normally,plastic bag inside and carton outside .We´ll do according to customers´ requirement.
Contact us:
Nora Whatsapp:+86 15537368730
e-mail:sales08@lefilter.com
