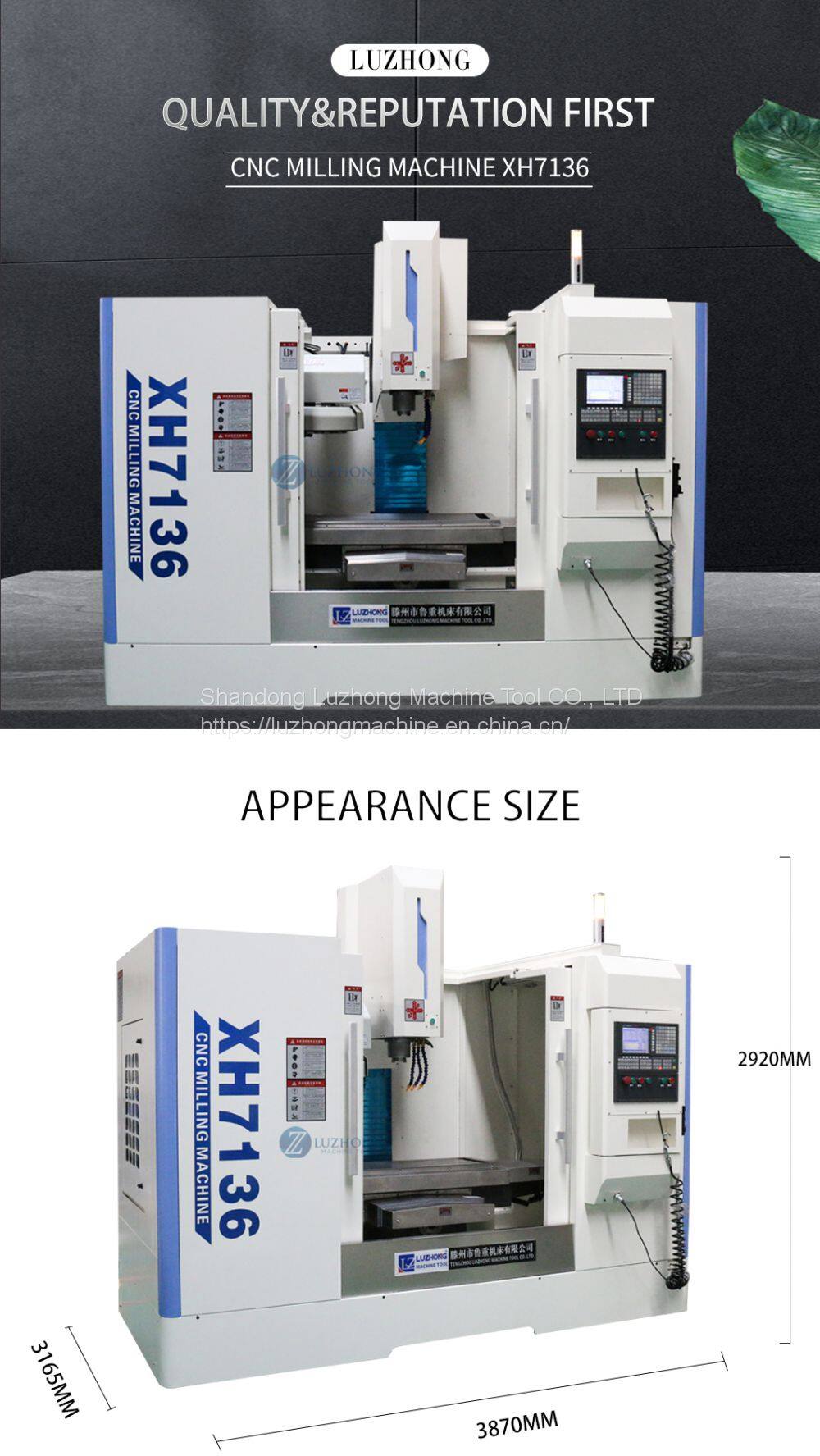

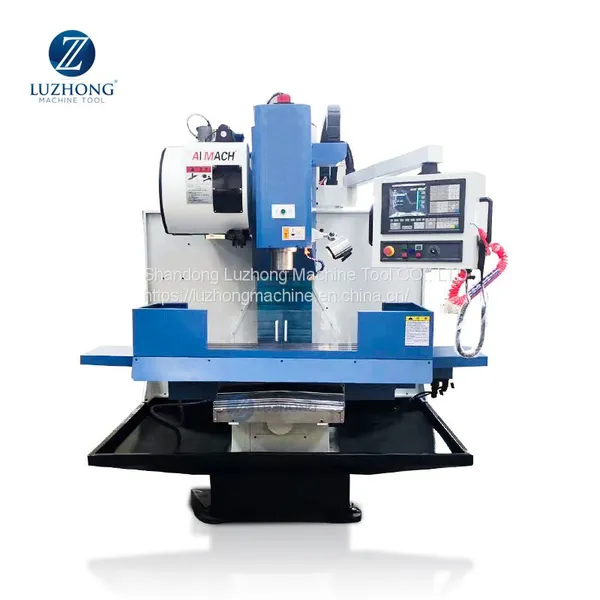

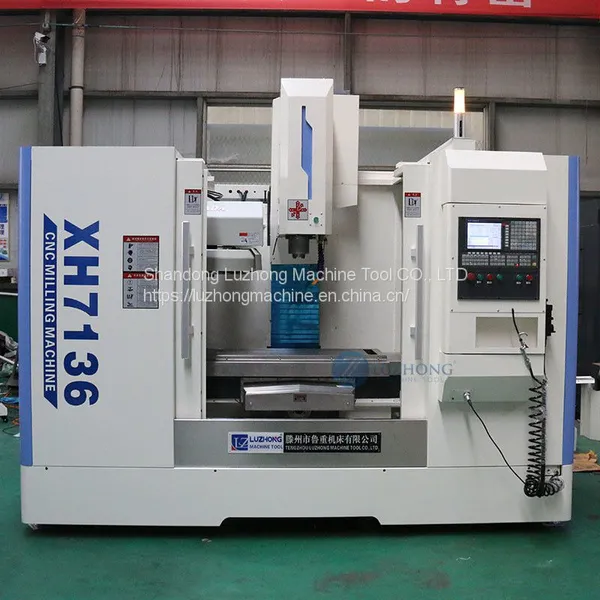

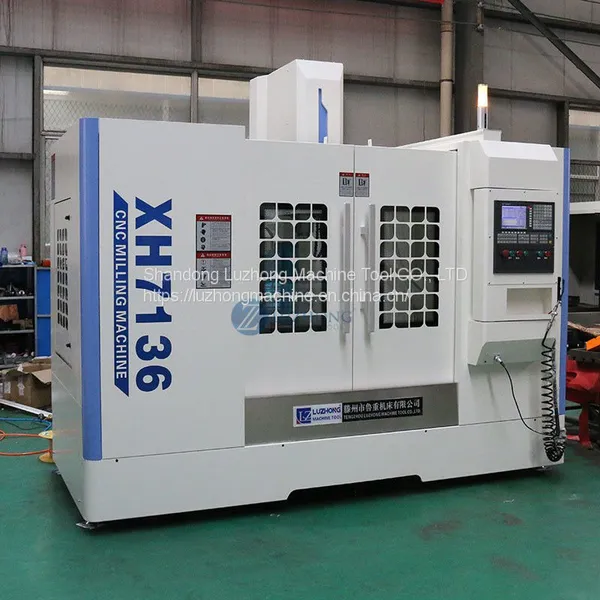

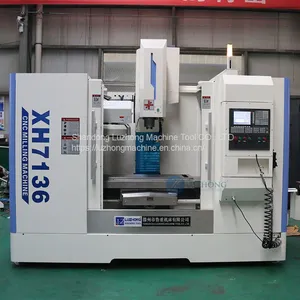

XH7136/XK7136 Cheaper high precision cnc vertical milling center with umbrella tool post
- 2000 Set / Sets per Month
- Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow
- 20 days
You May Like
-
ZX50C Machine Tool Small Bench Swivel Head Drilling and Milling Machines
-
ZX7550CW Driling and milling machine with high precision and cheaper price
-
ZX6332 Universal Metal Drilling and Milling Machine
-
ZX6350A Cheaper Horizontal and Vertical Drilling and Milling Machine
-
ZX6350C Factory direct sale vertical milling and drilling machine
-
ZX6350D manufacture sale vertical drilling and milling machine
Product Details
Brand Name | Luzhong | Place of Origin | China | |
Model Number | XH7136/XK7136 | Type | Vertical | |
Certification | ISO9001,CE certification | Warranty | 1 year | |
Weight | 2800 kg | Dimension(L*W*H) | 2380x1900x2350mm | |
Voltage | customized | Condition | New | |
Power(W) | 5.5KW | CNC or Not | CNC |
Product Description
XH7136/XK7136 Cheaper high precision cnc vertical milling center with umbrella tool post
Product Description
Standard accessories :
Fanuc 0I Mate control system
Lubricating system
Full guard
Manual chip conveyor
Optional accessories :
Control system :KND,GSK,Siemens etc.
Chain type automatic chip conveyor
The forth axis
Spindle center water outlet ,spindle oil coolant
Product Parameters
Specifications | Units | XK7136 | XH7136 |
Table size | mm | 1250x360 | 1250x360 |
X axis travel | mm | 900 | 900 |
Y axis travel | mm | 400 | 350 |
Z axis travel | mm | 500 | 500 |
Max. worktable load | kg | 460 | 300 |
T slot(number-width-pitch) | 3-18x80 | 3-18x80 | |
Max. spindle speed | rpm | 8000 | 8000 |
Spindle taper | mm | BT40 | BT40 |
Main motor power | kw | 5.5 | 5.5 |
X/Y/Z rapid traverse speed | m/min | 6/6/4 | 10/10/8 |
Cutting feed speed | mm/min | 1-10000 | 1-2000 |
Guide rail type | Hard rail | Hard rail | |
Distance from spindle axis to column surface | mm | 460 | 460 |
Distance between spindle nose and worktable surface | mm | 100-600 | 100-600 |
Positioning accuracy | mm | ±0.04 | ±0.04 |
Repeat positioning accuracy | mm | ±0.02 | ±0.02 |

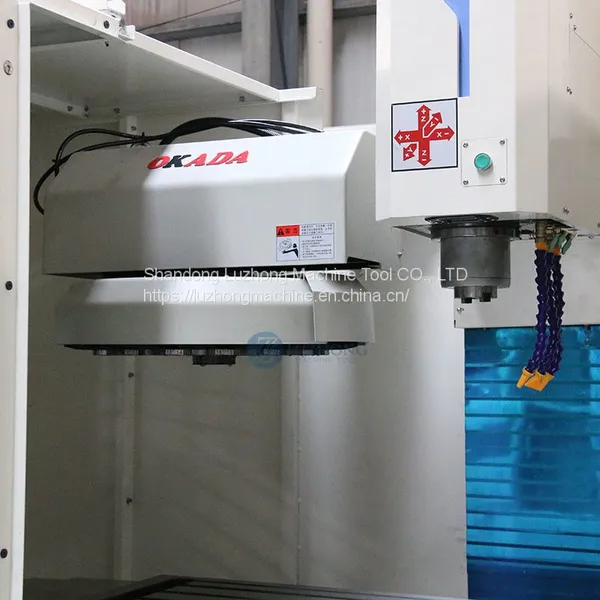

Tool magazine | - | 16 Armless/(Optional: Arm 16 ) | |
Max. tool diameter | mm | - | |
Max.tool weight | kg | - | |
Machine weight | kg | 2800 | 2600 |
Overall dimension | mm | 2380x1900x2350 | 3000x2400x2500 |

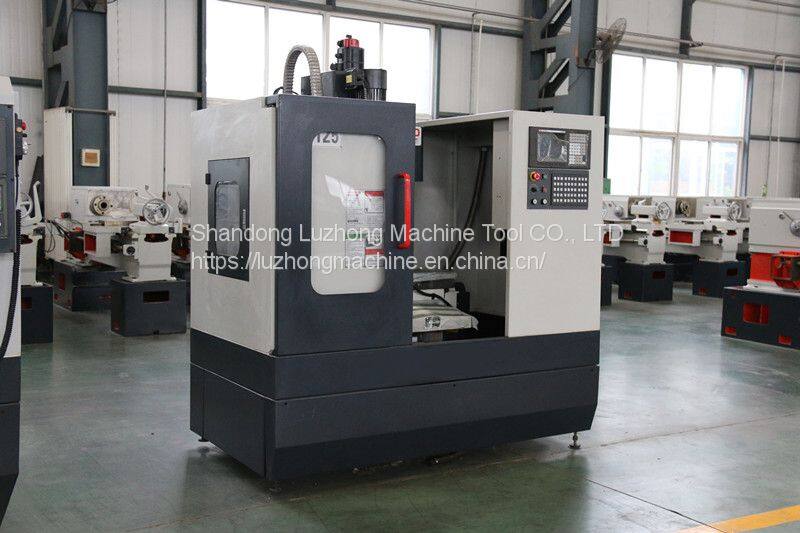

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
