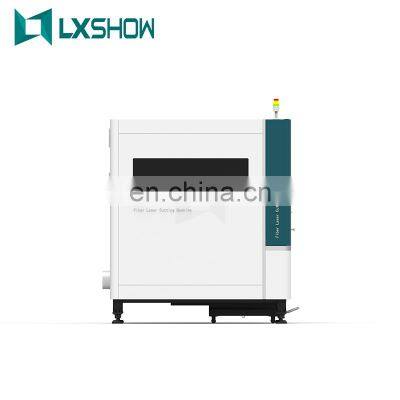

2021 LXSHOW 1390 500w 750w 1000w 1500w Ipg Raycus Max Carbon Steel Sheet Metal Cnc Small Mini Fiber Laser Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Protective Cover / Enclosed Metal Sheet Fiber Laser Cutting Machine 1530 1000W 1500W 2000W Metal Plates Fiber Laser CutterNegotiableMOQ: 1 -
2020LXSHOW Europe Quality Ipg Raycus Cnc Fiber Optic Laser Cutter for Sheet Metal / Industrial Fiber Laser Cutting Machine PriceNegotiableMOQ: 1
-
2021 LXSHOW Economical 1kw 1.5kw 2kw 3kw Fiber Laser Cutting Machine Price for Metal Stainless Steel Carbon Aluminum Iron SheetNegotiableMOQ: 1
-
2021 LXSHOW Standard 1000W 1500W 2000W 3000w 1kw 1.5kw 2kw 4kw Cnc Stainless Steel Metal Sheet Optic Fiber Laser Cutter for SaleNegotiableMOQ: 1
-
2021 LXSHOW 1530/3015 China Ipg Raycus Cnc Fiber Optic Laser Cutting Machine for 1mm 3mm 20mm Stainless Steel Sheet MetalNegotiableMOQ: 1
Why choose LXSHOW LASER
there are three reasons
Preferential price/15 years of quality supplier/3-year warranty
2021 LXSHOW 1390 500w 750w 1000w 1500w ipg Raycus max Carbon Steel Sheet metal cnc Small Mini Fiber Laser Cutting Machine
Raytools Laser Cutting Head
Optimized optical configuration and smooth and efficient airflow design.
Ball Screw Transmission
Grinding Precision Screw Transmission, improve machine precision perforamnce.
Yaskawa Servo driver and motor
Adjustment-free function, realize instant-on-use, automatic tuning function, improve performance.
1000w Fiber Laser Generator
Raycus fiber laser generator, 1500w 2000w 3000w 4000w 6000w 8000w 12000w.etc can be optional.
S&A Water Chiller
It adopts dual temperature dual control mode and can switch to intelligent temperature control mode.
Bochu Controller
A set of reasonable laser cutting solutions cut from the medium power laser cutting system, easy operation.
1 |
Model |
LXF1309M |
2 |
Laser machine cutting area |
1300x90mm |
3 |
Fiber Laser Power |
500w/750w/1000/1500W |
4 |
Laser wave length |
1064nm |
5 |
Transmission system |
High quality ball screw transmission |
6 |
X.Y axis location accuracy |
±0.01mm |
7 |
X.Y axis repeat location accuracy |
±0.01mm |
8 |
X.Y axis max moving speed |
30m/min |
9 |
Max cutting speed |
1--30m/min(it will according to metal material and laser power) |
10 |
Cutting thickness |
Detailed in the following cutting thickness |
11 |
Application Material |
Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal |
12 |
Advantages |
>Excellent beam quality >Simple , compact, electrically and optically efficient >Compatibly powerful and reliable >Maintenance free >multilingual, more than 11 foreign languages >3 years warranty . |
13 |
Gross weight |
2200KG |
14 |
Net weight |
2000KG |
15 |
Machine size |
2280*2240*1870mm |
Q1:What is the cutting size of this machine?
A:1500*3000mm For plate and tube,it also can be customized as needed.
Diameter:20-215mm,Maximum length 6M Round/Square tube.
Q2:Is the cutting speed of the tube the same as cutting plate?
A: Cutting speed is similar, the maximum cutting speed is 60m/min.
Q3:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according
to quantity.
Q4:What is your after-sale service?
A: Complete machine operation instruction manuals and videos,providing on-site training services.
7*24h, 30 technicians online technical support.
3-year warranty, parts can be replaced or repaired.
A:1500*3000mm For plate and tube,it also can be customized as needed.
Diameter:20-215mm,Maximum length 6M Round/Square tube.
Q2:Is the cutting speed of the tube the same as cutting plate?
A: Cutting speed is similar, the maximum cutting speed is 60m/min.
Q3:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according
to quantity.
Q4:What is your after-sale service?
A: Complete machine operation instruction manuals and videos,providing on-site training services.
7*24h, 30 technicians online technical support.
3-year warranty, parts can be replaced or repaired.
