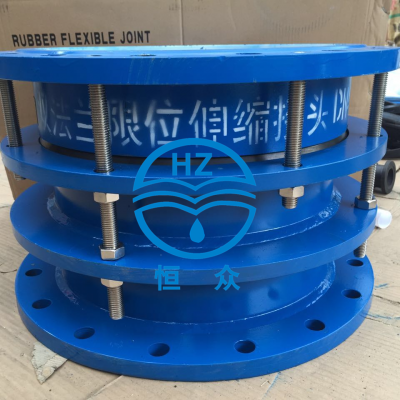

Help CenterVSSJA-2 Double Flanged Limited Sleeve Expansion Joint
Related Products
-
Double Flange Limit Telescopic Dismantling Expansion JointUS$ 65 - 4128MOQ: 50 Pieces -
Double Flange Limit Telescopic Dismantling Expansion Joint-hengzhongUS$ 65 - 4128MOQ: 50 Pieces
-
Double Flange Limit Water Pipe Dedicated Telescopic Ductile Iron Valve FittingsUS$ 62 - 4576MOQ: 50 Pieces
-
DN300 B2F Limited Type Double Flanges Dismantling JointUS$ 124 - 6942MOQ: 50 Pieces
-
VSSJA-2(B2F) Type Double Flange Limit Expansion JointUS$ 50 - 2200MOQ: 1 Piece
Double flange limit expansion joint is composed of body, sealing ring, gland, expansion pipe and other main parts. On the basis of the original performance of the loose sleeve expansion joint, a limiting device is added, and the maximum expansion is locked with double nuts. The pipeline can expand freely in the allowable expansion amount. Once it exceeds the maximum expansion amount, it will play a limiting role to ensure the safe operation of the pipeline. It is especially suitable for the connection in the pipeline with vibration or certain slope and bend
Installation of double flange limit expansion joint
Double flange limit expansion joint is suitable for connecting both sides with flange. During installation, adjust the connection length between both ends of the product and flange, tighten the gland bolts evenly in turn, and then adjust the limit nut. In this way, the pipeline can expand freely within the scope of expansion, lock the expansion, and ensure the safe operation of the pipeline. It is applicable to the pipeline with flange connection on both sides. During installation, adjust the installation length between both ends of the product and flange, raise funds diagonally and tighten the gland bolts evenly, so as to make it as a whole with a certain displacement. It is convenient to adjust according to the site size during installation and maintenance. During operation, the anti axial thrust can be transmitted to the whole pipeline. It can reduce the pressure thrust (blind force) of the connected parts and compensate the installation error of the pipeline. The double flange force transfer joint can not absorb the axial displacement. Double flange force transfer joint is mainly used for loose sleeve connection of pump, valve and other accessories.
