Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > 5cm 50mm 50x50x10mm 5010 12v dc High Rpm Hydraulic Maglev Bearing Ventilador 3d Printer Cooling Fan

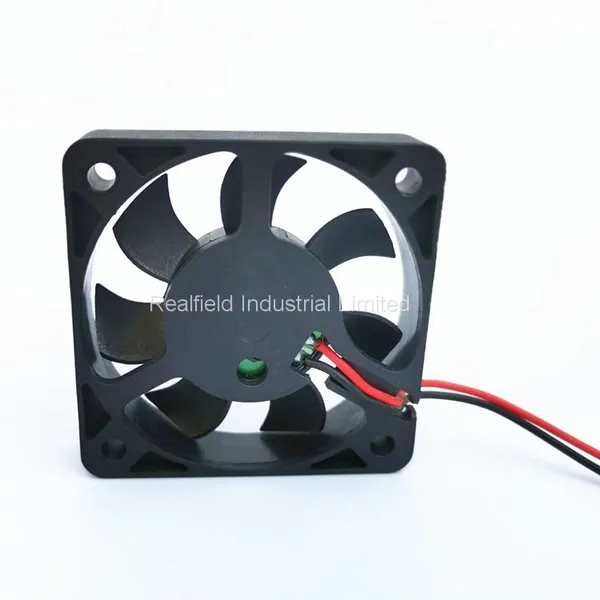

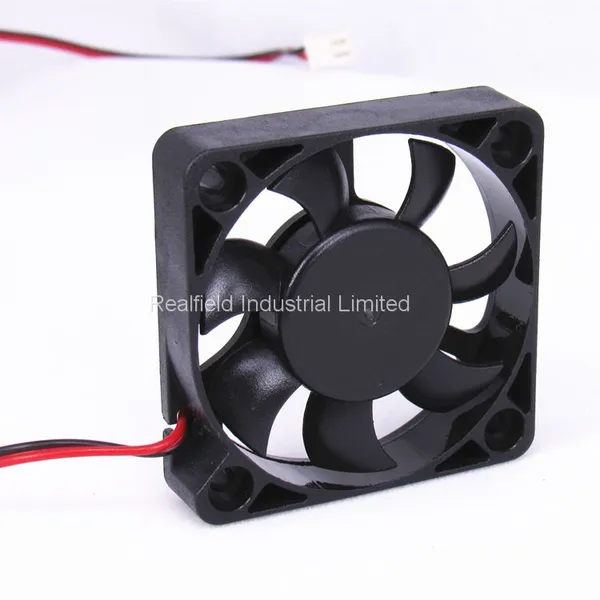

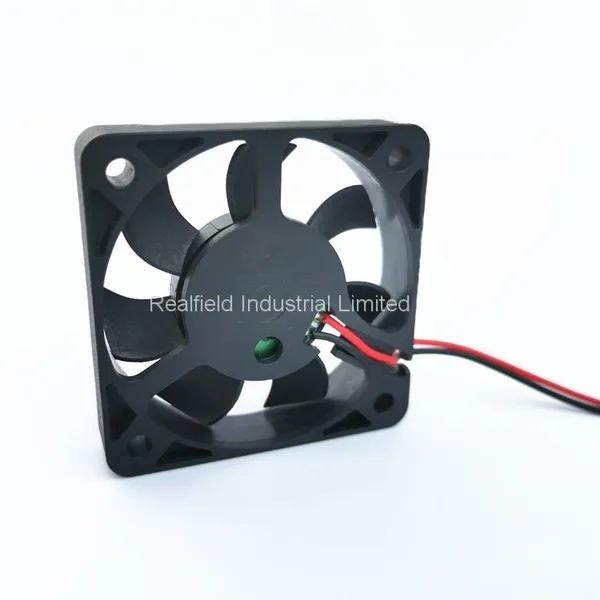

5cm 50mm 50x50x10mm 5010 12v dc High Rpm Hydraulic Maglev Bearing Ventilador 3d Printer Cooling Fan
US$ 0.92 - 1.08
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Realfield
Place of Origin:
China
Model Number:
HXD501012H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
5cm Axial Ventilateur 50mm 50x50x15mm 5015 24v dc Mini Axial High Rpm Cfm Cooling FanUS$ 0.88 - 0.98MOQ: 500 Pieces -
50mm Mini Ventilateur dc 24v 50x50x25mm 5025 Small Axial Cooling Fan VentiladorUS$ 0.88 - 0.98MOQ: 500 Pieces
-
50mm Mini Ventilator dc 12v 50x50x25mm 5025 Inverter Small Axial Cooling FanUS$ 0.88 - 0.98MOQ: 500 Pieces
-
60mm Ventilator 5v 60x60x10mm 6010 Mini Slim Axial Ventilador Cooling FanUS$ 0.92 - 1.08MOQ: 500 Pieces
-
60mm 12v 60x60x20mm 6020 High Speed Small Ventilator 3d Printer Axial Flow Cooling FanUS$ 0.92 - 1.08MOQ: 500 Pieces
Brand Name
Realfield
Place of Origin
China
Model Number
HXD501012H
Certification
CE, ROHS
After-sales Service Provided
No overseas service provided
Voltage
12v
Power
1.68W
Speed
6000RPM
Air Volume
13.6CFM
Blade Material
Plastic
Mounting
Free Standing
Electric Current Type
DC
5cm 50mm 50x50x10mm 5010 12v dc high rpm hydraulic maglev bearing ventilador 3d printer cooling fan
| Model | Bearing | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Weight | ||
| Type | ||||||||||||
| PART NO. | B/S/Y | VDC | VDC | AMP | WATT | RPM | m3/min | CFM | mmH20 | INH20 | DB-A | g |
| HXD501005L | 5 | 3.5 to 6.8 | 0.13 | 1.05 | 4000 | 0.25 | 8.87 | 2.27 | 0.09 | 21.1 | 18 | |
| HXD501005M | 5 | 3.5 to 6.8 | 0.17 | 0.85 | 5000 | 0.32 | 11.23 | 3.8 | 0.15 | 28.5 | 18 | |
| HXD501005H | 5 | 3.5 to 6.8 | 0.23 | 1.15 | 6000 | 0.38 | 13.61 | 5.89 | 0.23 | 32.6 | 18 | |
| HXD501012L | 12 | 6.0 to 13.5 | 0.07 | 0.84 | 4000 | 0.25 | 8.87 | 2.87 | 0.09 | 21.1 | 18 | |
| HXD501012M | 12 | 6.0 to 13.5 | 0.1 | 1.2 | 5000 | 0.32 | 11.23 | 3.8 | 0.15 | 28.5 | 18 | |
| HXD501012H | 12 | 6.0 to 13.5 | 0.14 | 1.68 | 6000 | 0.38 | 13.61 | 5.89 | 0.23 | 32.6 | 18 | |
| HXD501012HH | 12 | 6.0 to 13.5 | 0.22 | 2.64 | 6500 | 0.42 | 14.74 | 6.38 | 0.25 | 34.2 | 18 | |
| HXD501024L | 24 | 18 to 26.5 | 0.03 | 0.72 | 3500 | 0.21 | 8.32 | 1.8 | 0.05 | 18.5 | 18 | |
| HXD501024M | 24 | 18 to 26.5 | 0.05 | 1.2 | 4000 | 0.25 | 8.87 | 2.27 | 0.09 | 21.1 | 18 | |
| HXD501024H | 24 | 18 to 26.5 | 0.08 | 1.92 | 6000 | 0.38 | 11.23 | 3.8 | 0.23 | 28.5 | 18 | |
| HXD501024HH | 24 | 18 to 26.5 | 0.12 | 2.88 | 6500 | 0.42 | 13.61 | 5.89 | 0.25 | 32.6 | 18 | |
