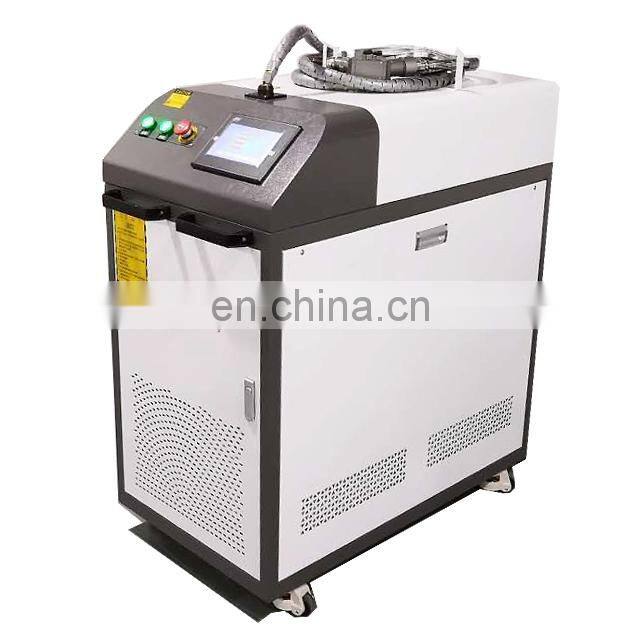

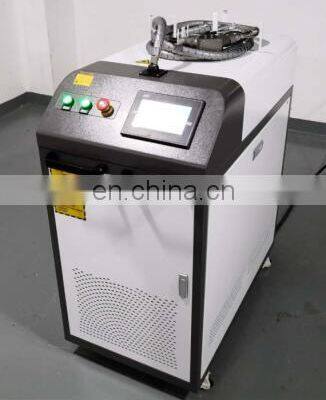

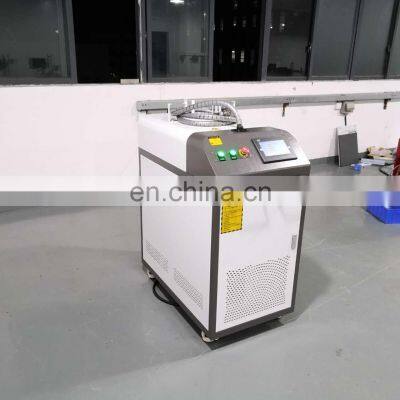

Easy to operate 1000W fiber laser welding machine price handheld welding equipment

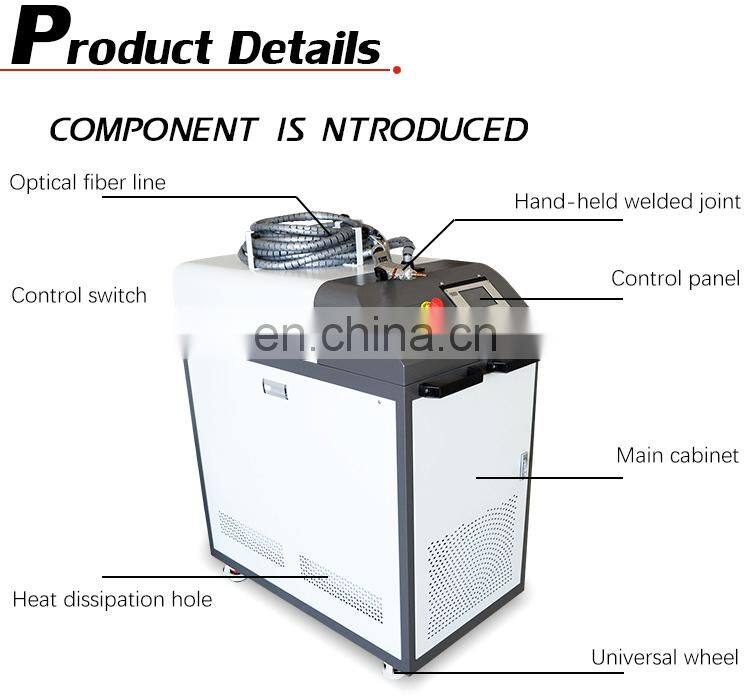

| The optical fiber transmission laser welding machine is a laser welding equipment that couples a high-energy laser beam into an optical fiber. After long-distance transmission, it is converted into parallel light by a collimator and focused on the workpiece for welding. This welding machine adopts a hand-held design to ensure 3d welding without dead ends, convenient operation and low noise. It is one of the best choices for welding machines. |
Main Feature
|
1.Laser welding is mainly for the welding of thin metal sheets within 3MM, which makes up for the trouble of traditional argon arc welding technology for hot-melting, easy deformation and post-processing of thin-plate welding.
2.The laser is in the continuous light-emitting mode, and the welding surface is smooth. Through the self-developing system, the continuous light can be modulated, and the frequency can be set from 5 to 200HZ.
4.You can quickly learn how to operate, and save you expensive technical labor costs! The laser welding operation is simple and convenient. The operation on the machine solves the problem that the technical workers are difficult to recruit and the technicians are paid high.
|
Main parameters
| Product name | 1KW fiber laser welding machine for metal welding |
| Machine model | TPW-1000w |
| Max laser power | 1000W |

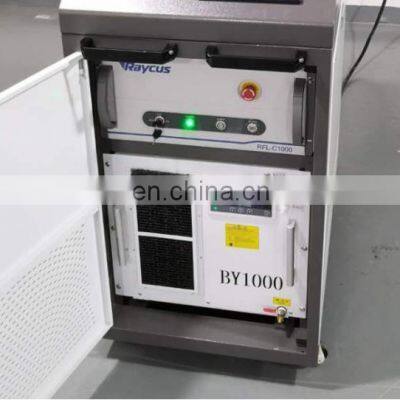

| Laser source | Raycus brand from China |
| Laser wavelength | 1070nm |
| Spot diameter | 5-7mm |
| Welding speed range | 1~120mm/s |
| Welding gap requirements | ≤0.5mm |
| Welding thickness | <2.5mm stainless steel <1.5mm Carbon steel 1mm aluminum |
| Working environment temperature range | 15~35°C/X< 70% without condensation |

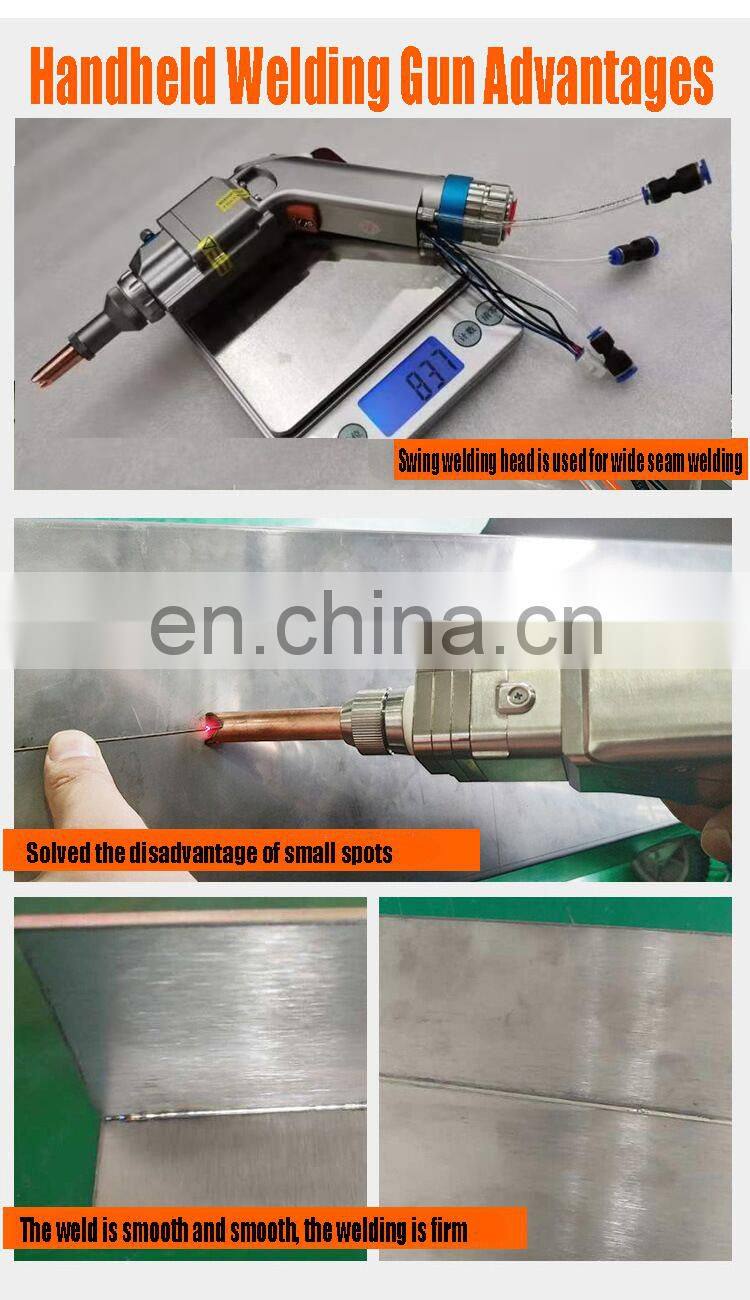

| Weld head operating mode | Normal / hand-held swing welding mode |
| Power Consumption of the Whole Machine | 6KW |
| Cooling mode | Water cooling |
| Power requirements | Three-phaseAC380V±10%/50Hz/40A |

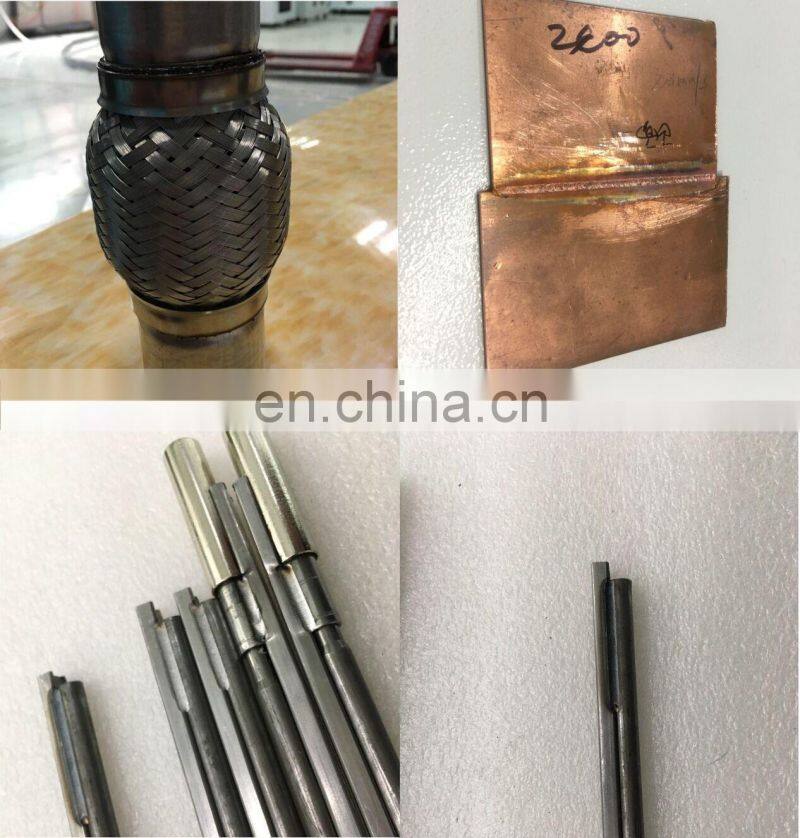

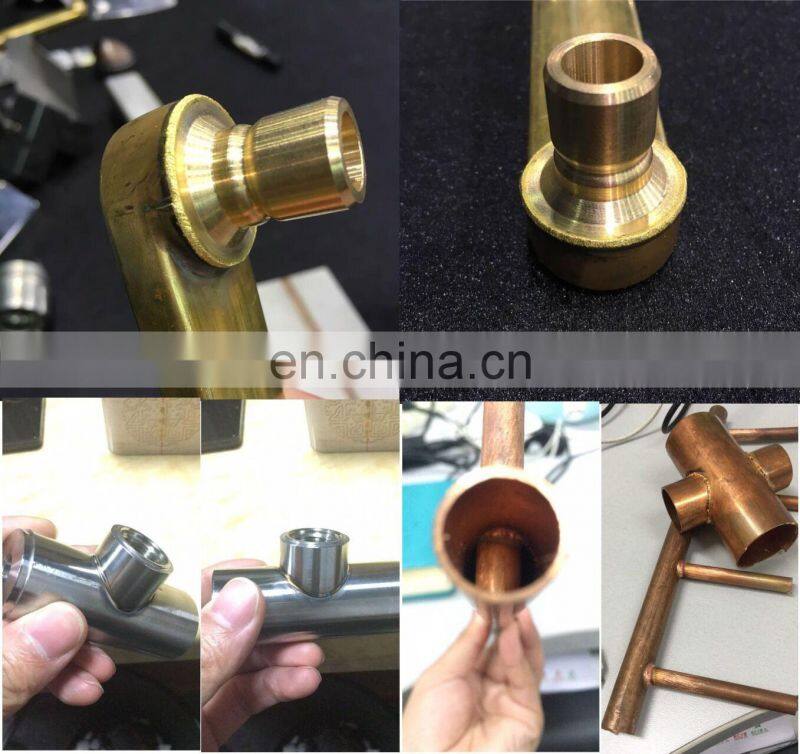

| Fiber Laser Welding Machine Applicable Materials: 500W 1000W 1500W 2000W Fiber laser welding machine is mainly used for rapid welding of various metal materialssuch as carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, pickling board, galvanized sheet, copper and so on. Fiber Laser Welding Machine Applicable Industries: Fiber laser welding machine suitable for welding of kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode (triode), aluminum alloy, laptop shell, mobile phone battery, door handle, mould, electric apparatus fittings, filter, nozzle, stainless steel products, golf head, zinc alloy artworks.It can weld point, straight line, circle, square or any plane graphs drawn by AUTOCAD; weld vertical track. |
| 1. We will use standard wooden boxes to transport the goods. 2. We use soft materials to pack the machine inside the wooden box. We will deliver the goods according to your requirements. 3. We have three modes of transportation. Sea, land, and air. |
