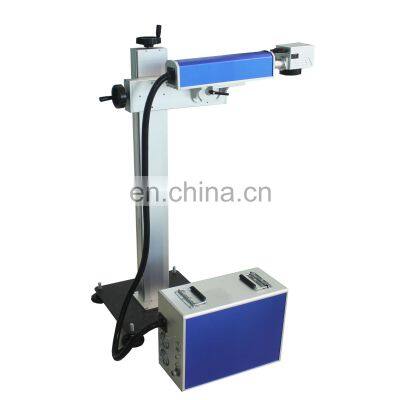

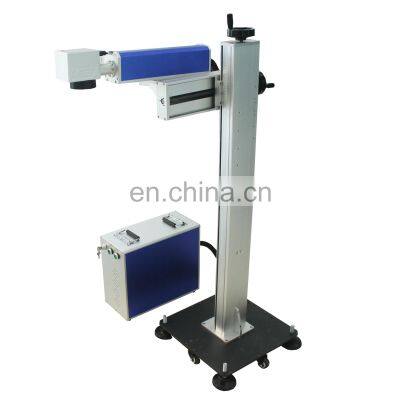

Industrial Professional Flying Fiber Co2 UV Laser Marking Machine for Metal and Plastic
| Machine Description |
|

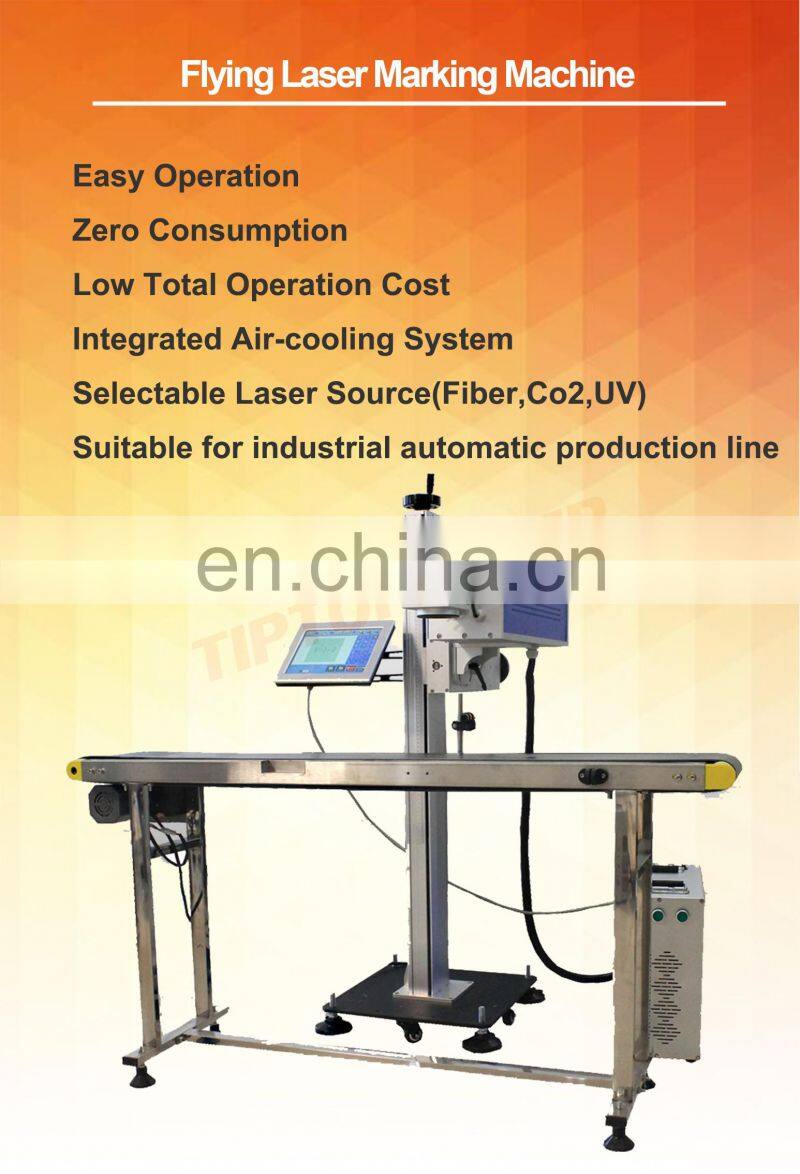

Flying Laser Marking Printing Machine is a laser marking printer especially matched for the automatic production line for flying printing & marking for the date codes or barcodes. Compared to the traditional inkjet printer, the Flying Laser marking printer has zero consumption of any materials, no need for ink, no pollution, no noise, energy-saving, and environmental protective.
Our TIPTOPLASER Flying Laser Marking Printer can be equipped with different kinds of laser sources (Fiber, Co2, or UV) and printer systems. It can be widely used in food and beverage, pharmaceutical, cosmetic, tobacco, leather industry. Our machine offers an efficient, high-quality laser marking at a desirable price/performance ratio. The system comes with an integrated laser marker and smart operation technology. The machine is developed for efficient laser marking of metals and plastics along with the industrial production chain.
For the application, the flying fiber laser machine could be used for metal and nonmetal flying marking combined with various kinds of production lines. There is another Co2 laser source online laser marking printer available, especially for nonmetal materials’ online marking. |
| Technical Parameter |
|
Model |
TPF-20W |
|
Working area |
110*110(200*200/300*300)mm |
|
Power |
20W (Optional 30w 50w 60w) Raycus |
|
Max Marking Speed |
300characters/s Height of character 1mm |
|
Wavelength |
1064nm |
|
F-θ focus lens head |
F =160mm |
|
Operation Software |
EZCAD |
|
Repetitive frequency |
20kHz-60kHz |
|
Cooling mode |
Air Cooling |
|
Pulse width |
<100ns |
|
Peak power |
25-80KW/10KHz |
|
Marking speed |
600-1000 character/second |
|
Mini line width |
0.02mm |
|
Location accuracy |
<10urad |
|
Graphic Format Supported |
PLT,BMP,JPG,PNG, TIP,PCX,TGA,ICO,DXF,etc |
|
Power supply |
110V-220V±10%/50Hz |
|
Power consumption |
Less than 800W |
|
Up-down |
Electrical |
|
Auto Focus |
Yes |
|
Open door protection system |
Yes |
|
Rotary |
Optional |
|
Laptop |
Optional |
|
Working Temperature |
-20℃ -40℃ |
|
Weight |
150kg |

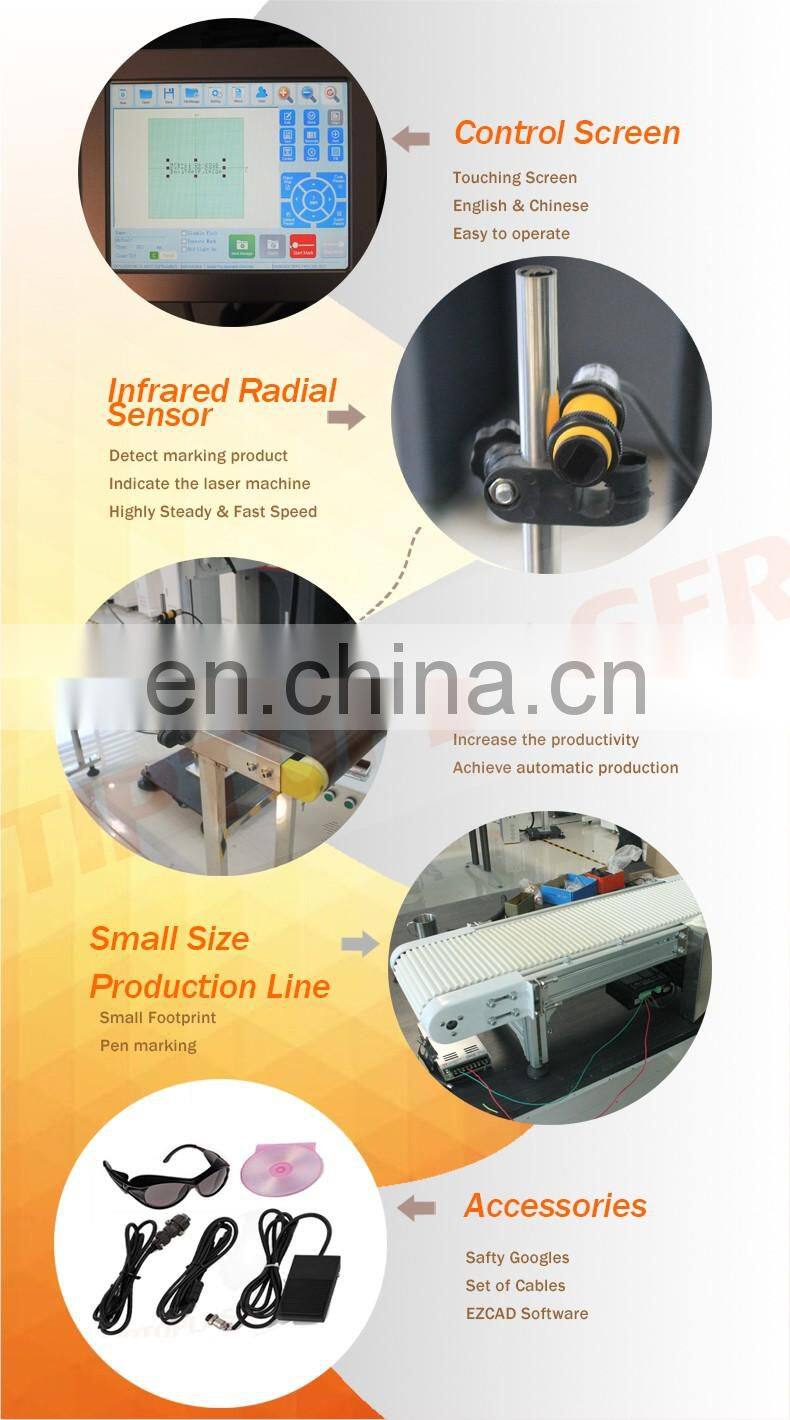

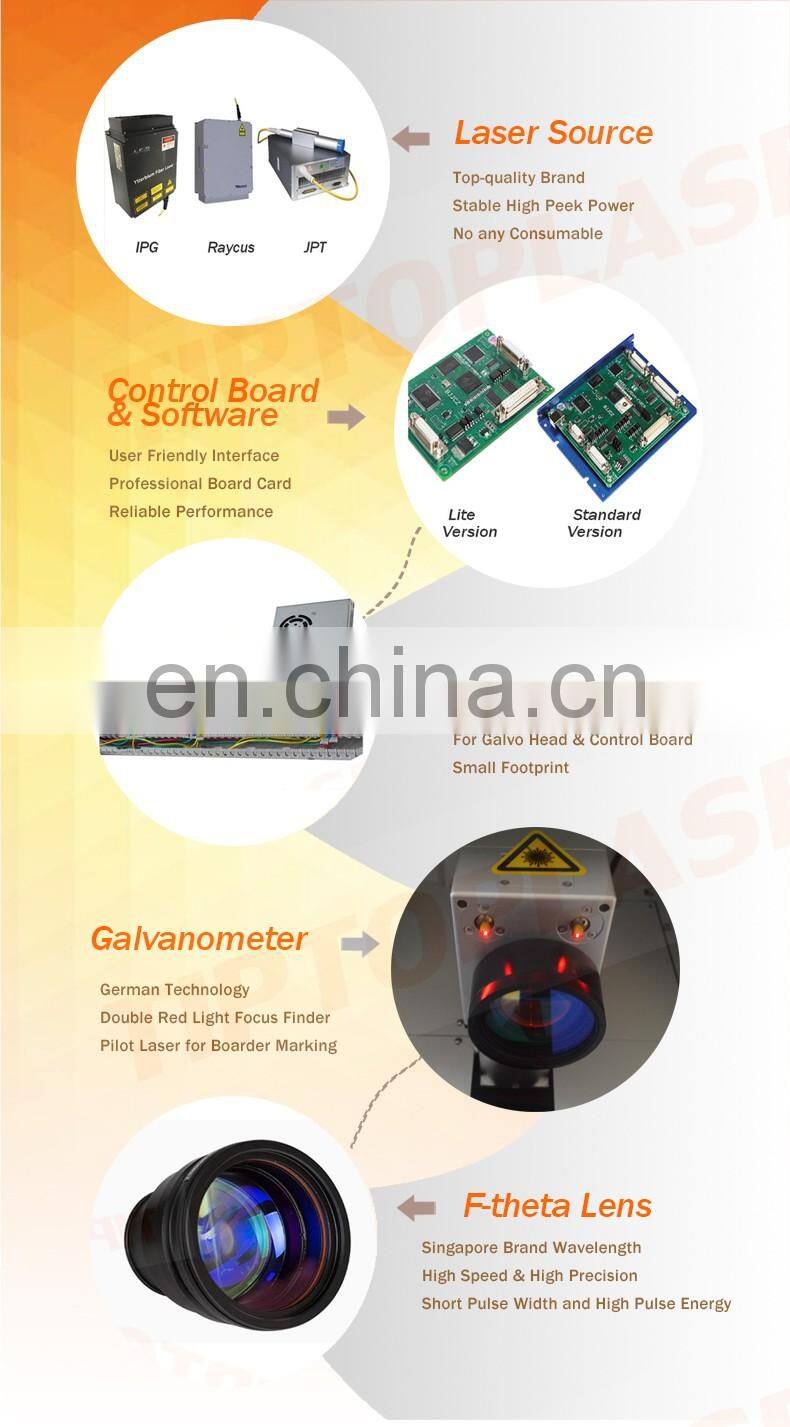

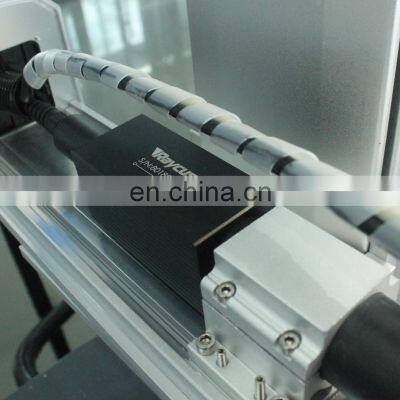

| Machine Details |
| Samples |
|
Applicable Materials
All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.
Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material.
Applicable Industries
The machine can be widely used in food and beverage, pharmaceutical, tobacco, leather, package, lighting, accessories, cosmetics, electronics, kitchen & bathroom hardware, shells of cell phone and watches, medical apparatus and instruments, tubular product, cable, plastic, cable, and other industries.
Jewelry & Accessories: Rings, Pendant, Bracelet, Necklace, Sunglasses, Watches, etc. |
|
Product Catalogs |
| Our Services |
|
Product Advantage:
Training Services
Online Services
Warranty Services
|
| Packaging & Shipping |
|
Trade terms : FOB / CIF / CIP / DDP / EXW ETC ; Delivery time: 3-10 days ; Packaging Details: Three Layers
After the machine shipped, the documents, like B/L, Packing List, Commerical Invoice, Commerical Contract, etc. will be ready for you. According to your requirement, we also can provide ISO9001, CE Certificate of Origin for the purpose of picking up the machine and customs clearance at the destination port. |
| FAQ |
|
Q: If some problems happened to this machine during the warranty period, what should I do?
Q: How could I get the sample and check the quality? A: The free marking sample is available for our clients to check the quality of marking. Just contact our sales representative and send us the design that you would like to print, the free marking sample will be provided for you.
Q: Could the machine be customized according to my requirements?A: Yes, for sure. Our professional technical team with rich experience will modify the machine based on your needs. Our goal is to support your business and make you satisfied.
Q: What are your terms of payment?
|
