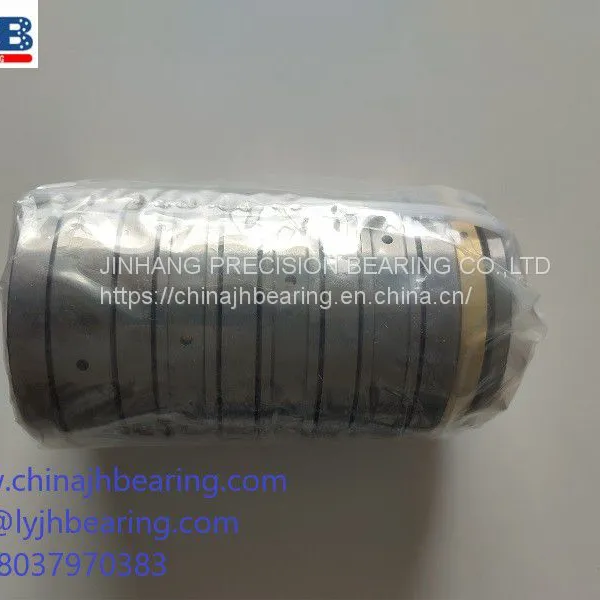

T3AR33105 large extruder gearbox tandem bearing made in china 33x105x115mm

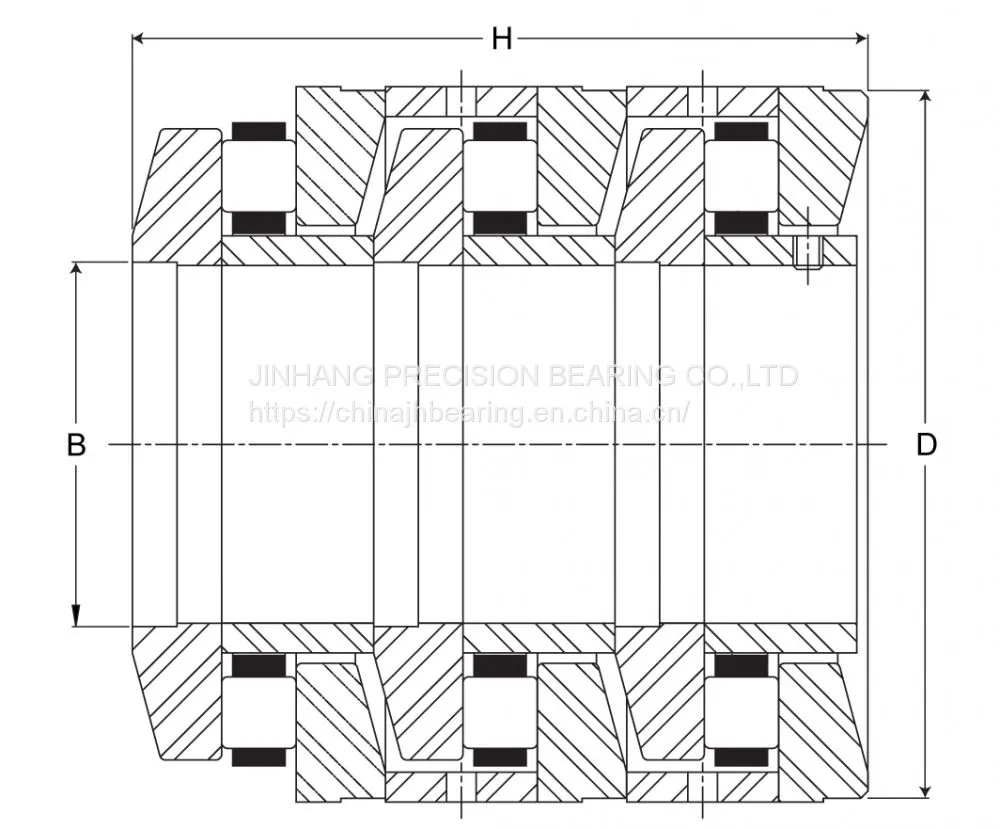

Tandem bearingsT3AR33105 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T3AR33105 with size 33x105x115mm, the inner diameter:33 mm, the outer diameter:105mm, the total height:115mm
Tandem bearing old code |
Basic size unit(mm) |
Basic load rating Unit (KN) |
material |
|||
Inner dia |
Outer dia |
Height |
Cr |
Cor |
||
T3AR33105 |
33 |
105 |
115 |
416 |
1916 |
Steel chrome |
Application of tandem bearings
When using tandem bearings, the following recommendations should be adhered to:
1. Preload: 1% of the dynamic basic load rating. The dynamic basic load rating of each tandem bearing . Figures not listed will be provided by out institute on request.
2. Radial guidance: full complement cylindrical roller bearings or needle roller bearings can be used.
3. Eliminate tilting: the supporting parts must be machined to eliminate any tilting.
4. Mounting tolerances: recommended the following mounting tolerances: shaft f6 and housing bore F7.
5. Lubrication: tandem bearings must always be lubricated by oil circulation.
Tandem bearings have proven effective principally in gearboxes for single and twin screw extrudes in the rubber and plastics industry.
Other possible applications include:
■ deep hole drilling equipment
■ friction welding machines.
