T3AR2468 customized large gearbox tandem bearing for extruder machine 24x68x70mm
Tandem bearings T3AR2468 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T3AR2468 with size 24x68x70mm, the inner diameter:24 mm, the outer diameter:68mm, the total height:70mm
Tandem bearing old code |
Basic size unit(mm) |
Basic load rating Unit (KN) |
material |
|||
Inner dia |
Outer dia |
Height |
Cr |
Cor |
||
T3AR2468 |
24 |
68 |
70 |
161 |
772 |
Steel chrome |
Tandem bearings offer an optimum solution wherever the following requirements apply:
■ small radial design envelope
■ high axial forces
■ long operating life
■ low frictional energy.

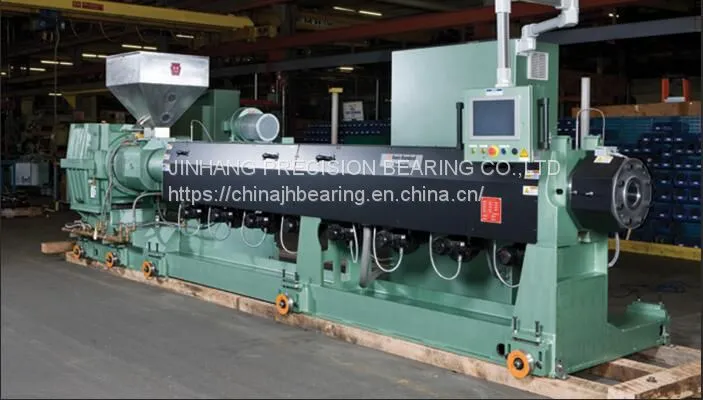

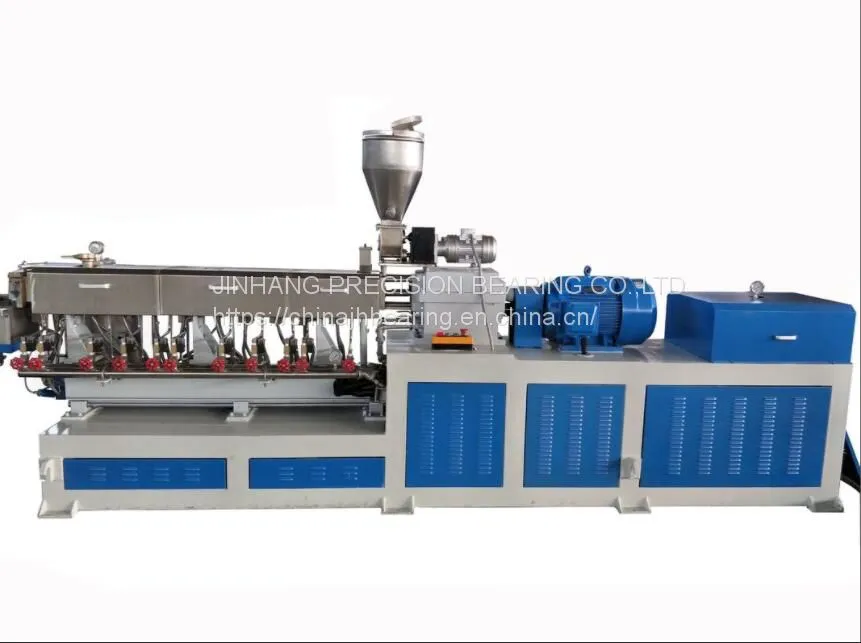

Tandem bearings have proven effective principally in gearboxes for single and twin screw extrudes in the rubber and plastics industry.
Other possible applications include:
■ deep hole drilling equipment
■ friction welding machines.
